Before VIN 343314

OIL PRESSURE SWITCH CHECK

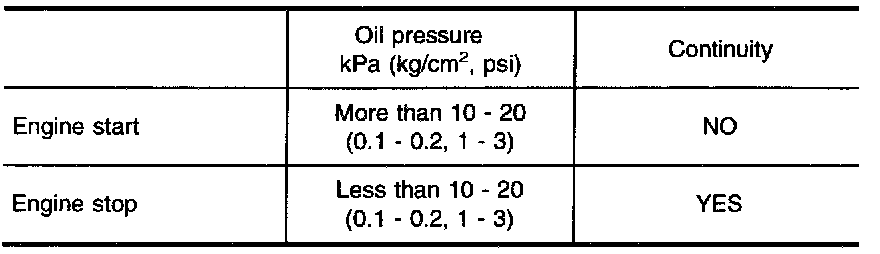

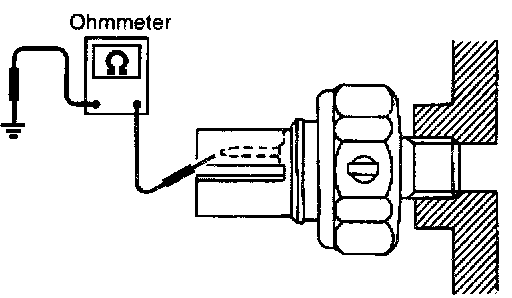

Check the continuity between oil pressure switch terminal 1 and body ground.





DIODE CHECK

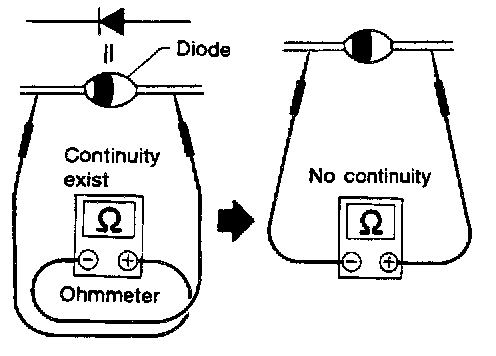

- Check continuity using an ohmmeter.
- Diode is functioning properly if test results are as shown in the figure at left.

NOTE: Specification may vary depending on the type of tester. Before performing this inspection, be sure to refer to the instruction manual of the tester to be used.
- Diodes for warning lamps are built into the combination meter printed circuit.
- For diode location, refer to Combination Meter.
