Before VIN 343314

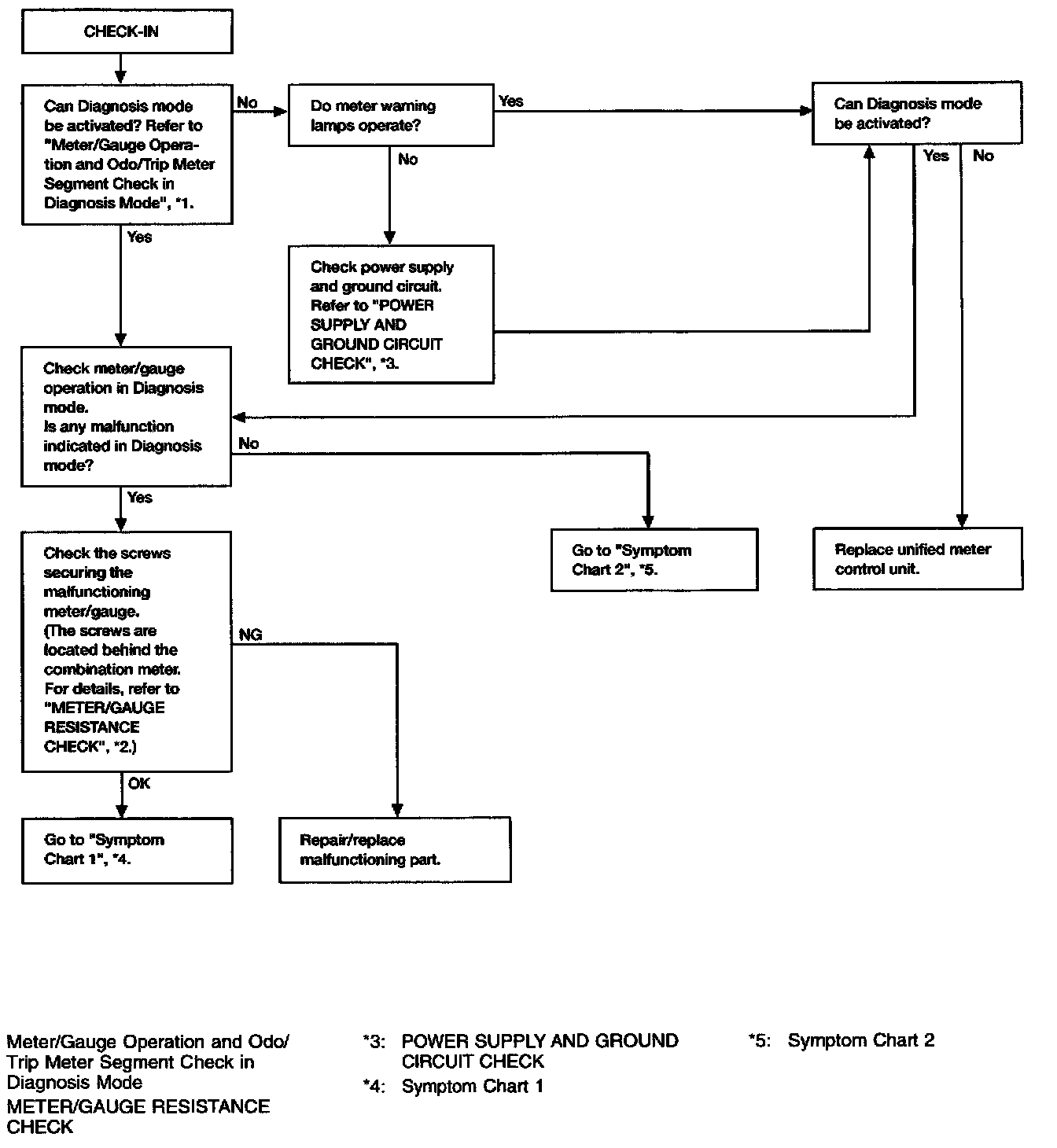

PRELIMINARY CHECK

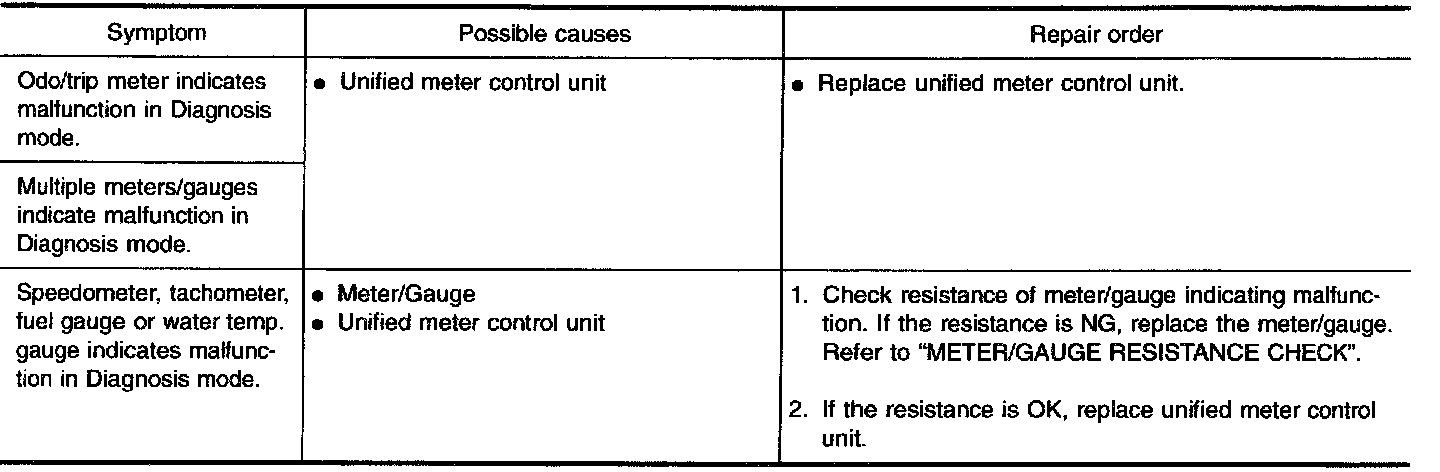

SYMPTOM CHART 1 (Malfunction is Indicated in Diagnosis Mode)

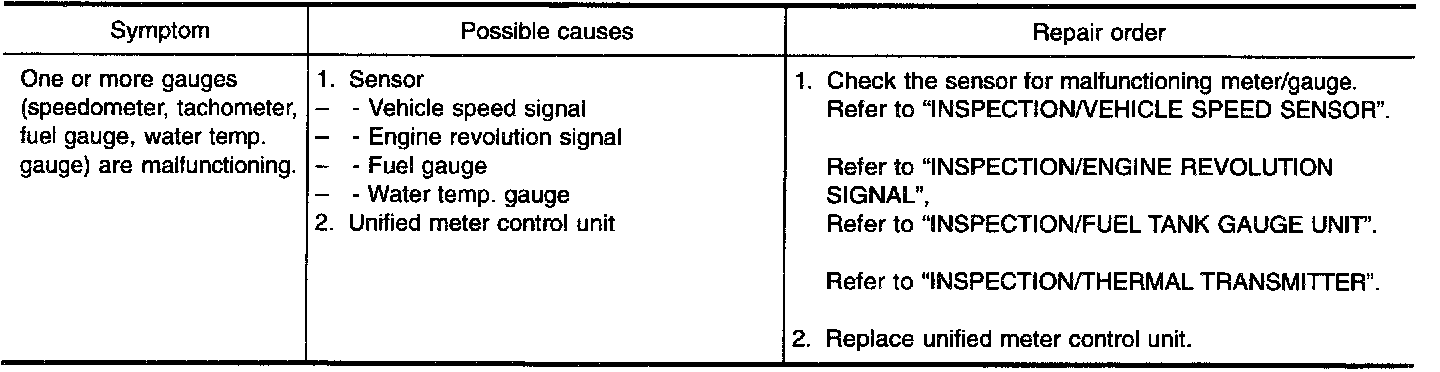

SYMPTOM CHART 2 (No Malfunction is Indicated in Diagnosis Mode)
Before starting trouble diagnosis, perform PRELIMINARY CHECK.

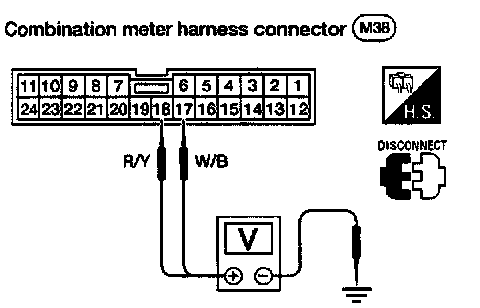

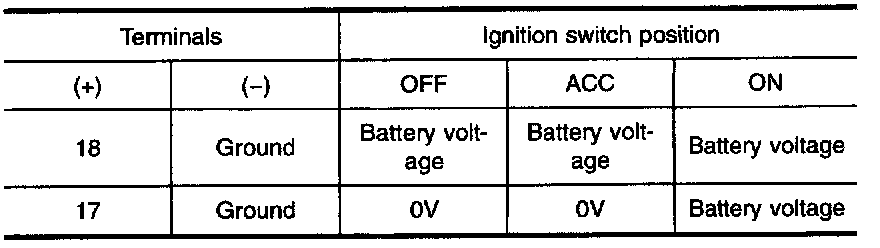

Power Supply Circuit Check
If NG, check the following.
- 7.5 A fuse [No. 28, located in fuse block (J/B)]
- 10 A fuse [No. 11, located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter

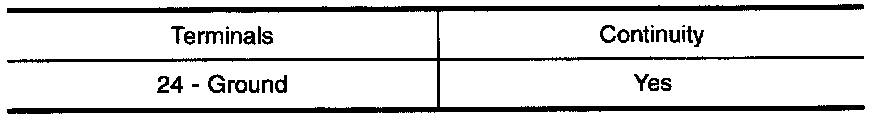

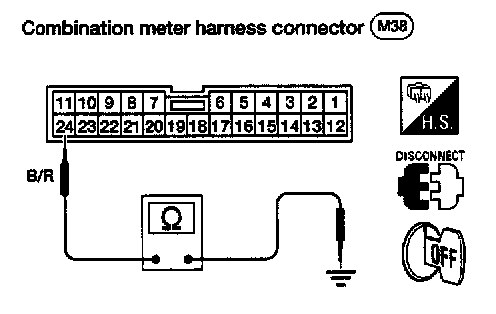

Ground Circuit Check

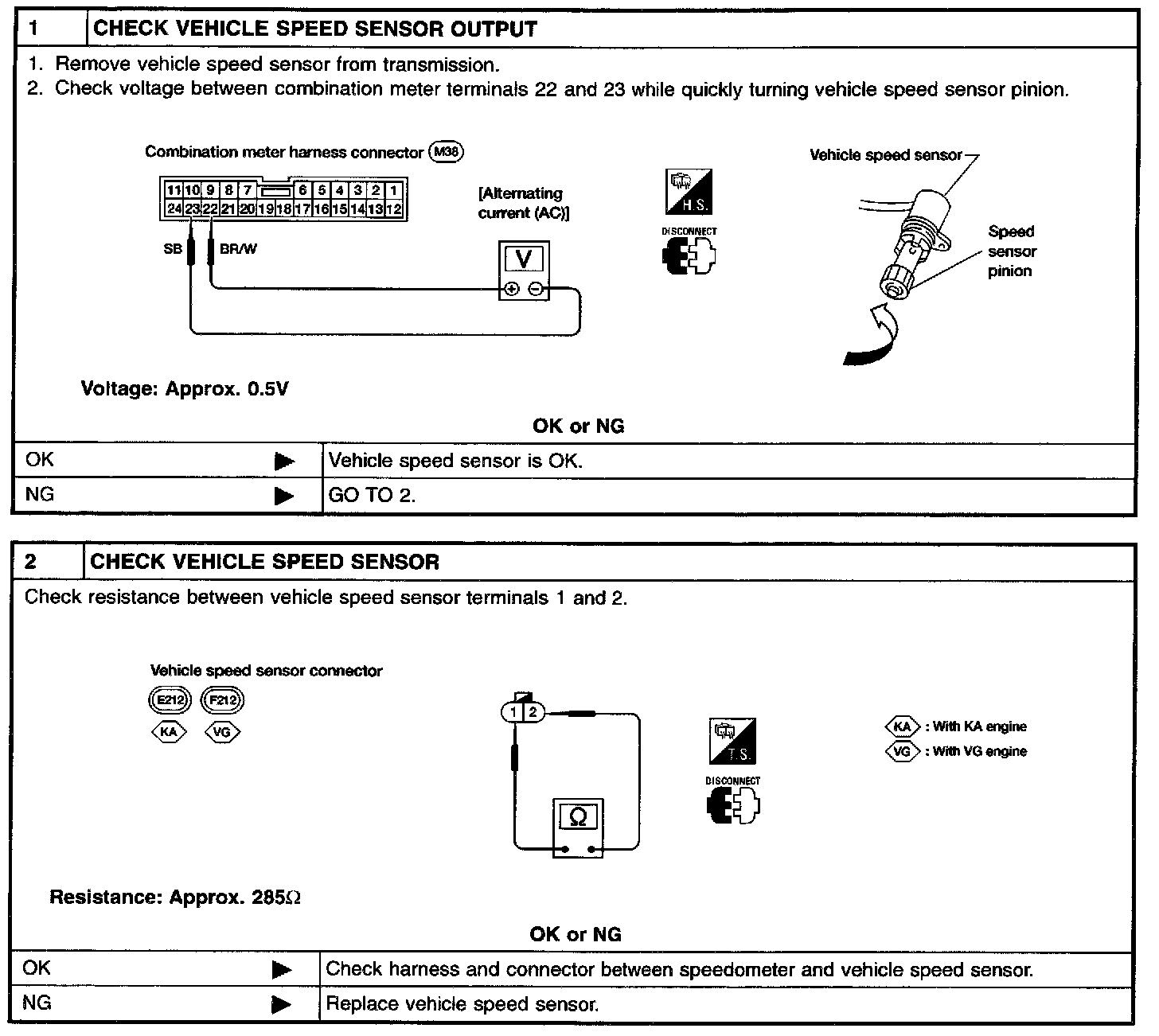

INSPECTION/VEHICLE SPEED SENSOR

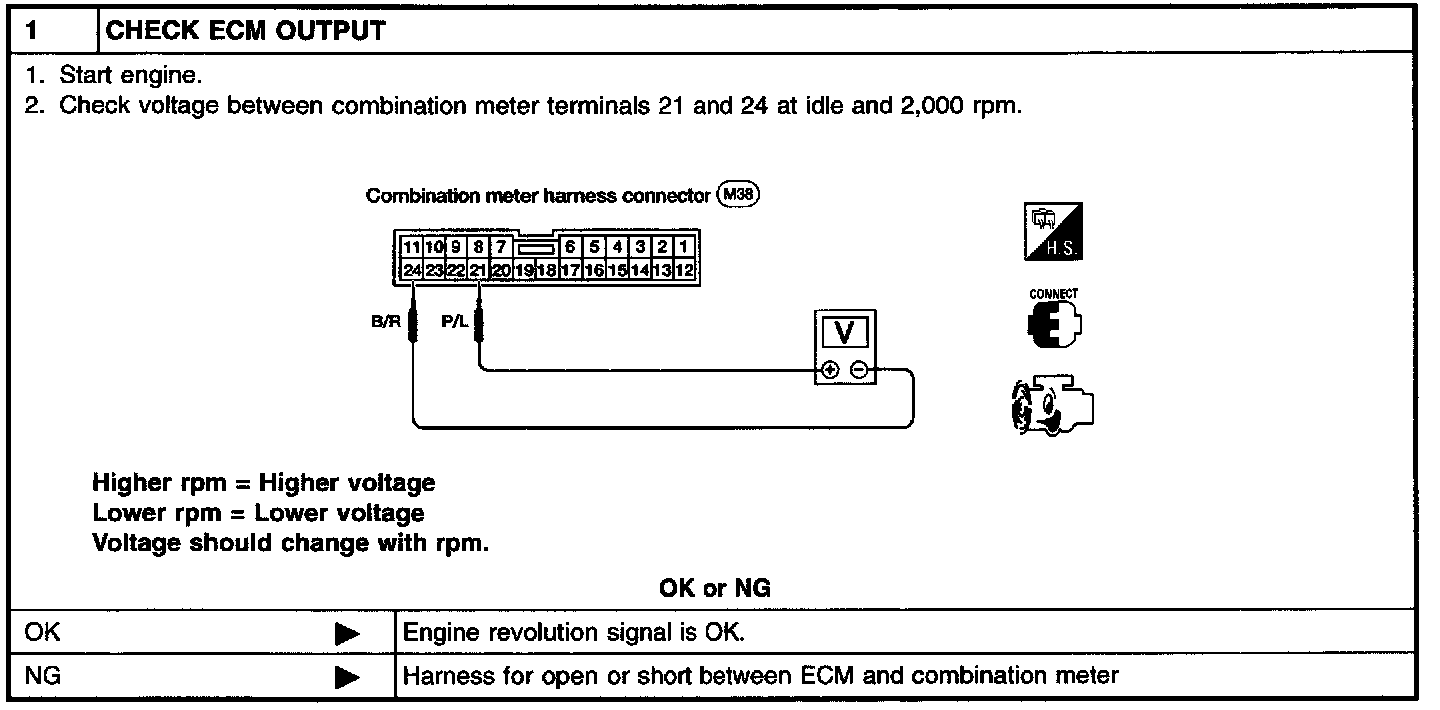

INSPECTION/ENGINE REVOLUTION SIGNAL

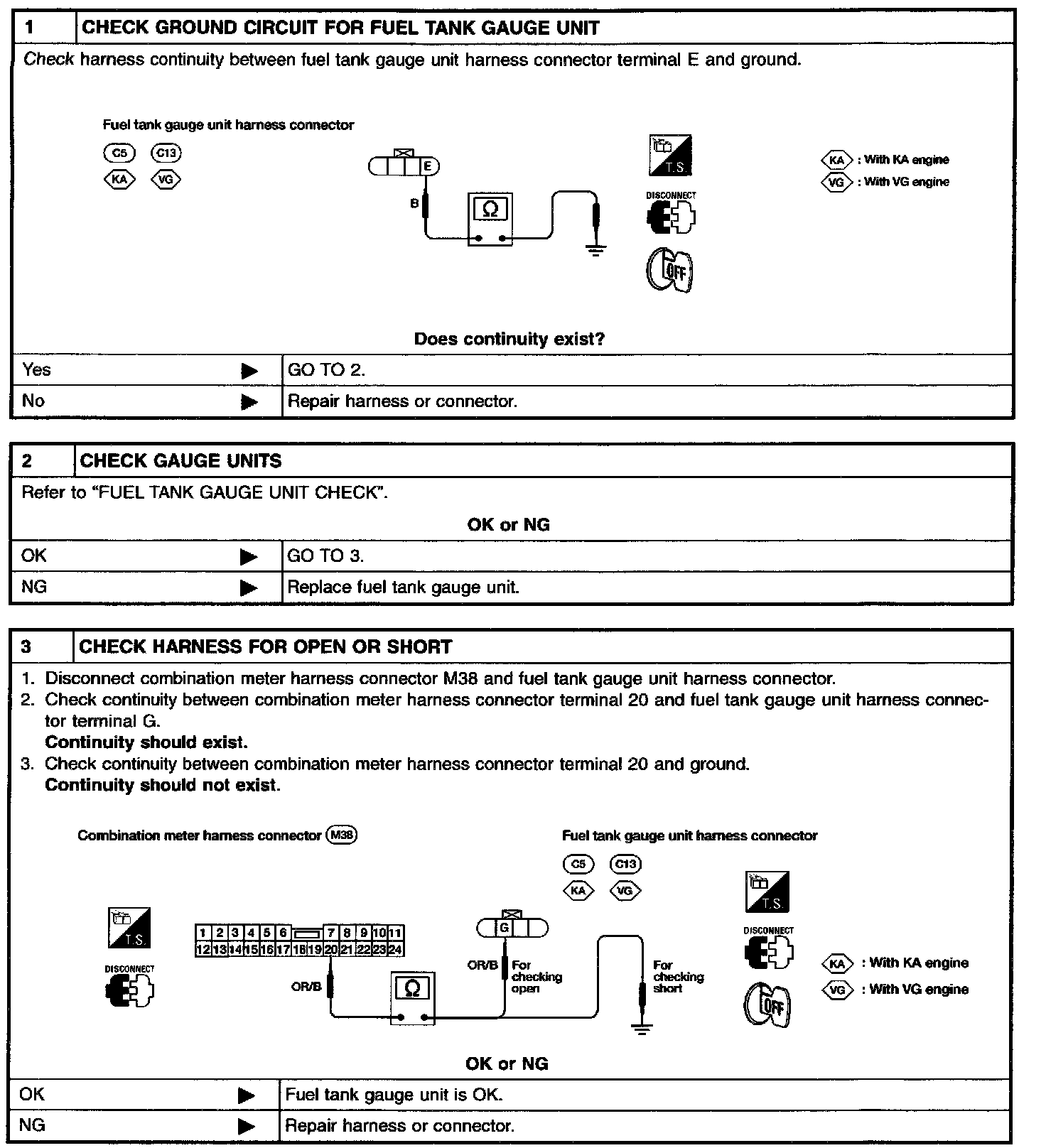

INSPECTION/FUEL TANK GAUGE UNIT




INSPECTION/THERMAL TRANSMITTER
