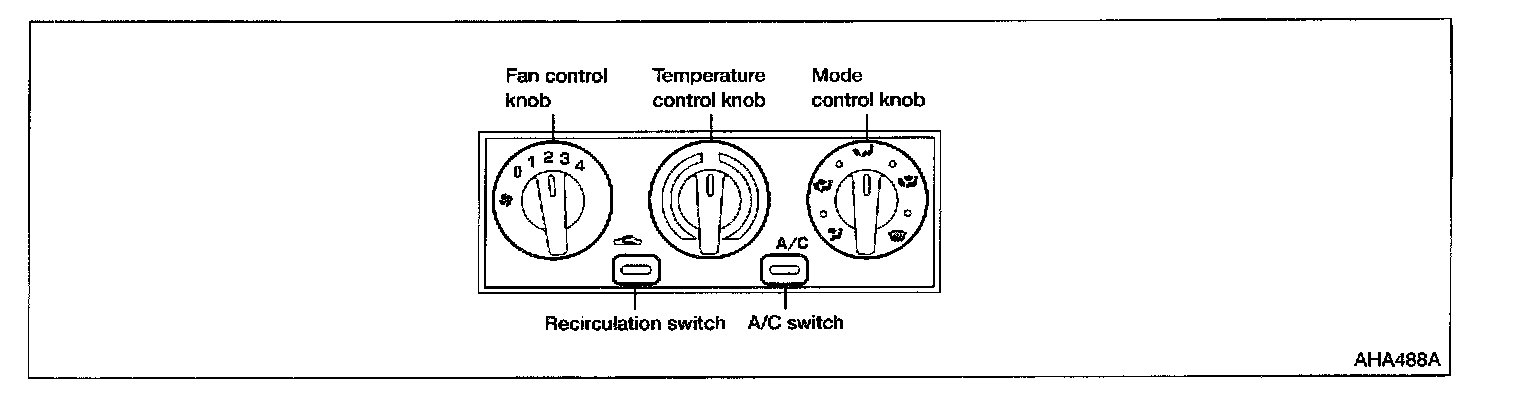

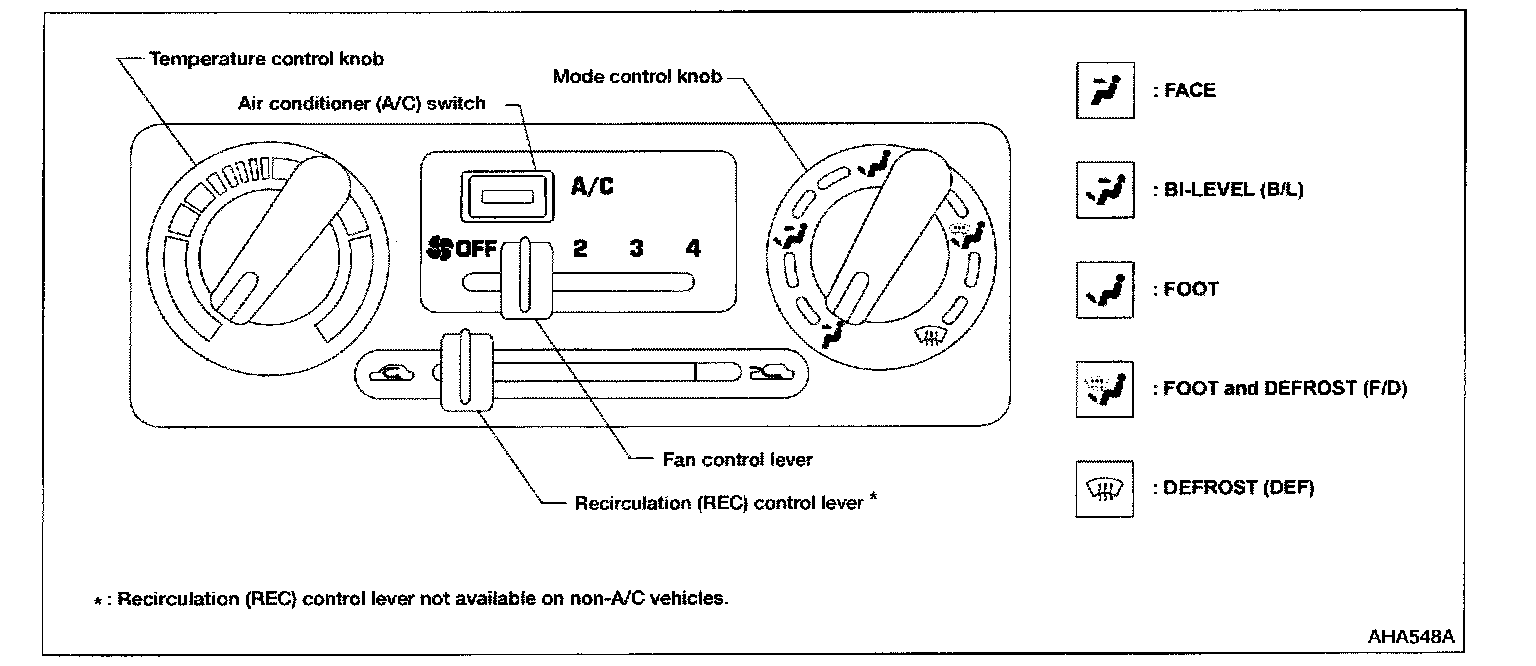

Control Operation

FAN CONTROL KNOB (LEVER)
This knob (lever) turns the fan ON and OFF and controls fan speed.

MODE CONTROL KNOB
This knob controls the direction of air flow through the front discharge outlets.

TEMPERATURE CONTROL KNOB
This knob allows adjustment of the outlet air temperature.

RECIRCULATION (REC) SWITCH (LEVER)
OFF position: Outside air is drawn into the passenger compartment.
ON position: Interior air is recirculated inside the vehicle. The indicator lamp will also light.

AIR CONDITIONER SWITCH
The air conditioner switch controls the A/C system. When the switch is depressed with the fan ON, the A/C relay is activated by the ECM allowing compressor operation. The indicator lamp will also light.The air conditioner cooling function operates only when the engine is running.
