Component Tests and General Diagnostics

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH
Symptom :
- Magnet clutch does not engage when A/C switch and fan switch are ON .

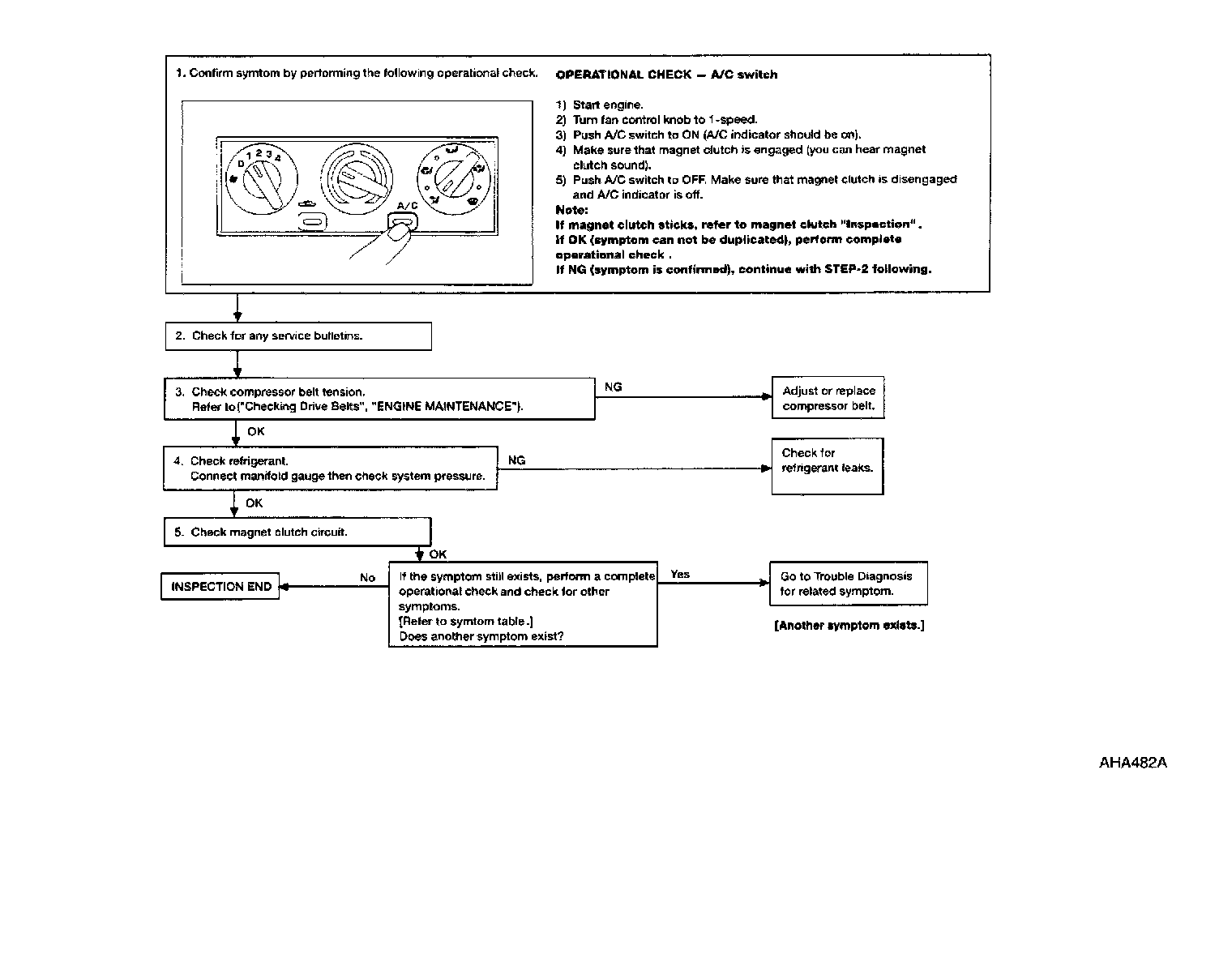

Inspection Flow

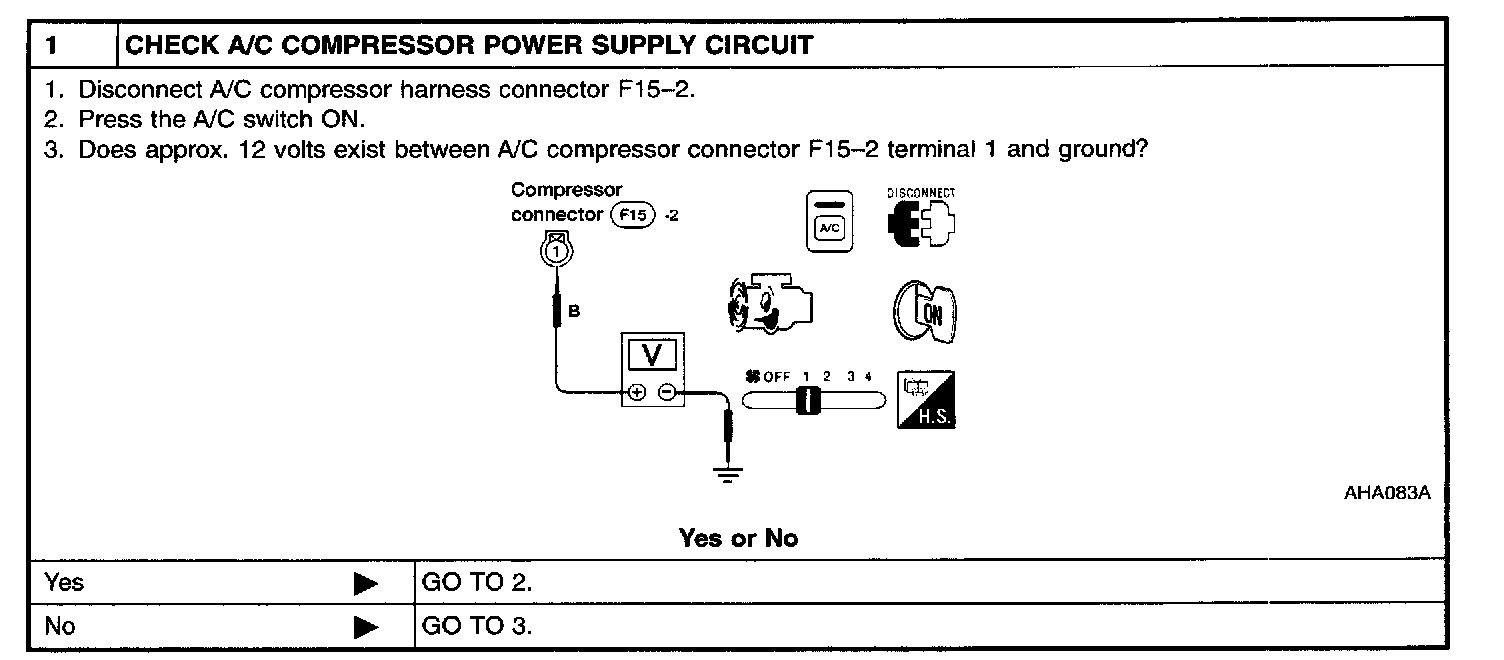

Step 1:

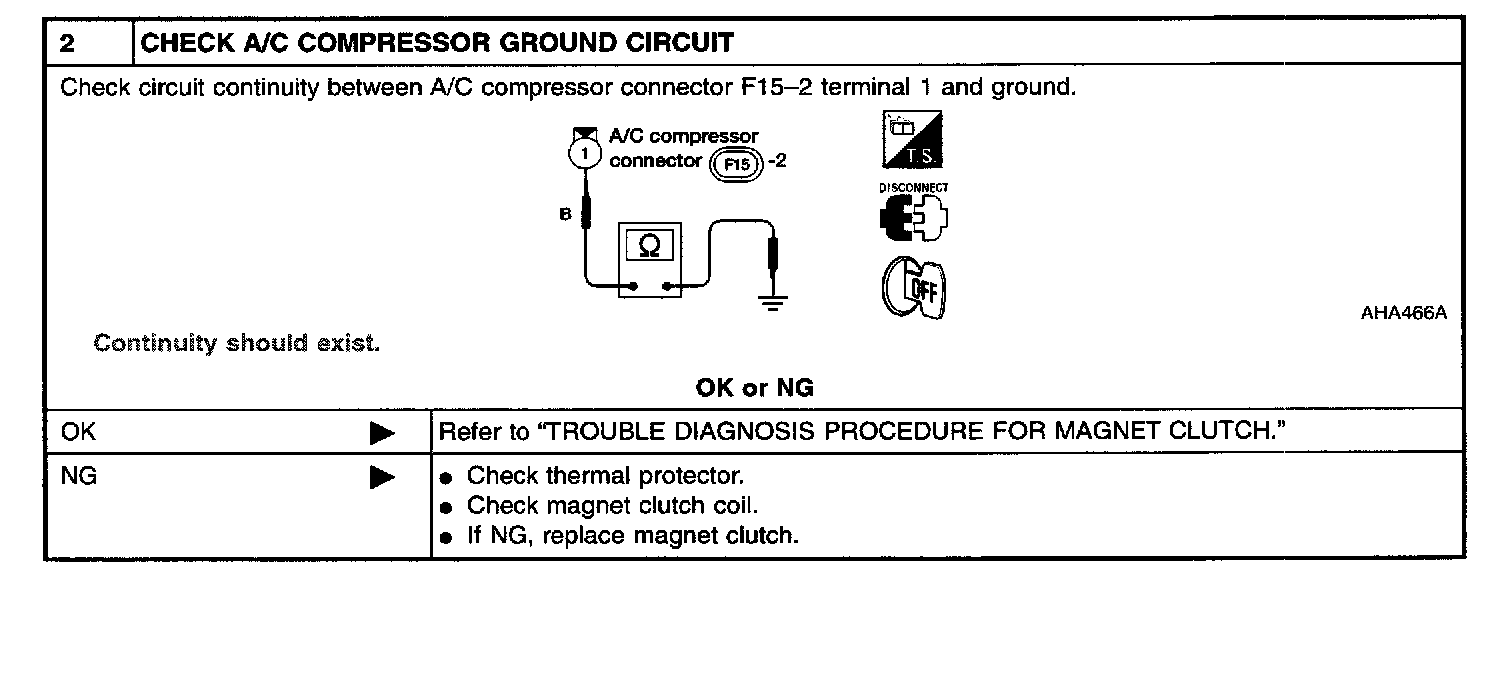

Step 2:

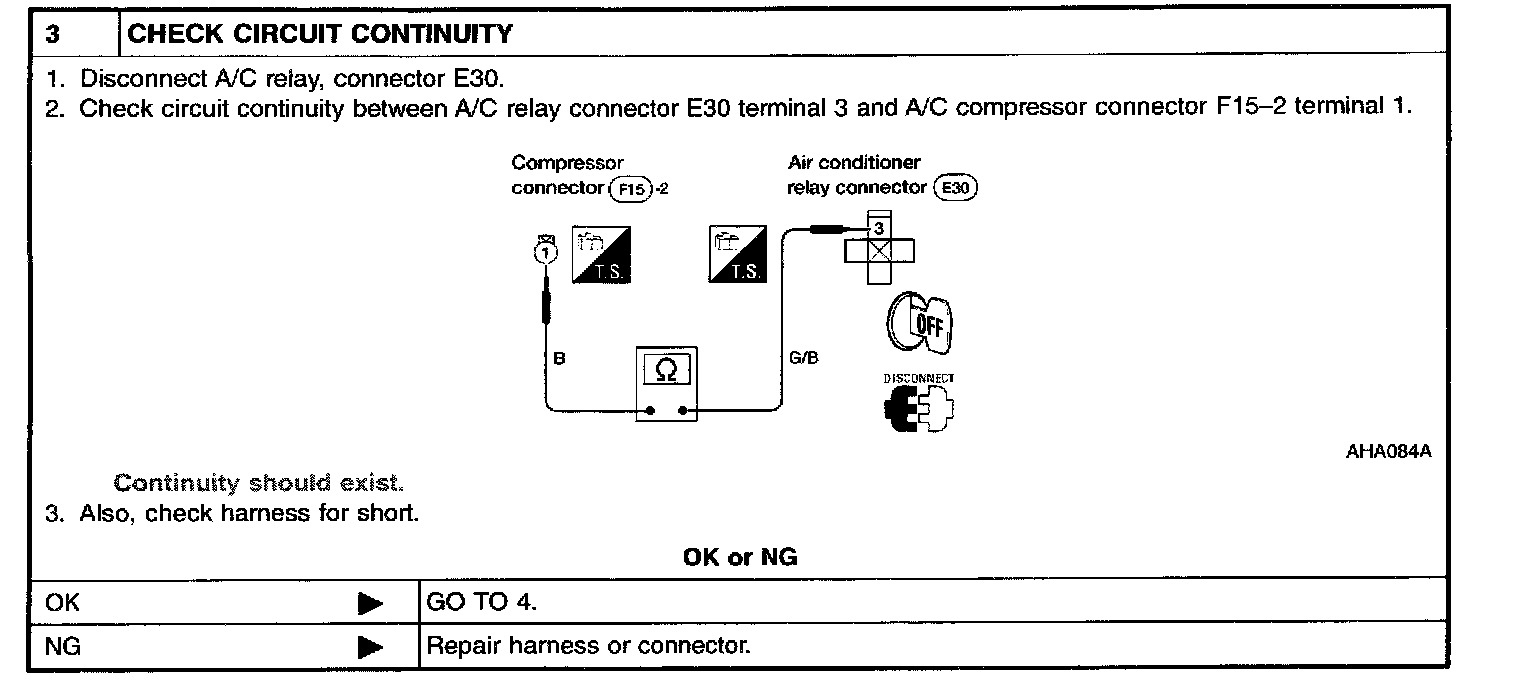

Step 3:

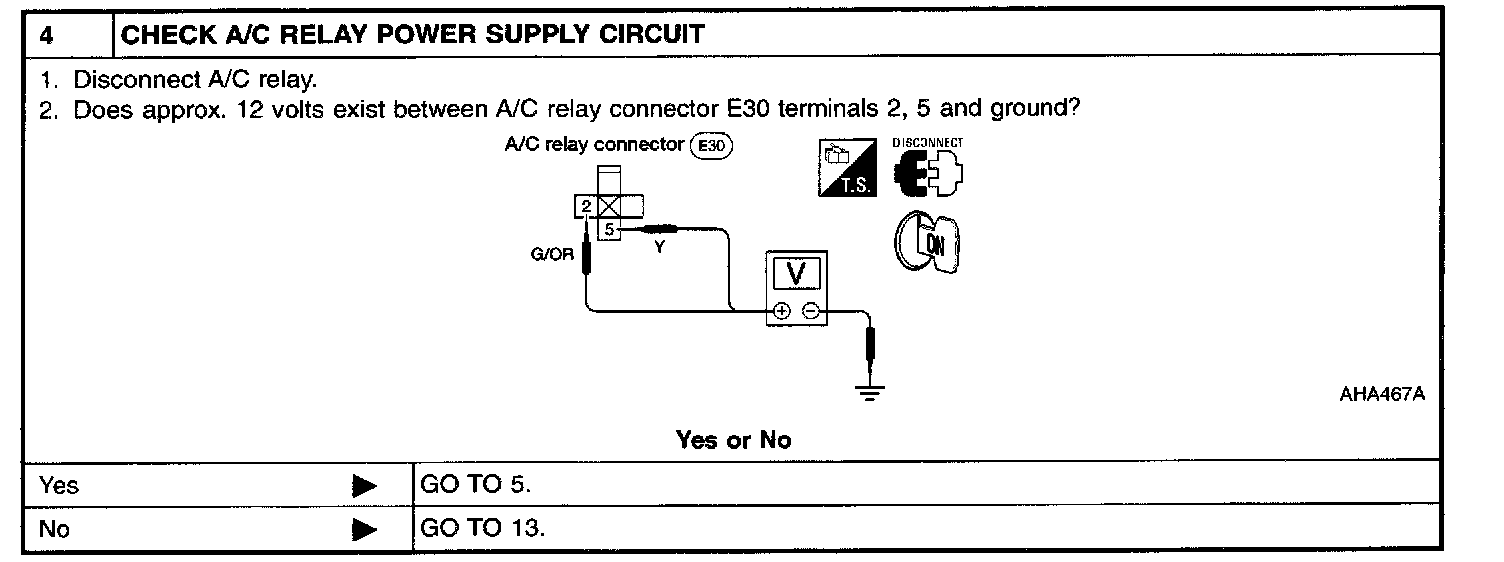

Step 4:

Step 5:

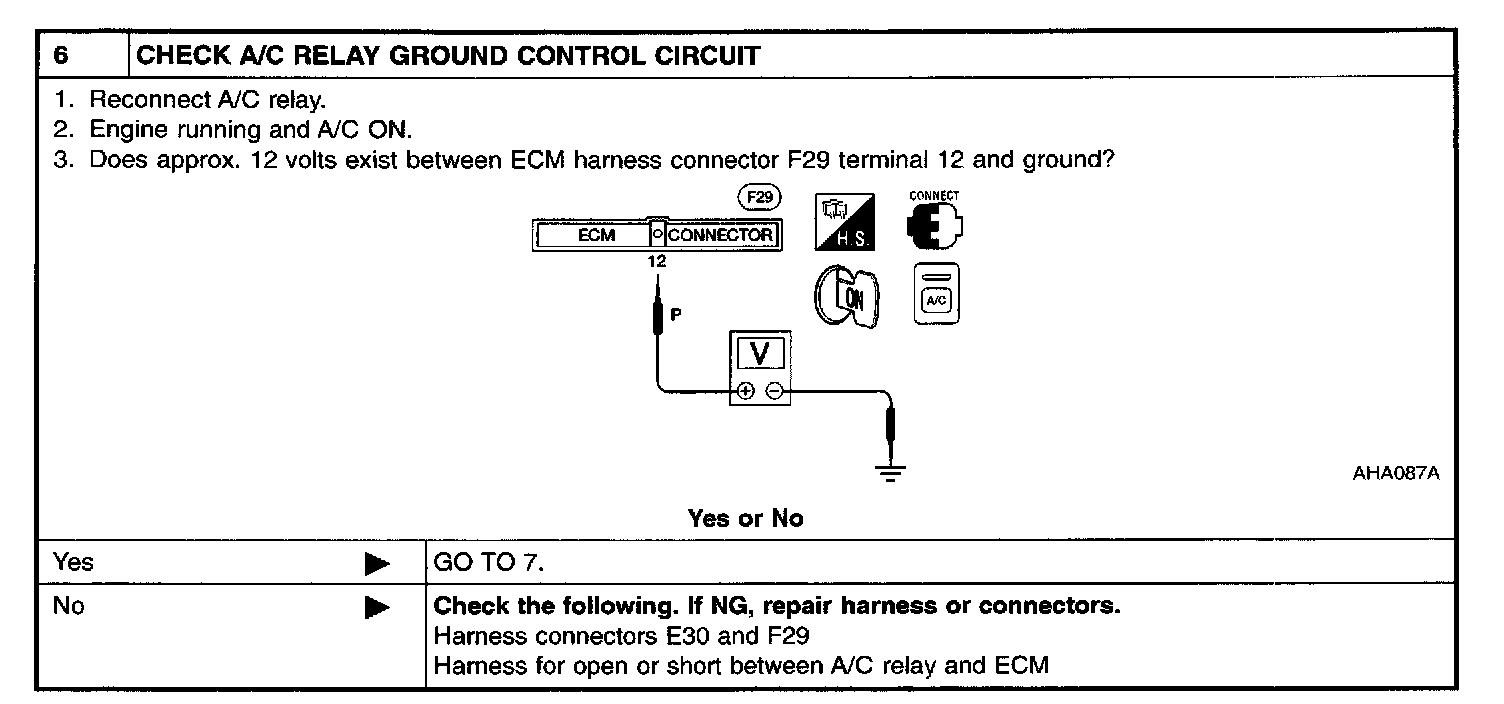

Step 6:

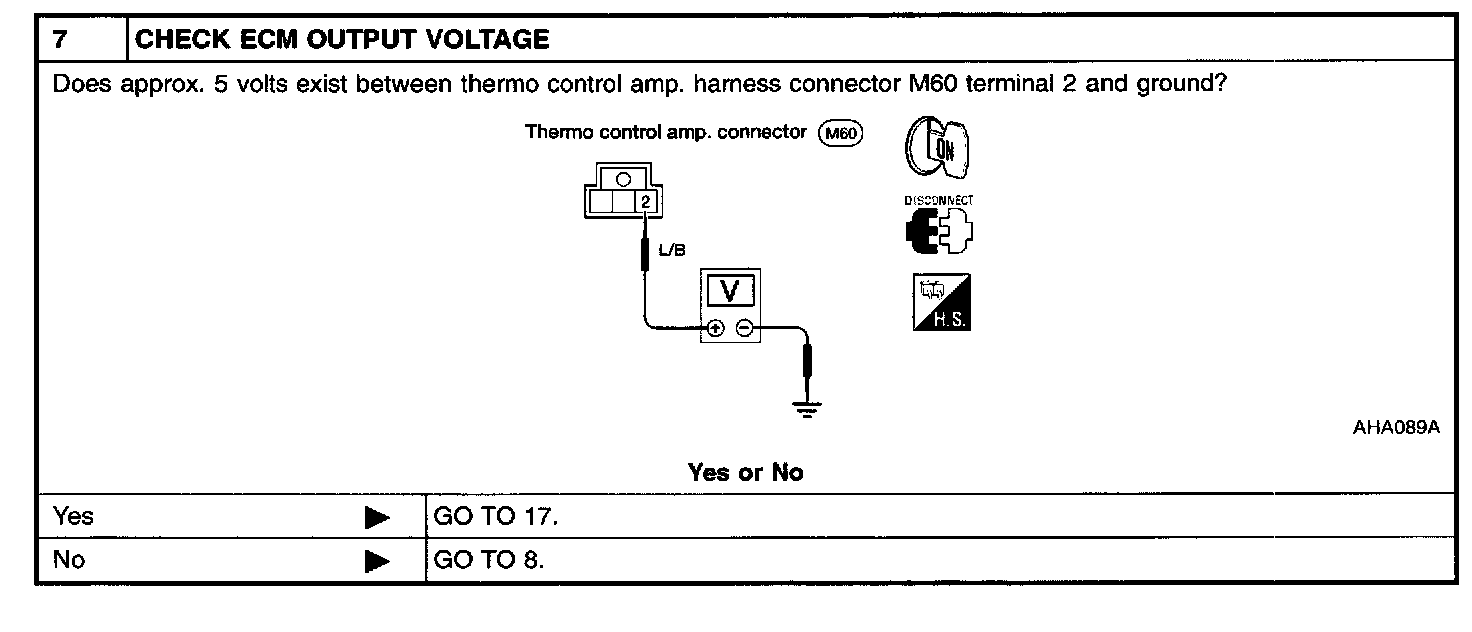

Step 7:

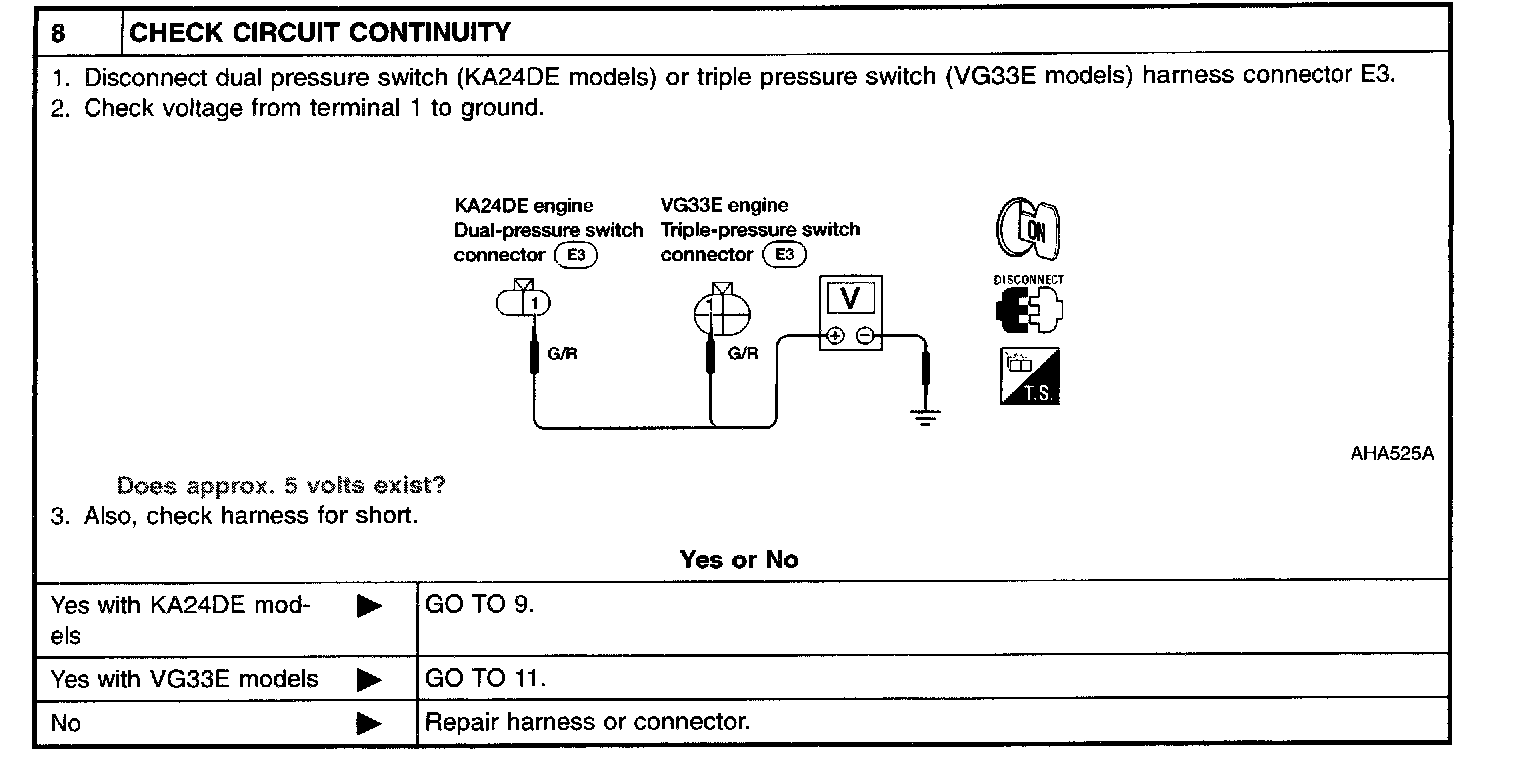

Step 8:

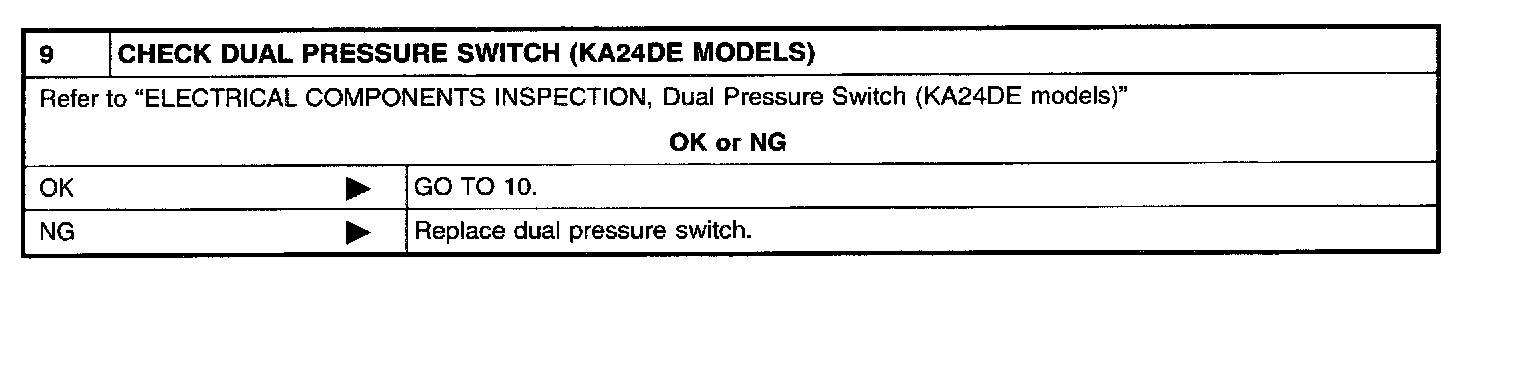

Step 9:

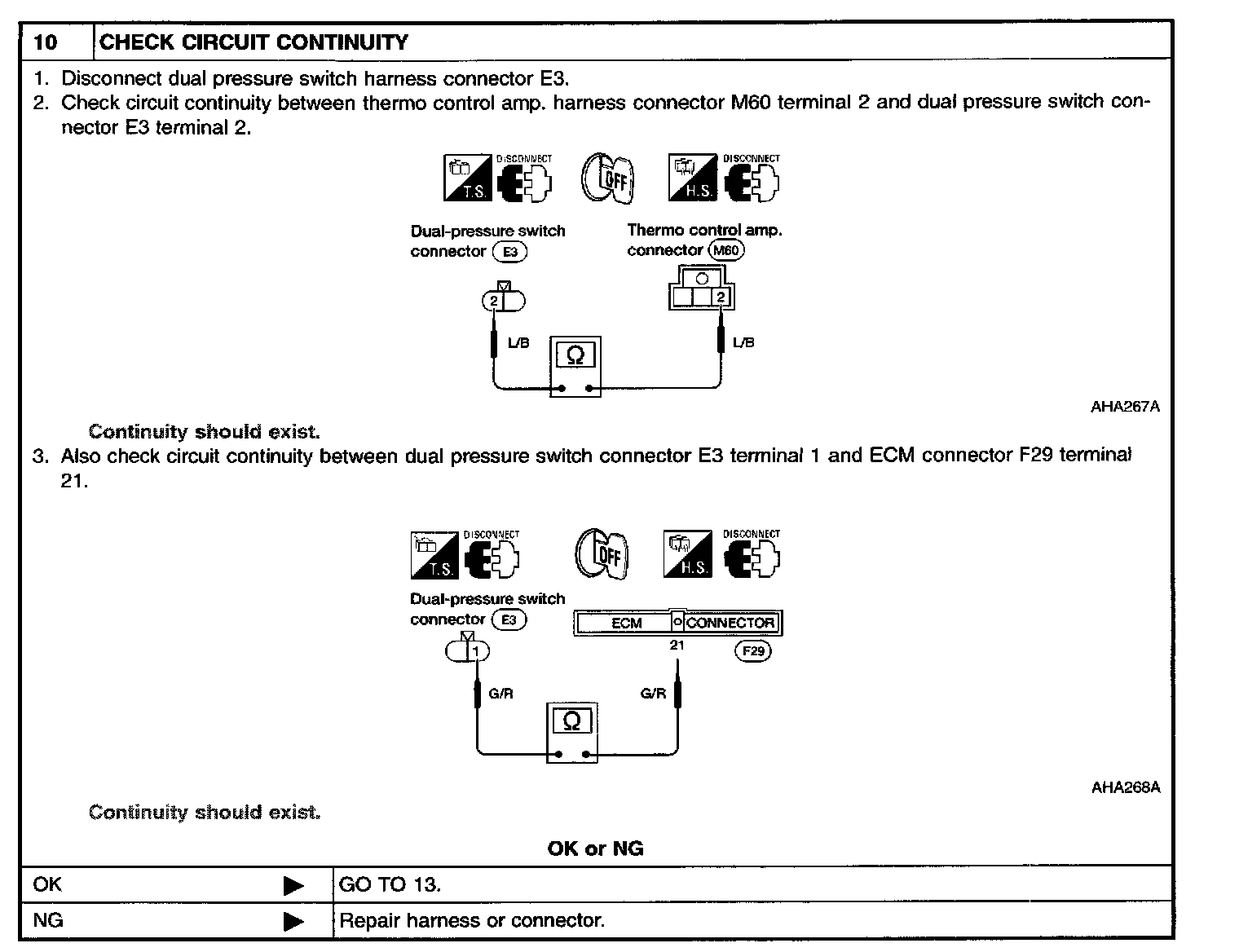

Step 10:

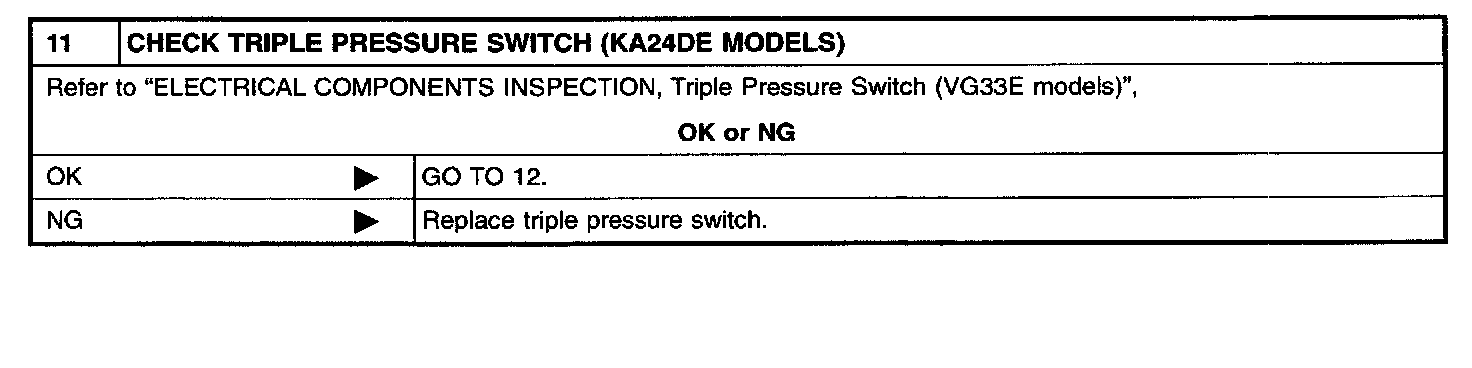

Step 11:

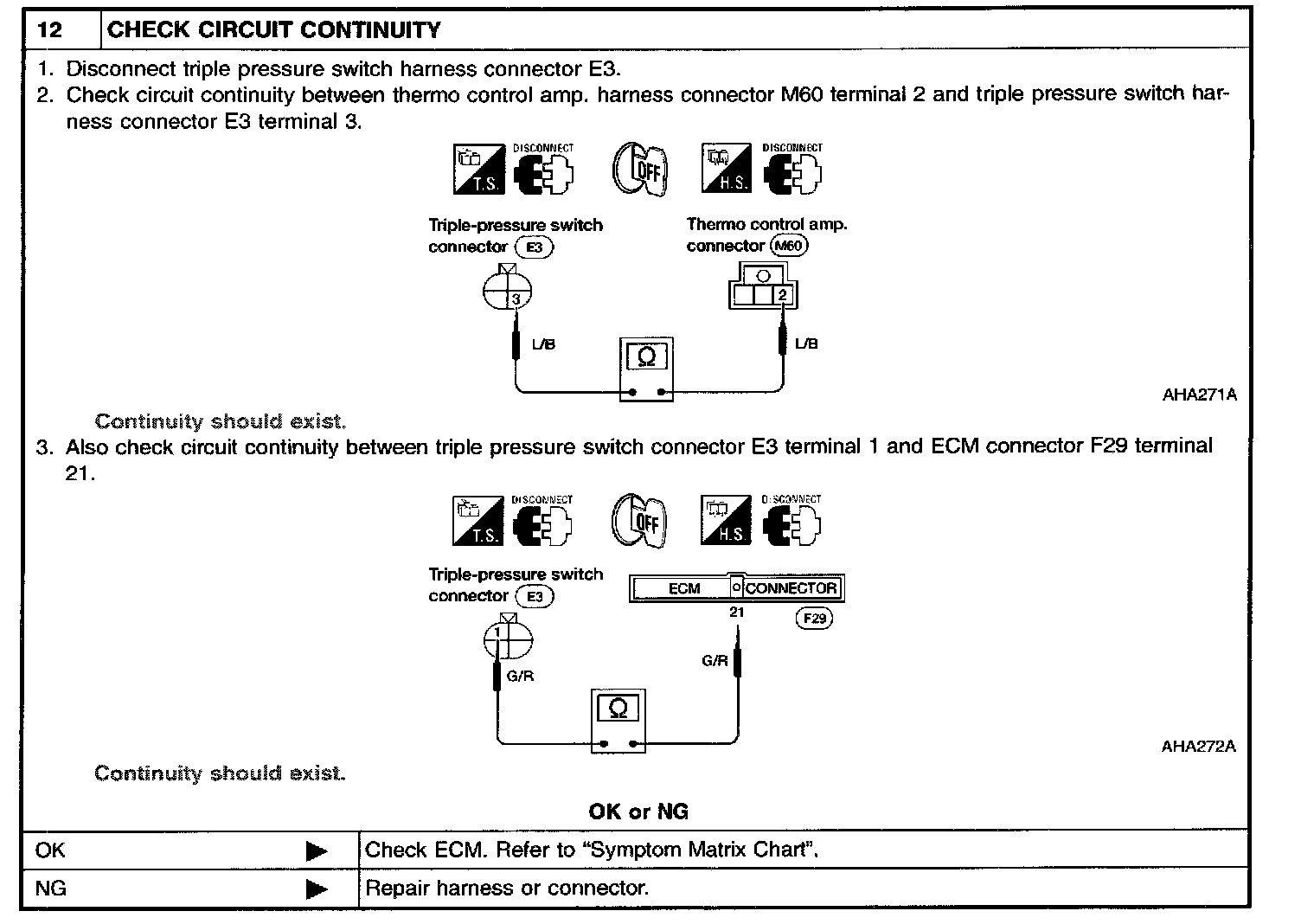

Step 12:

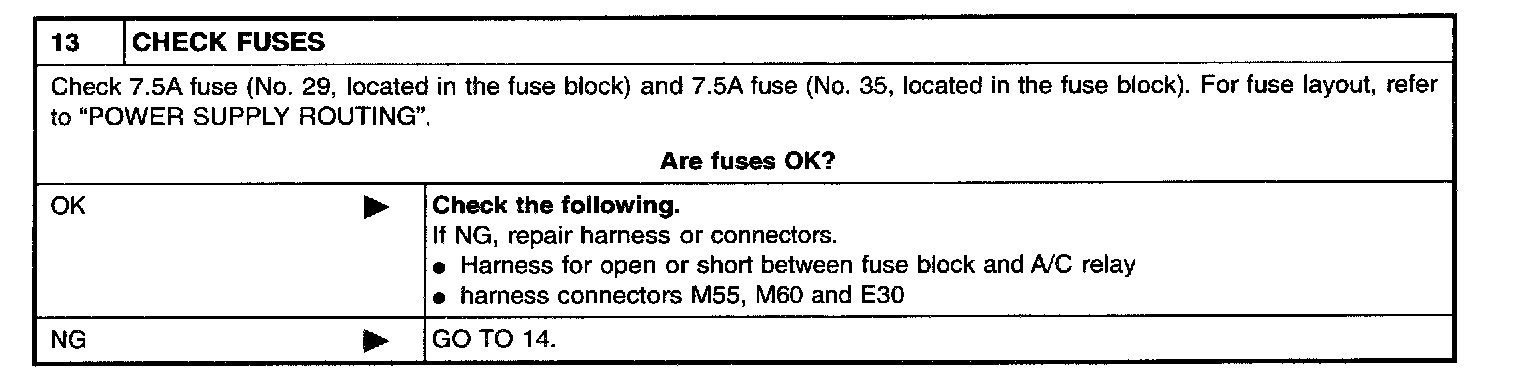

Step 13:

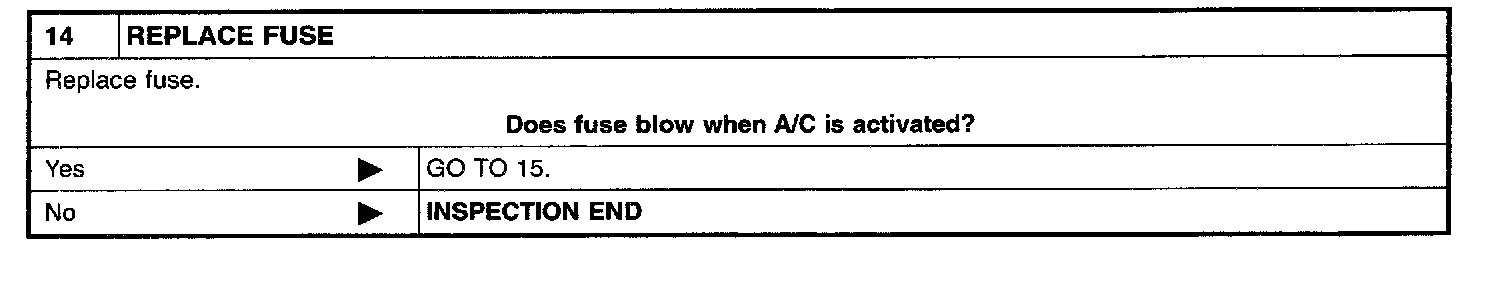

Step 14:

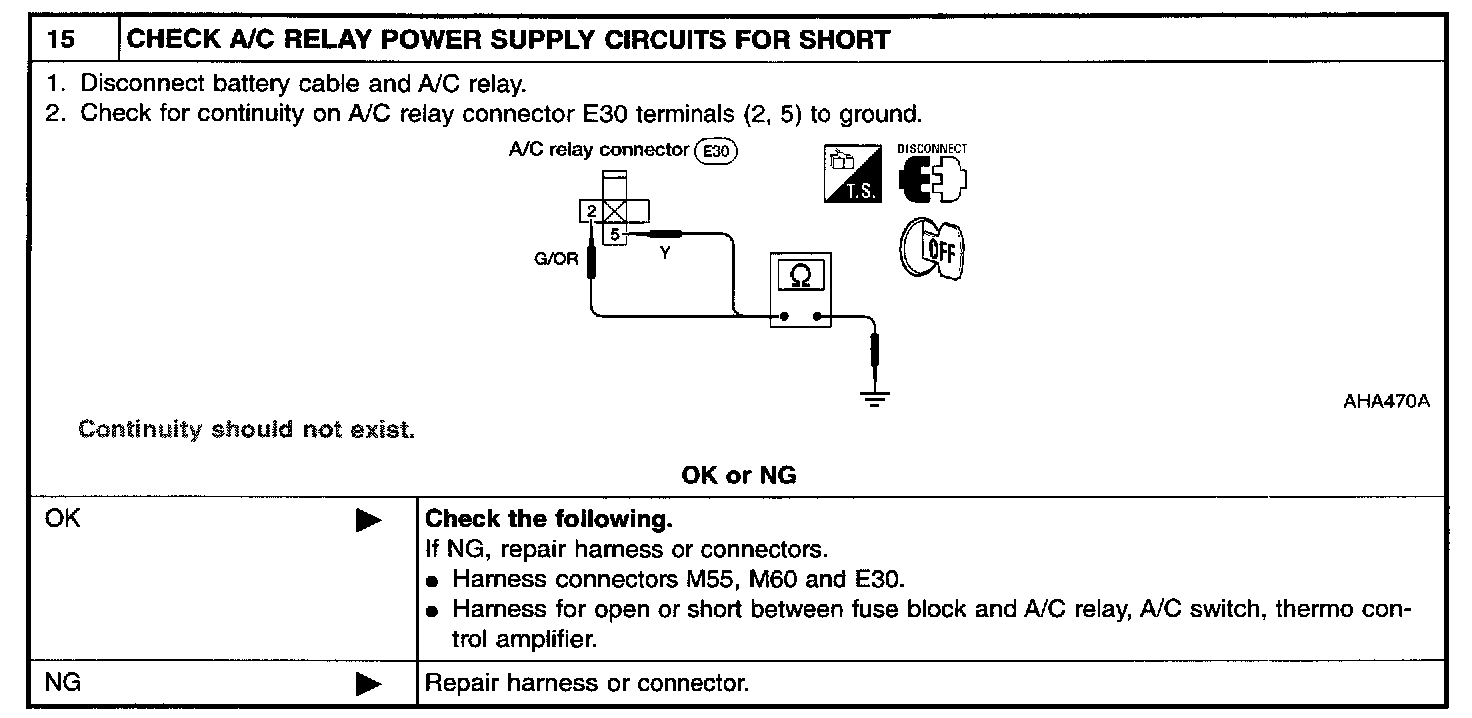

Step 15:

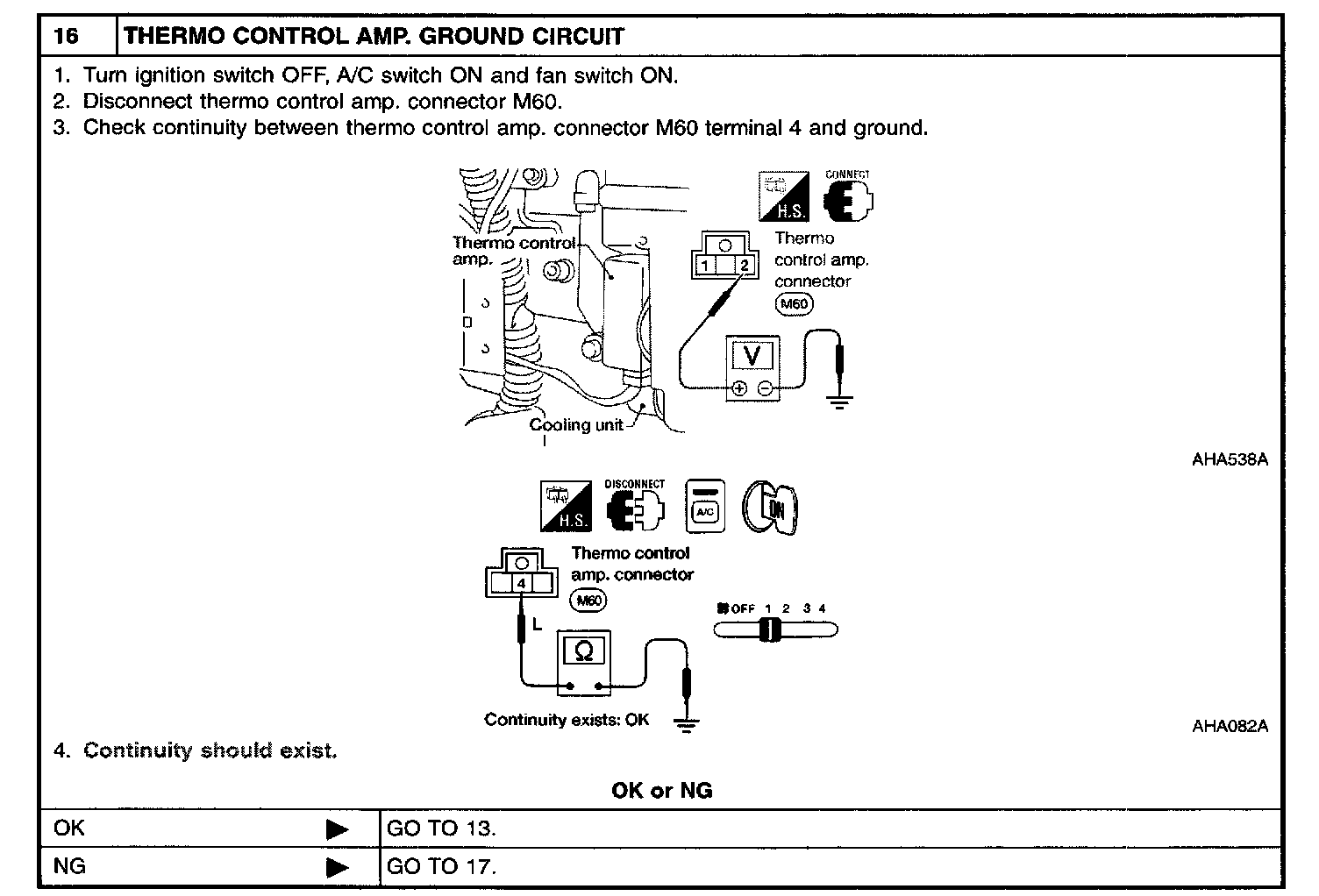

Step 16:

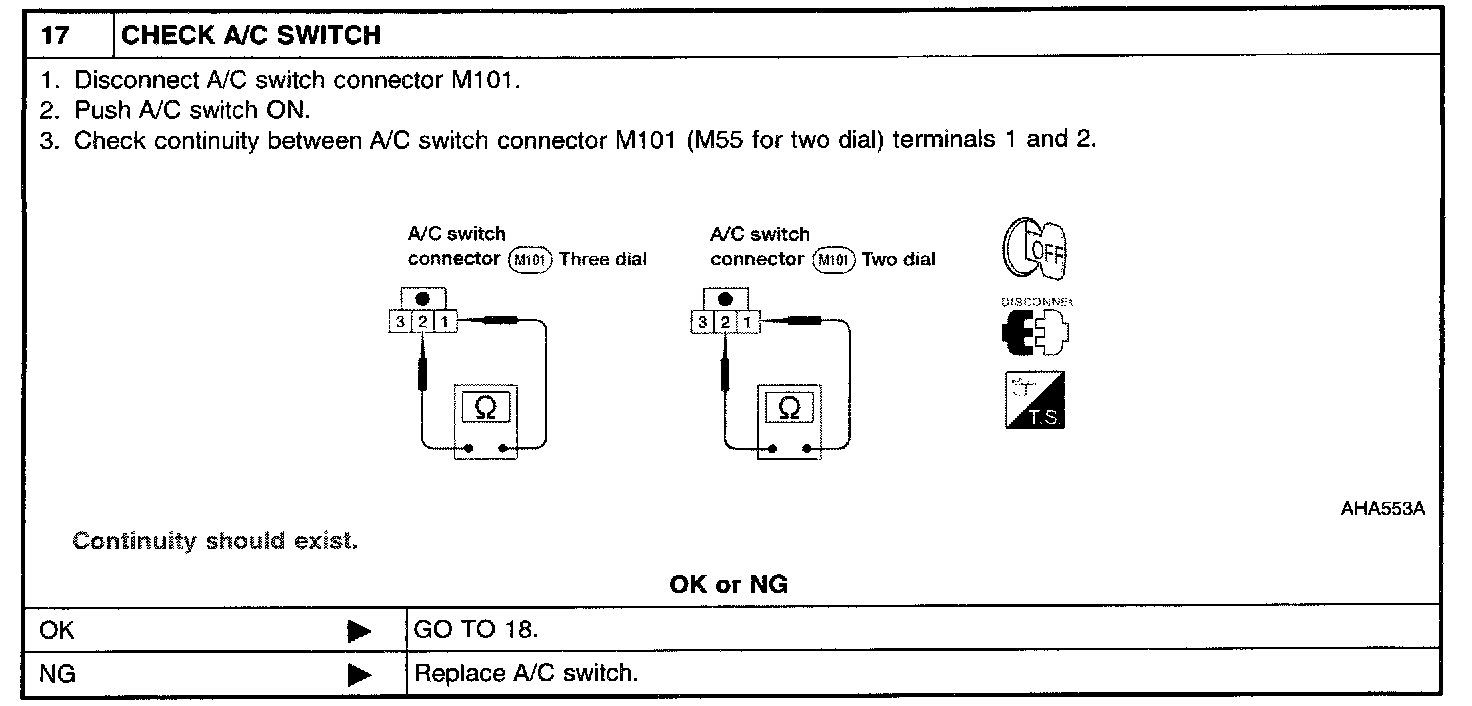

Step 17:

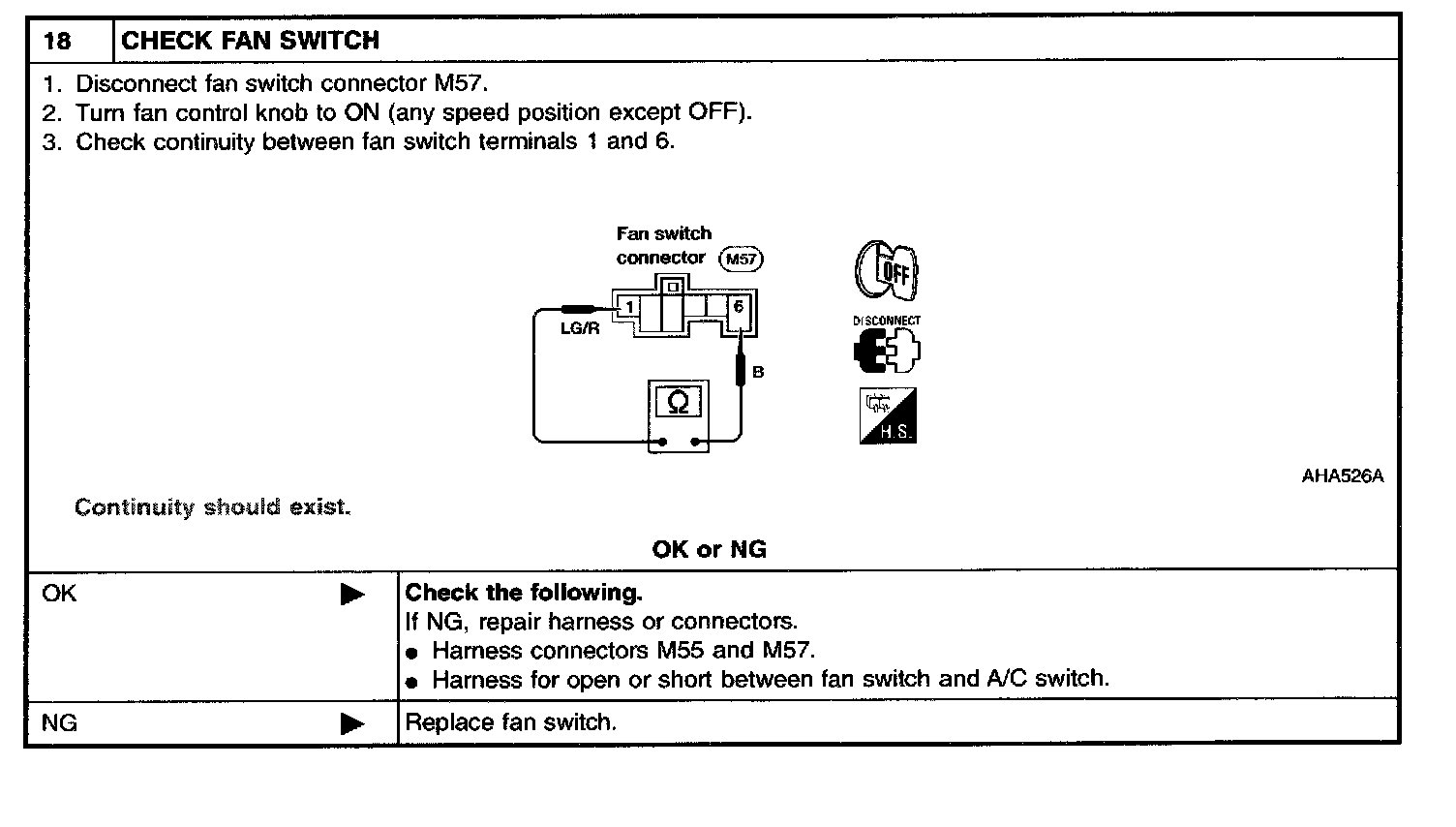

Step 18:

MAGNET CLUTCH CIRCUIT
SYMPTOM :
- Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

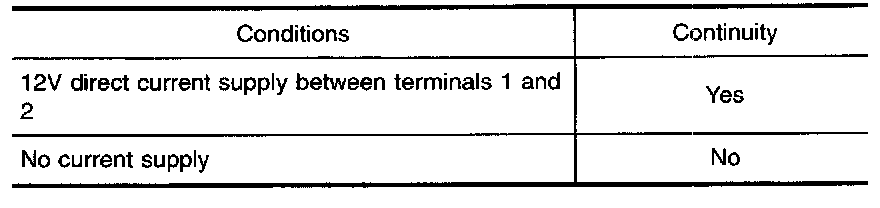

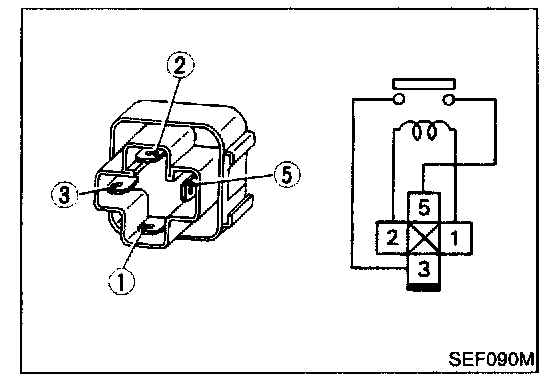

A/C Relay
Check continuity between terminals 3 and 5.

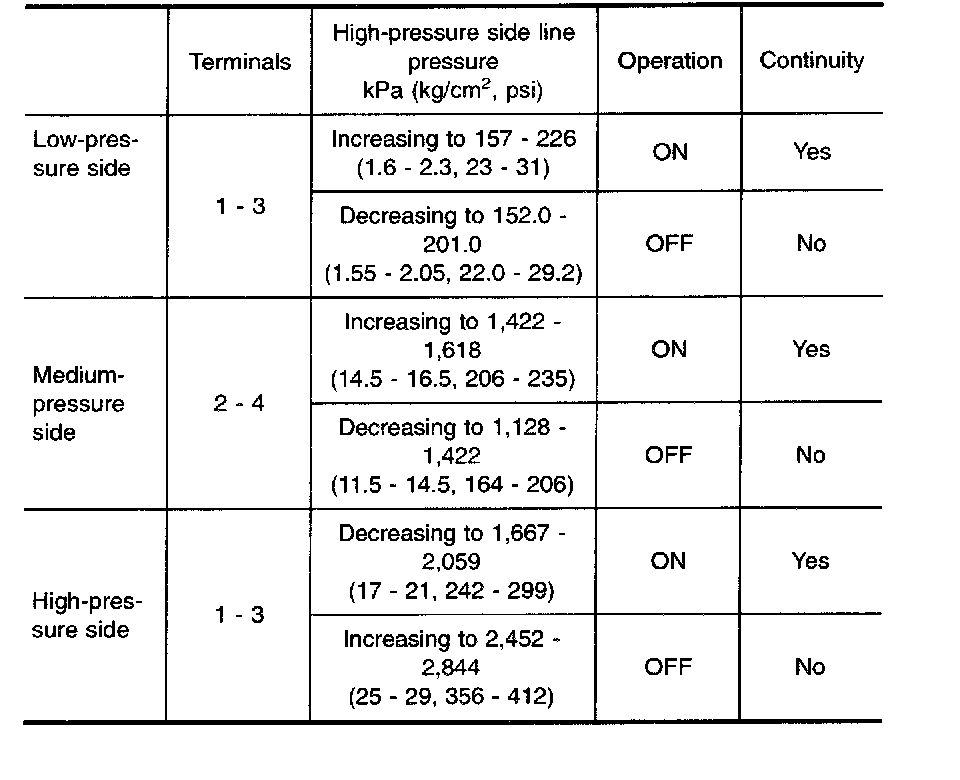

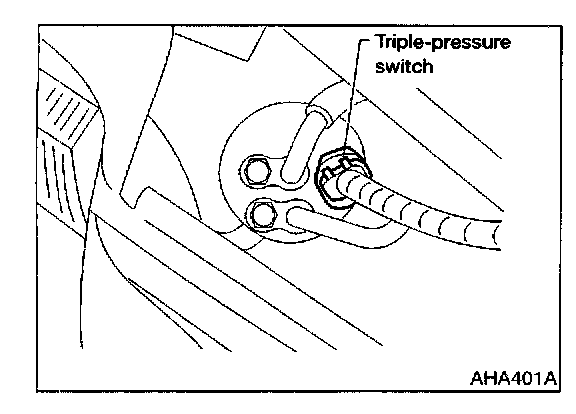

Triple Pressure Switch
Check continuity between terminals 1 and 3.

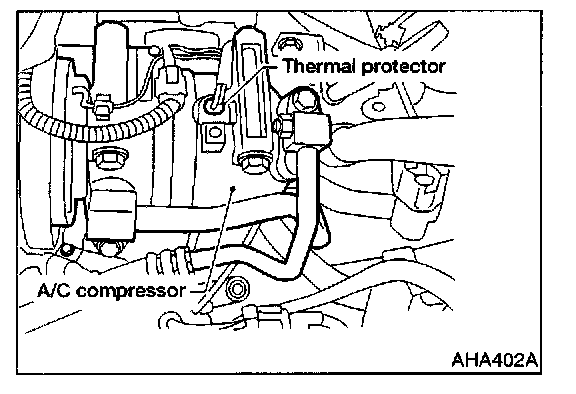

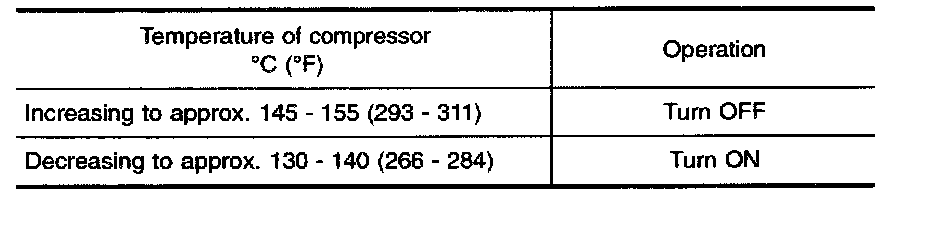

Thermal Protector

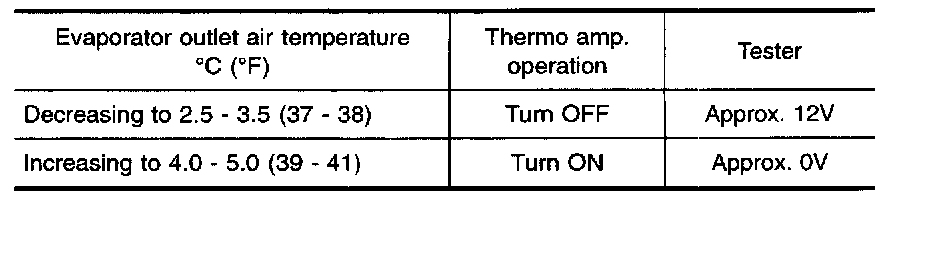

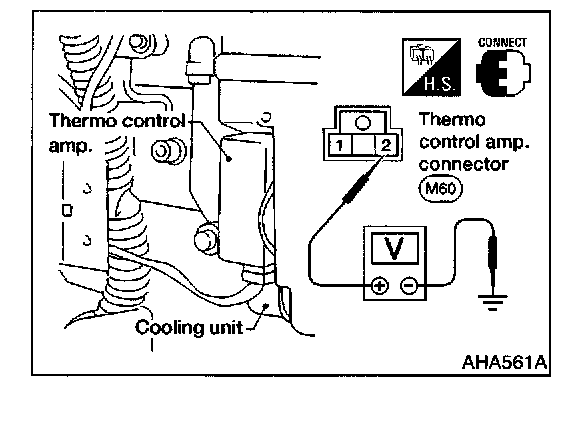

Thermo Control Amp.
1. Run engine and operate A/C system.
2. Connect the voltmeter from harness side.
3. Check the thermo control amp. operation as shown.
