Blower Motor: Testing and Inspection

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR
Symptom :
- Blower motor does not rotate.

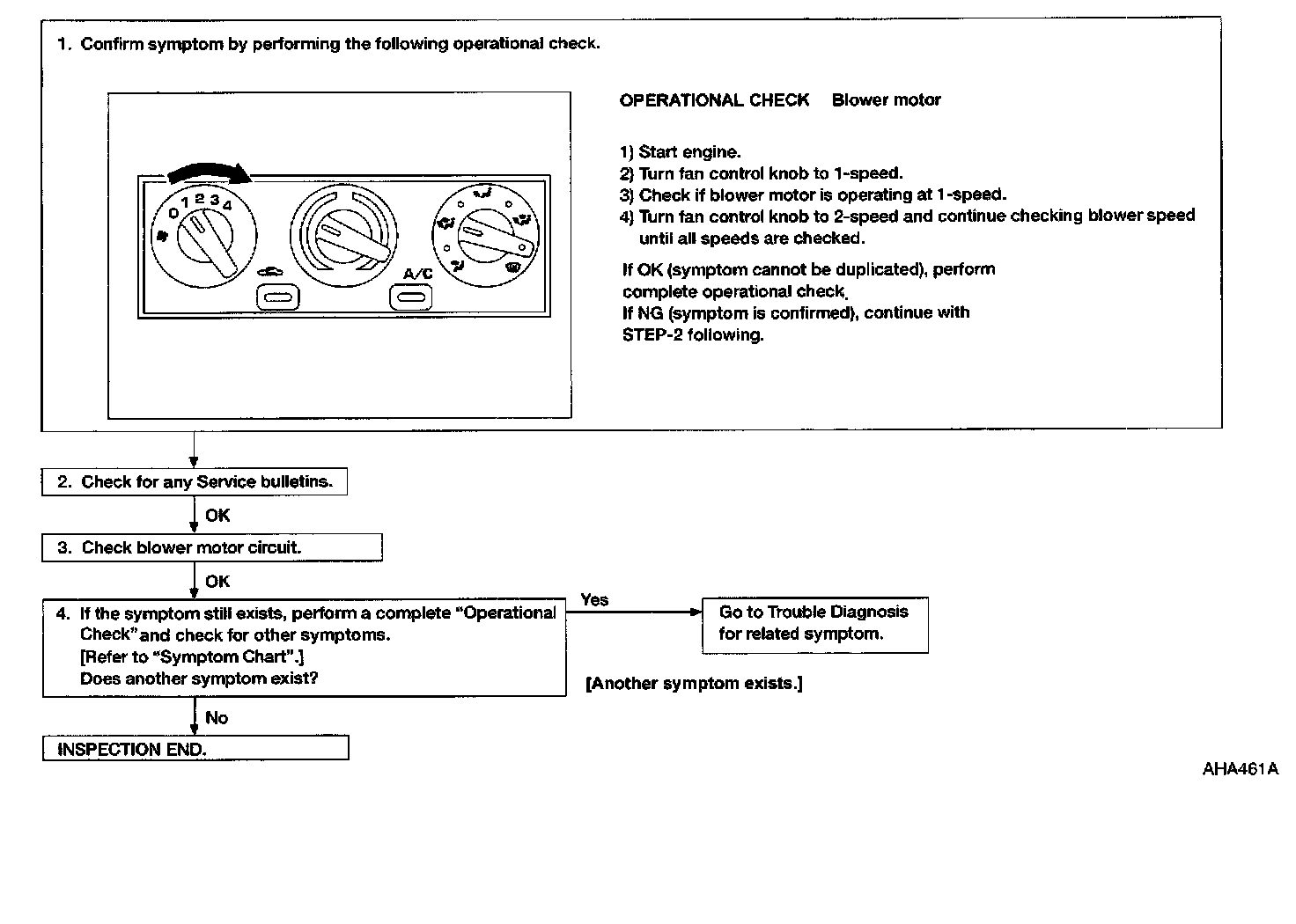

Inspection Flow

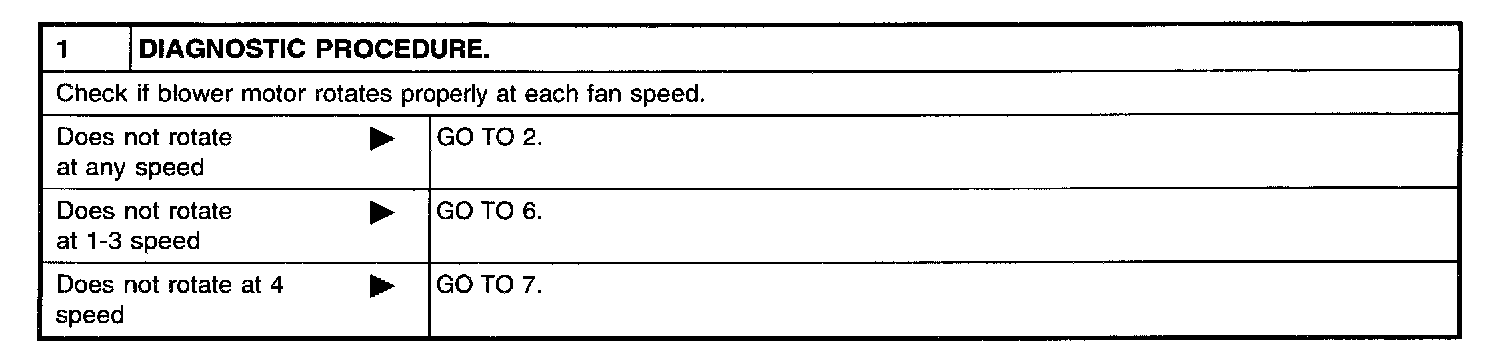

Step 1:

Step 2:

Step 3:

Step 4:

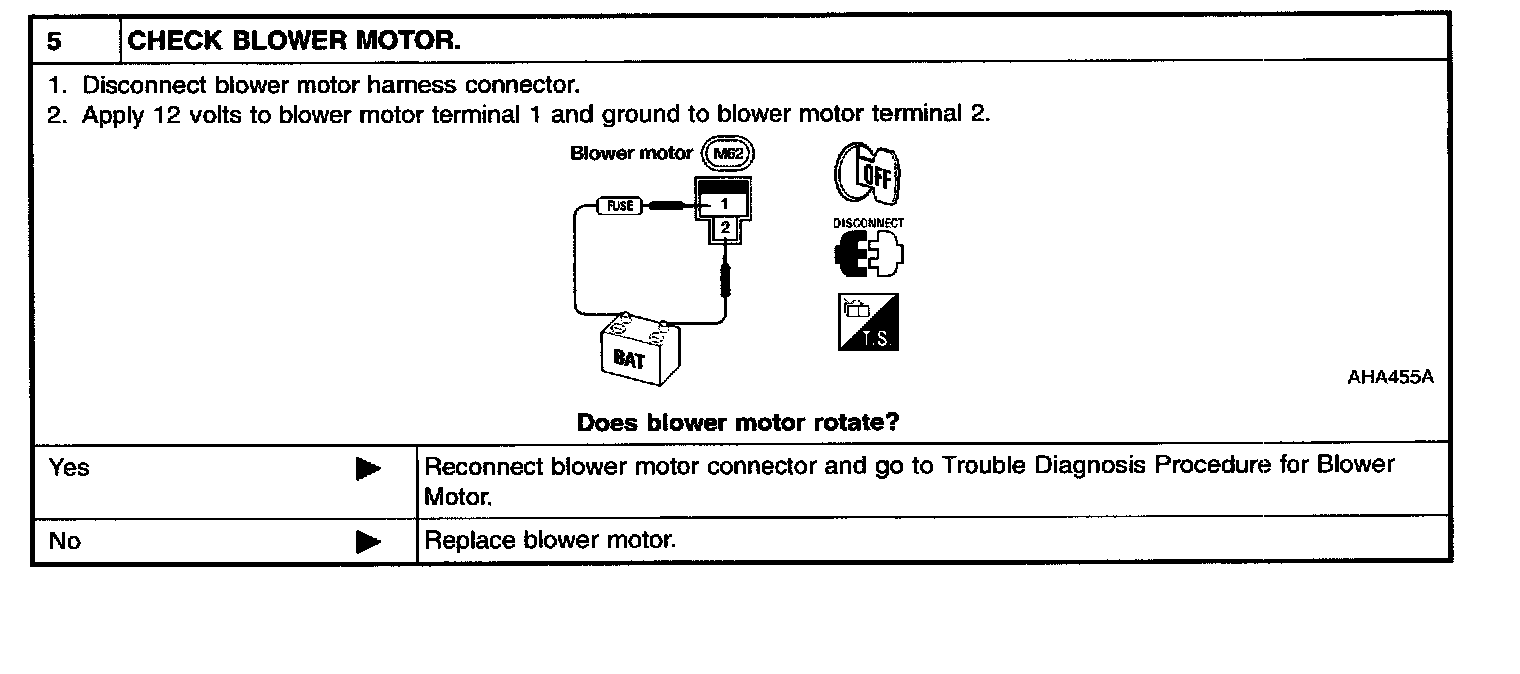

Step 5:

Step 6:

Step 7:

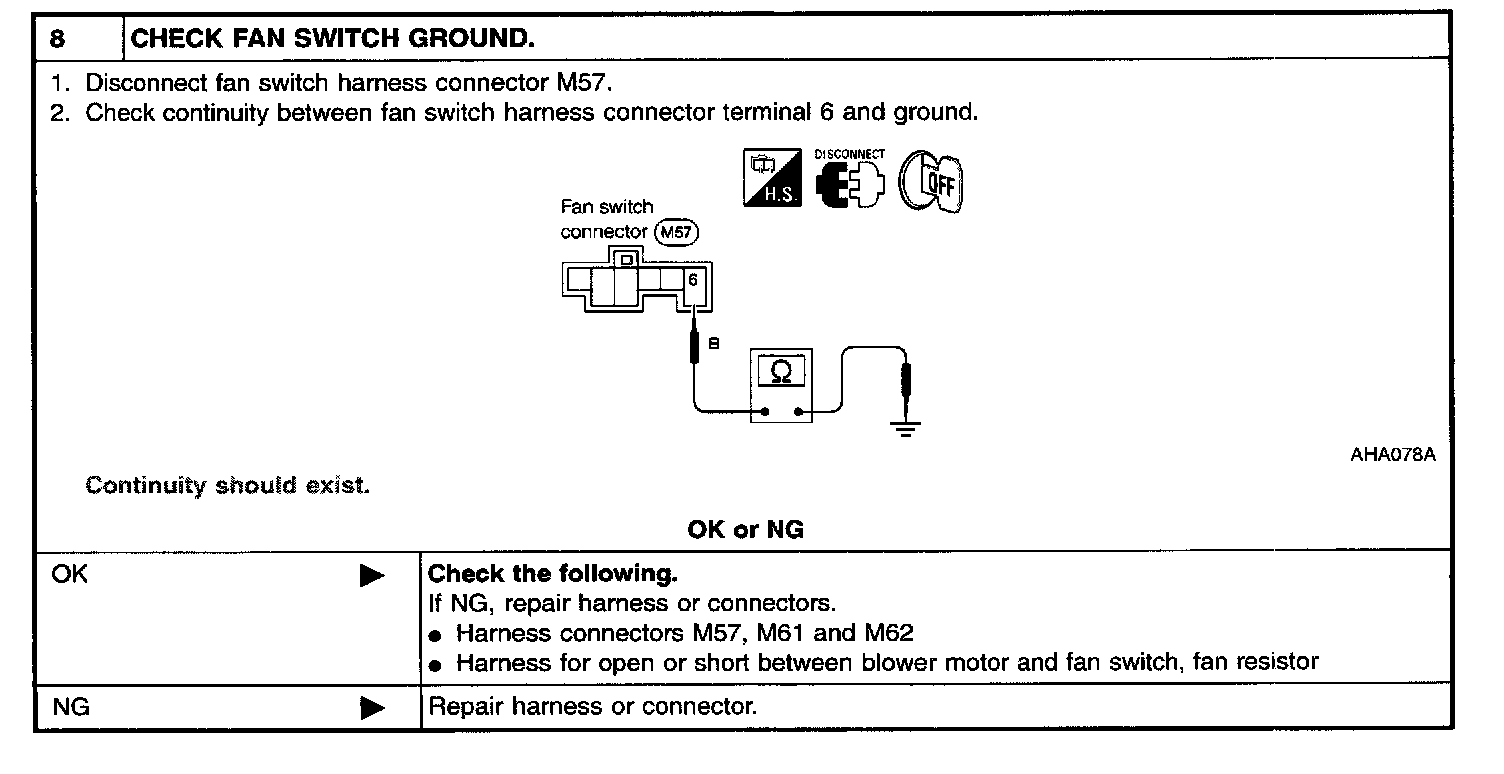

Step 8:

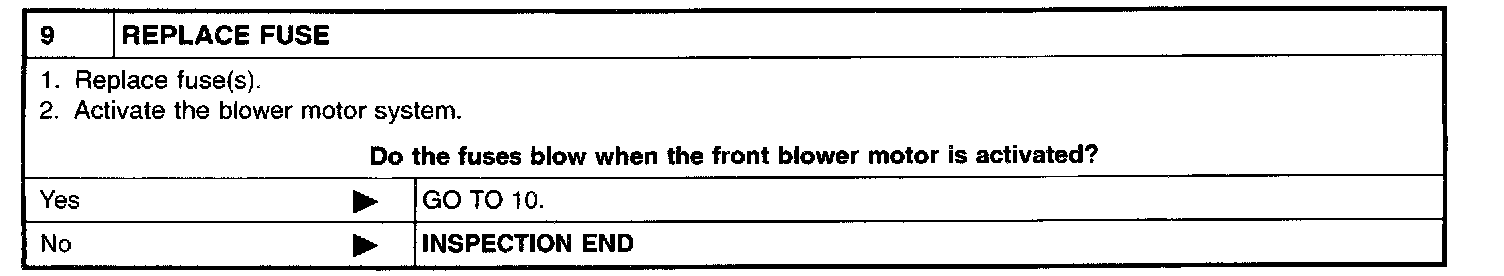

Step 9:

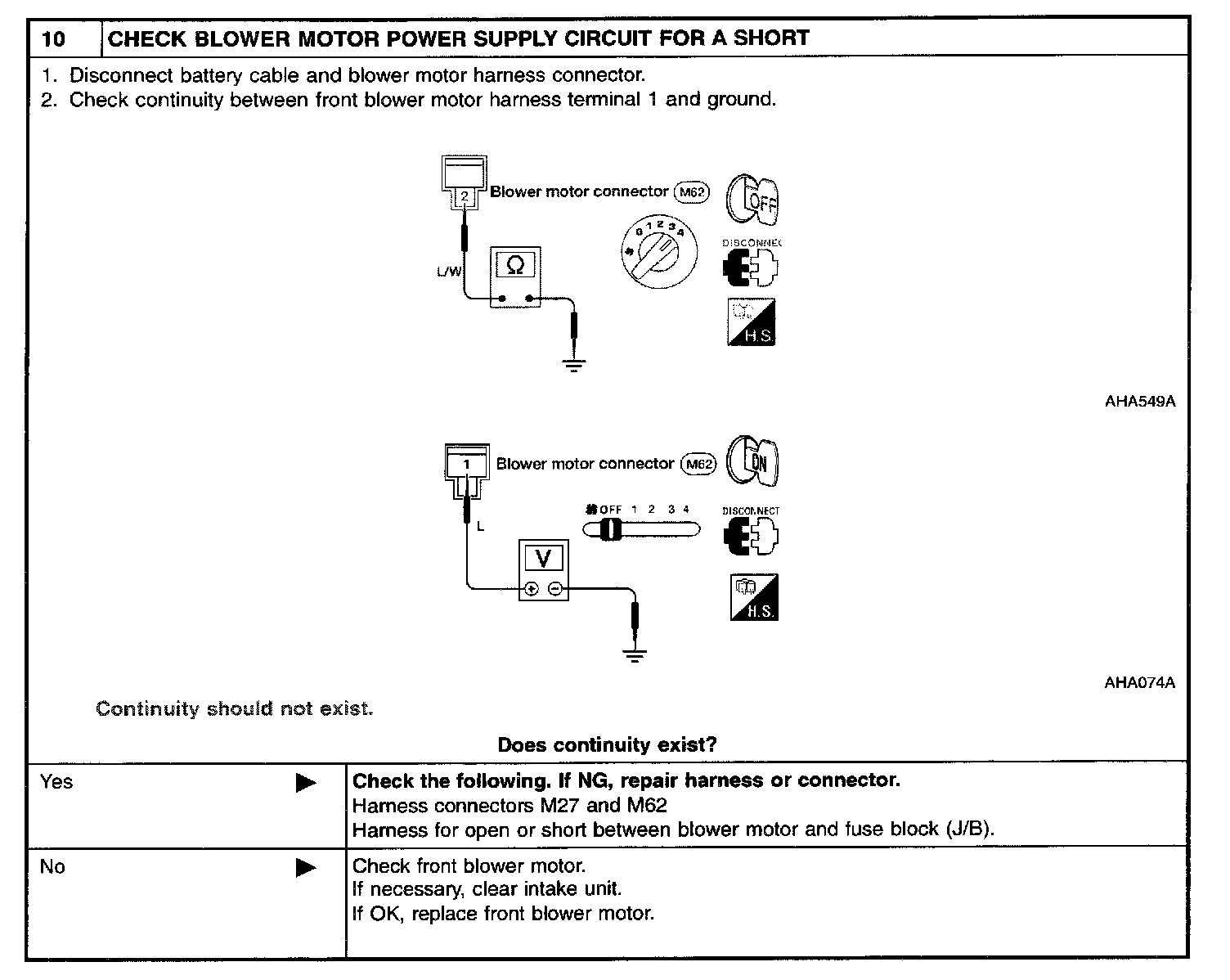

Step 10:

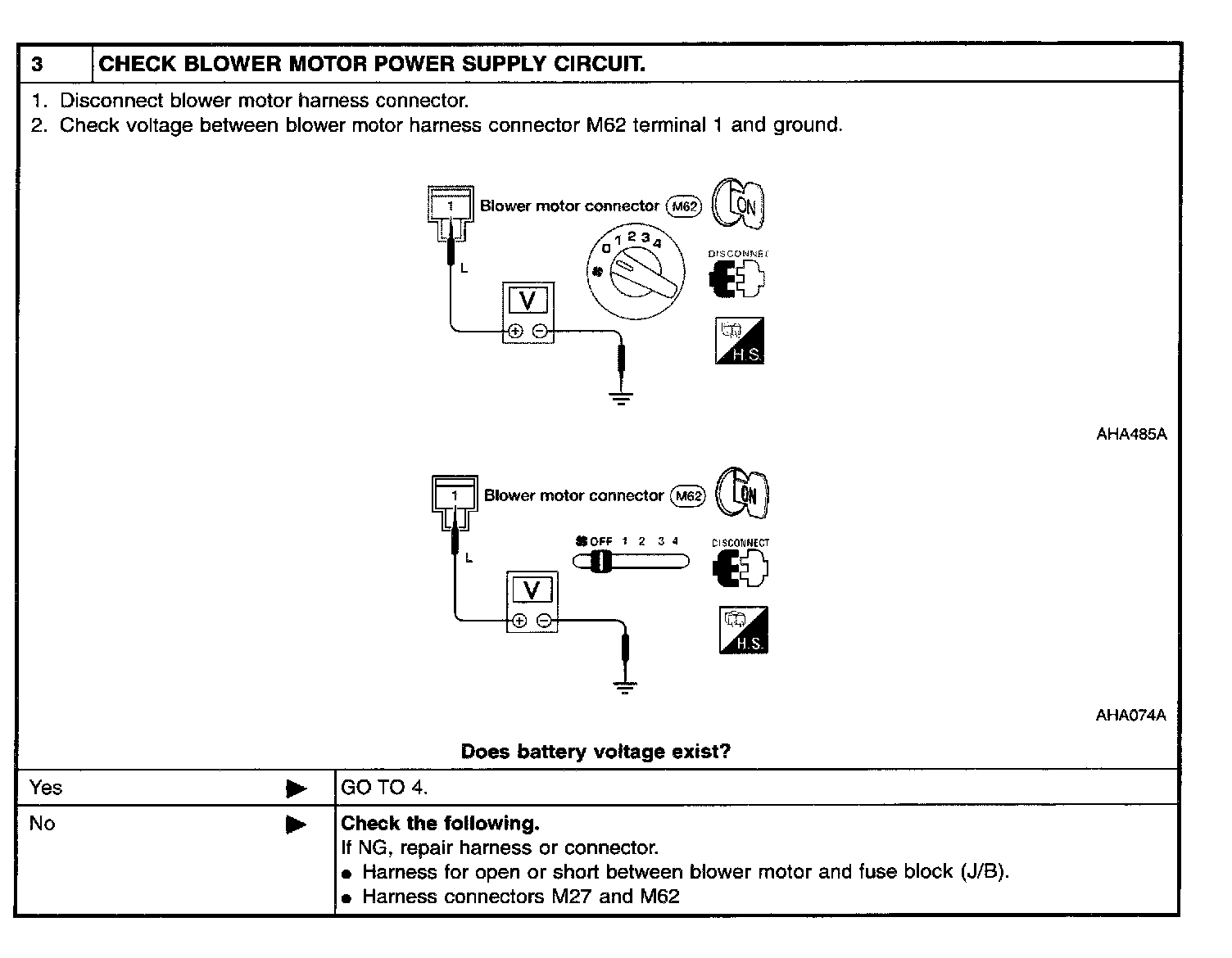

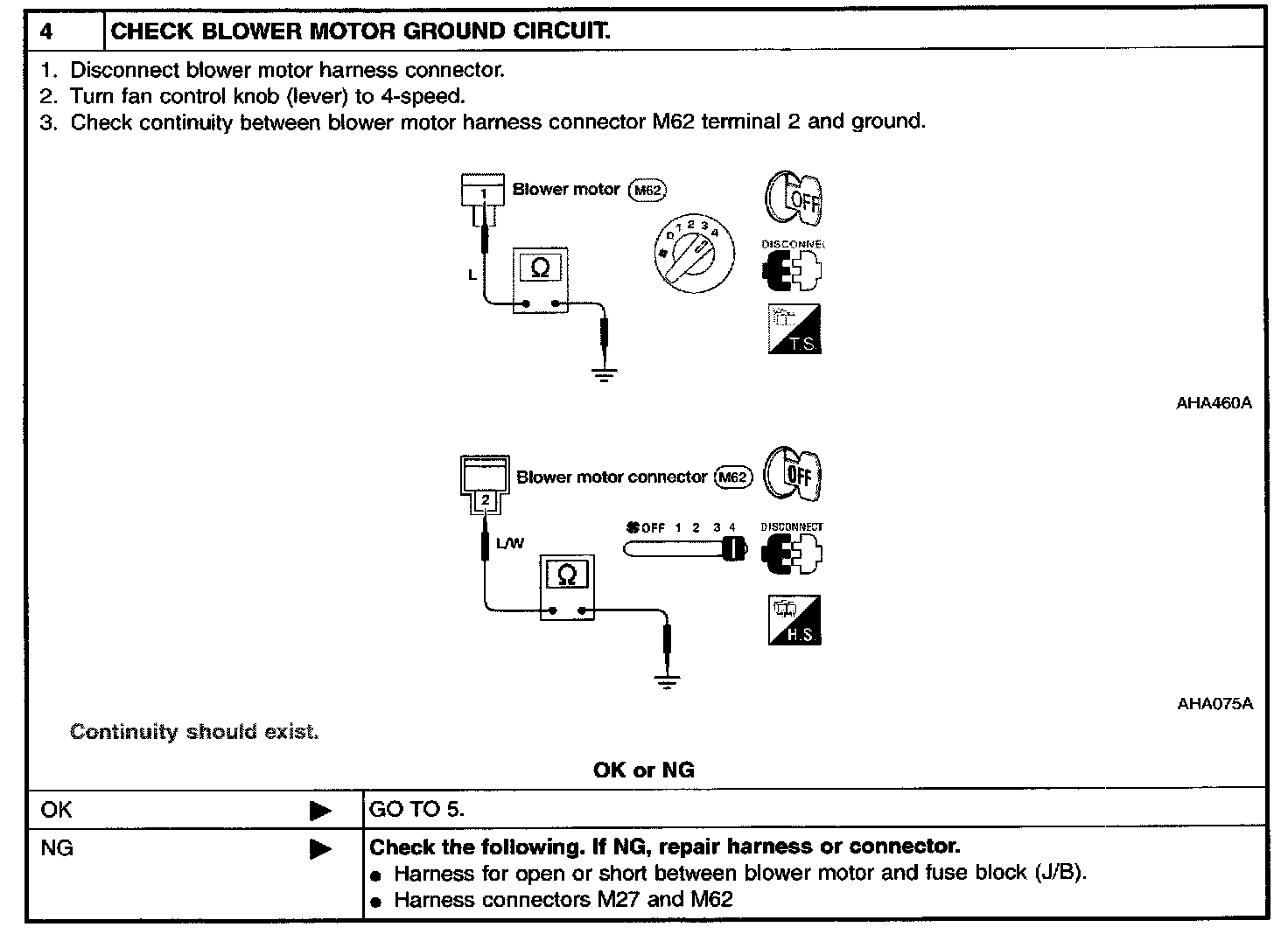

BLOWER MOTOR CIRCUIT

SYMPTOM :
- Blower motor does not rotate.







ELECTRICAL COMPONENTS INSPECTION

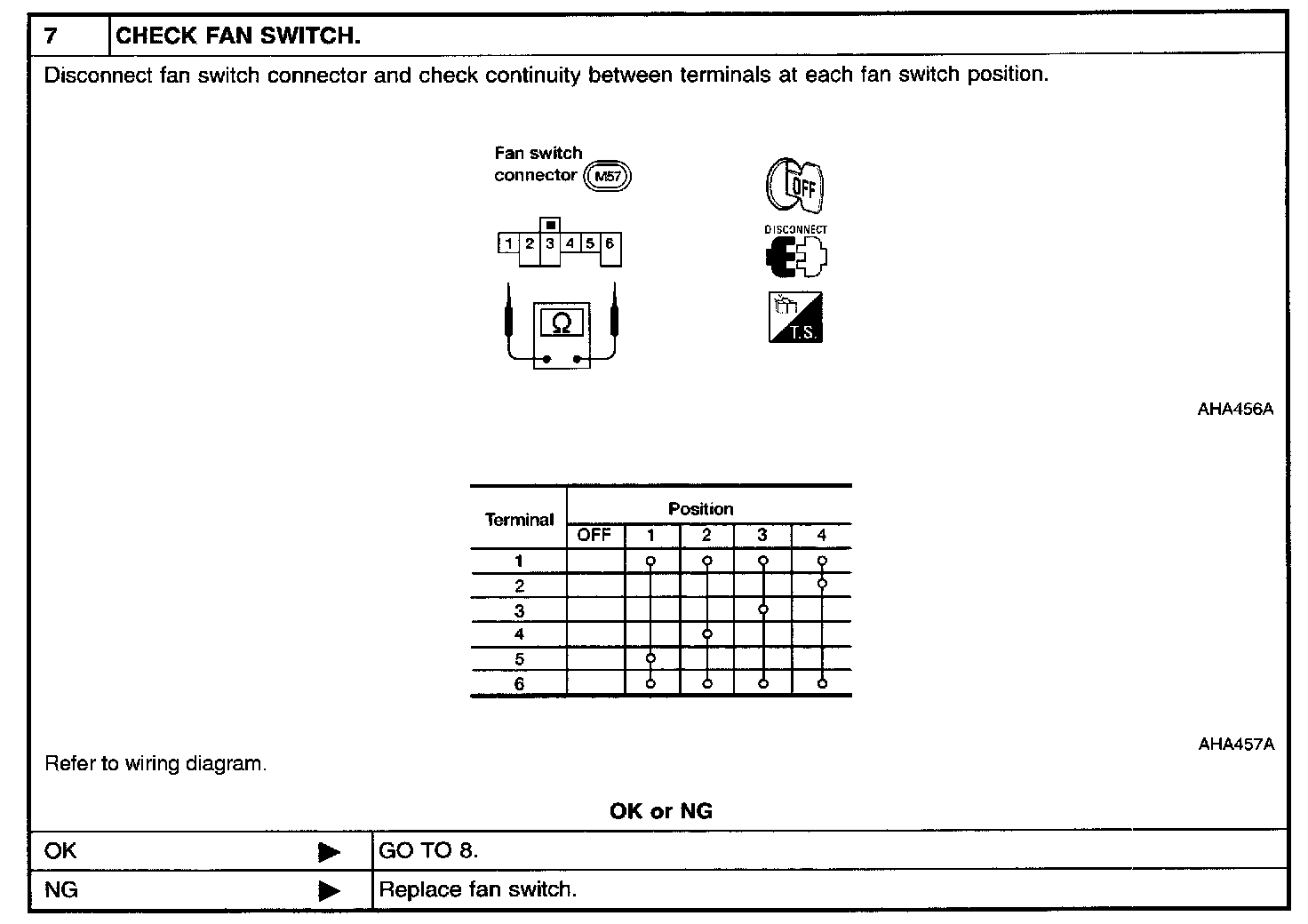

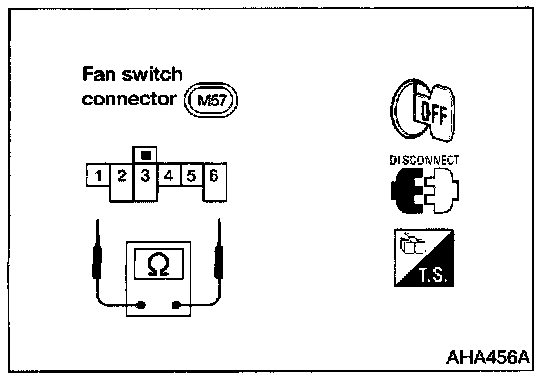

Front Fan Switch

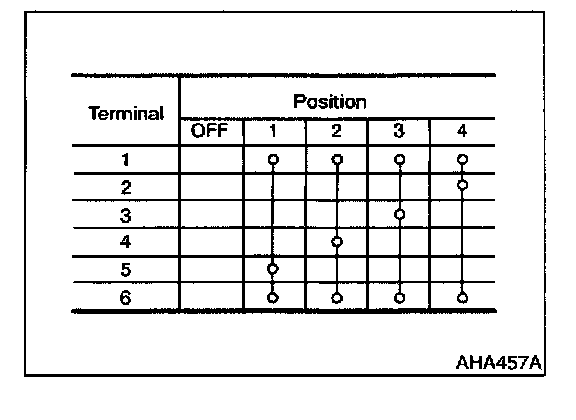

Check continuity between terminals at each switch position




Blower Motor
Confirm smooth rotation of the blower motor.
- Check that there are no foreign particles inside the intake unit.

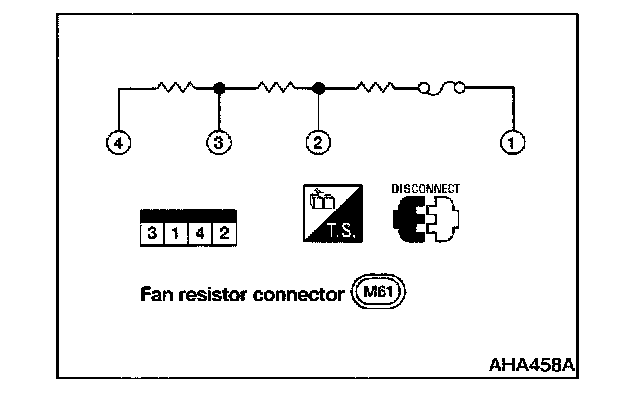

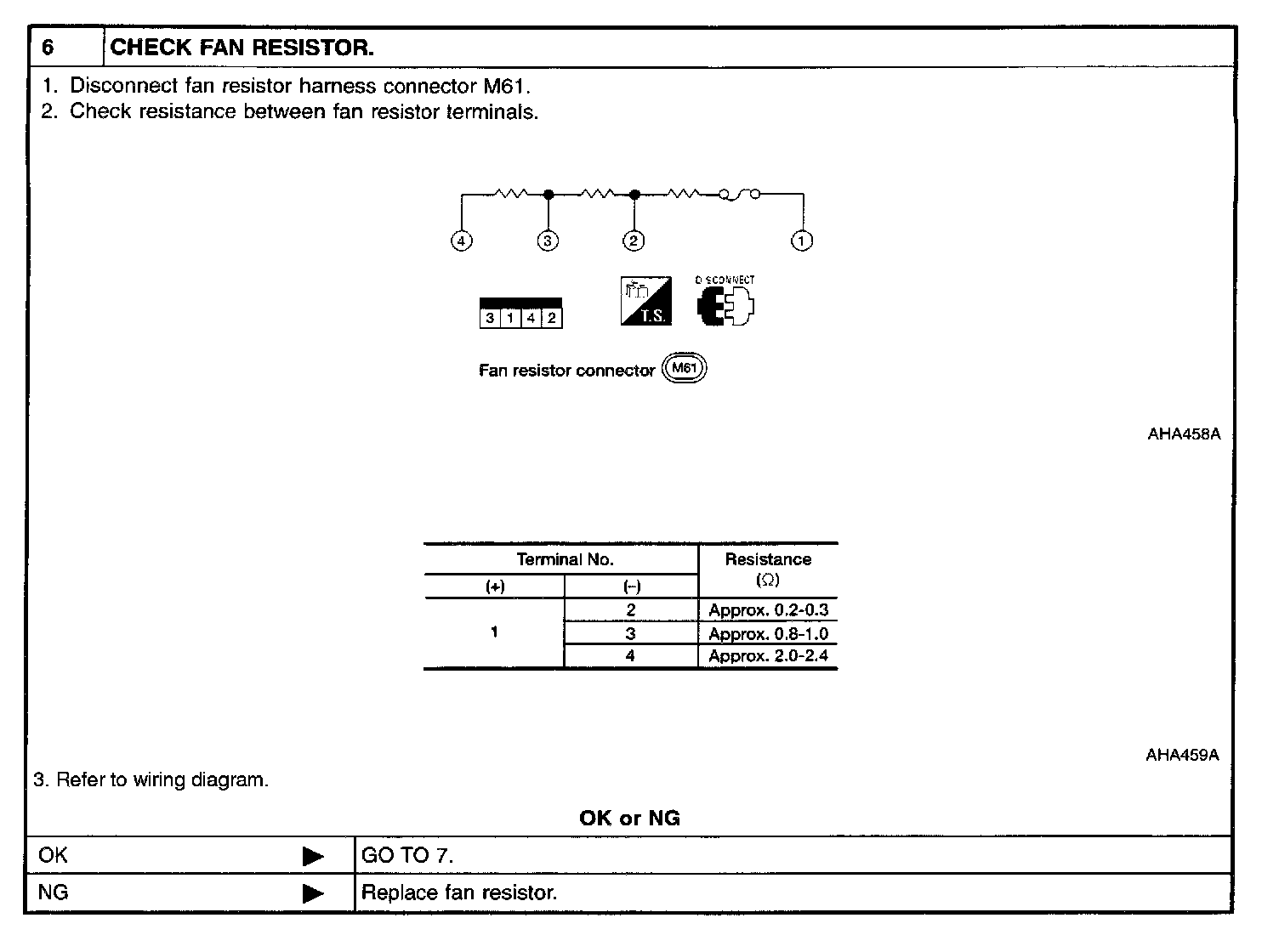

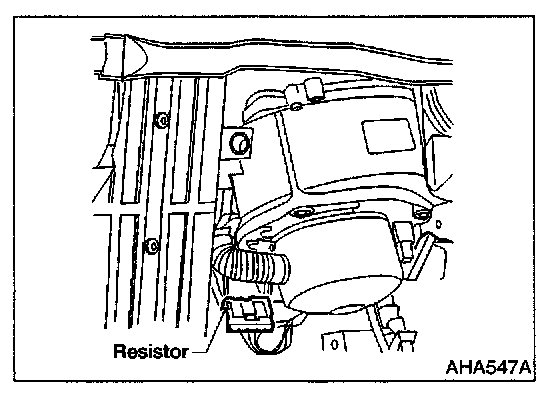

Fan Resistor
Check resistance between terminals.
