TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR
Symptom :
- Mode door does not change.

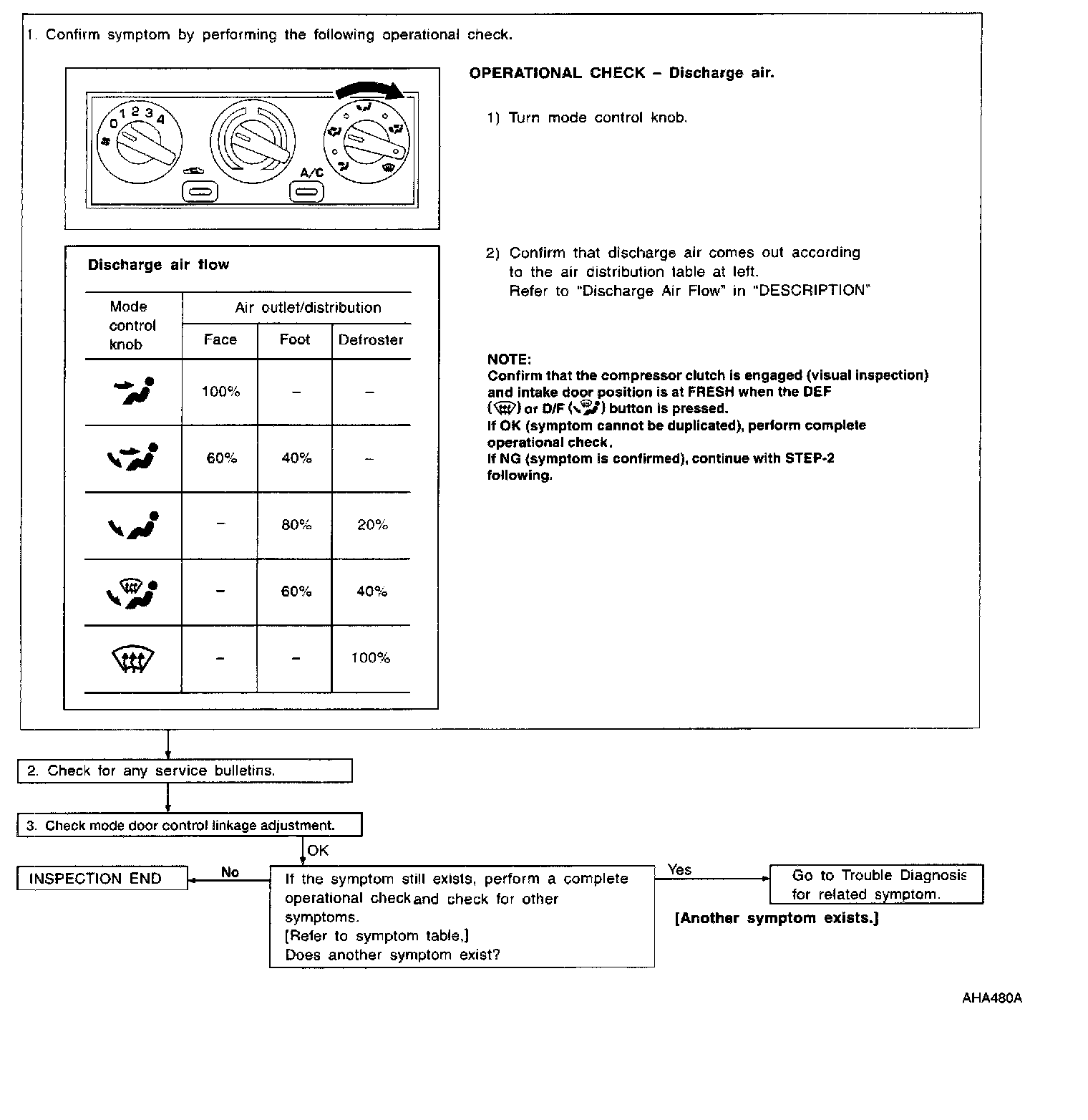

Inspection Flow

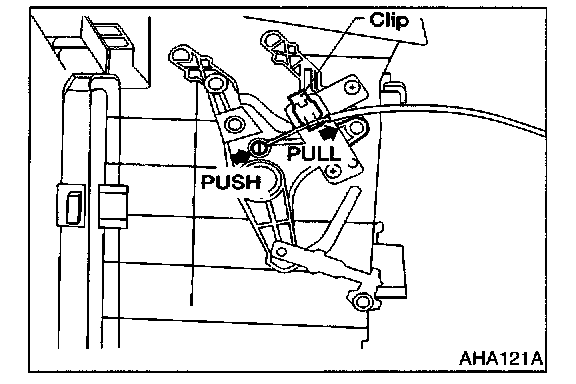

MODE DOOR CONTROL LINKAGE ADJUSTMENT




Mode door control linkage
- Turn mode door control knob to (*) position.
- Set side link in DEF mode.
- Pull on outer cable in direction of arrow and then clamp it.
- After positioning mode door control cable, check that it operates properly.
