Beginning With VIN 343314
CAMSHAFT OIL SEAL1. Remove timing belt.
2. Remove camshaft sprocket.
3. Remove camshaft.
4. Remove camshaft oil seal.
Be careful not to scratch camshaft.

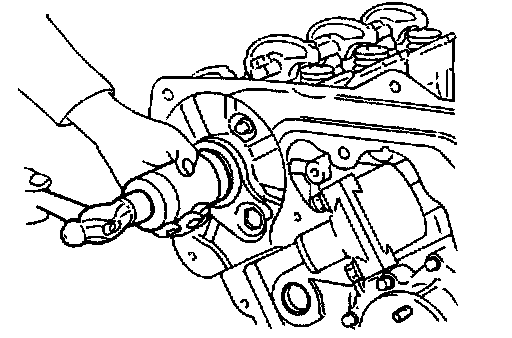

5. Apply engine oil to new camshaft oil seal.
1. Remove timing belt.
2. Remove camshaft sprocket.
3. Remove camshaft.
4. Remove camshaft oil seal.
Be careful not to scratch camshaft.
5. Apply engine oil to new camshaft oil seal.
