Before VIN 343314

CAMSHAFT OIL SEAL
1. Remove timing belt.





2. Remove camshaft sprocket.
3. Remove camshaft.

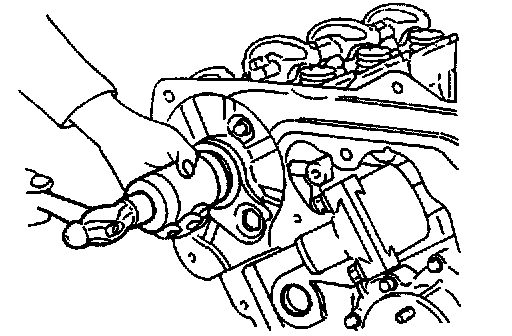

4. Remove camshaft oil seal.
Be careful not to scratch camshaft.
5. Apply engine oil to new camshaft oil seal.
