Regular and King Cab With Premium Audio System

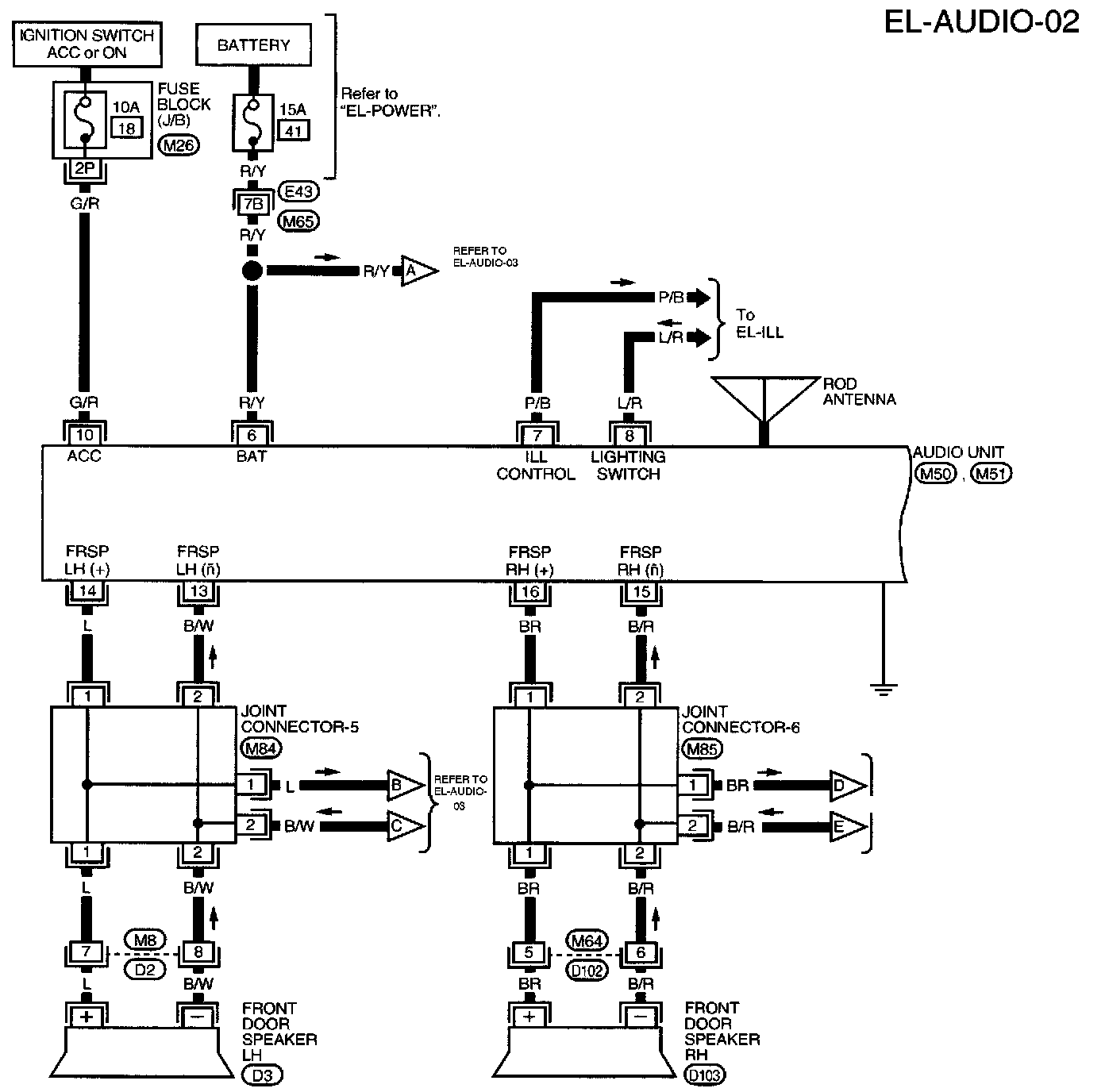

EL-AUDIO-02:

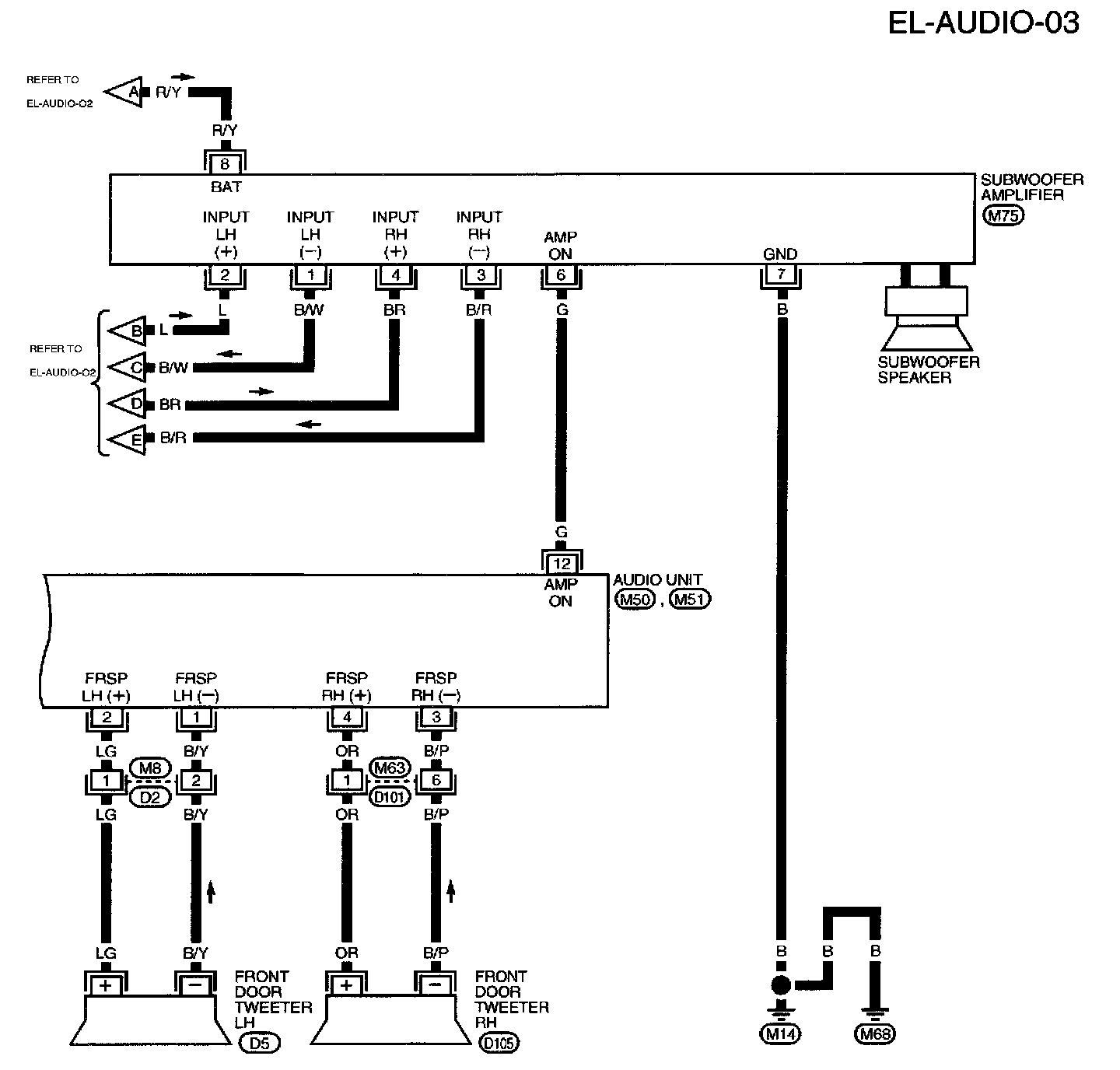

EL-AUDIO-03:




Circuit Diagrams







Circuit Connectors

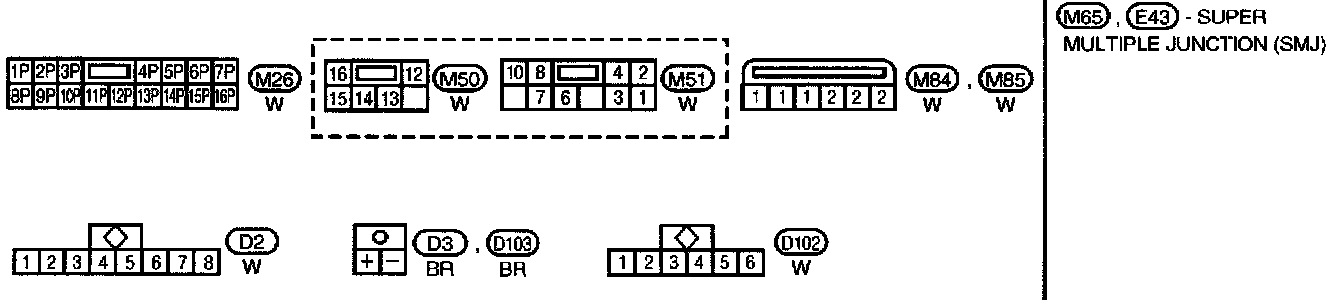

Connector Views:




M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
