Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Connectors >> Engine Room Harness >> Beginning With VIN 343314

Beginning With VIN 343314

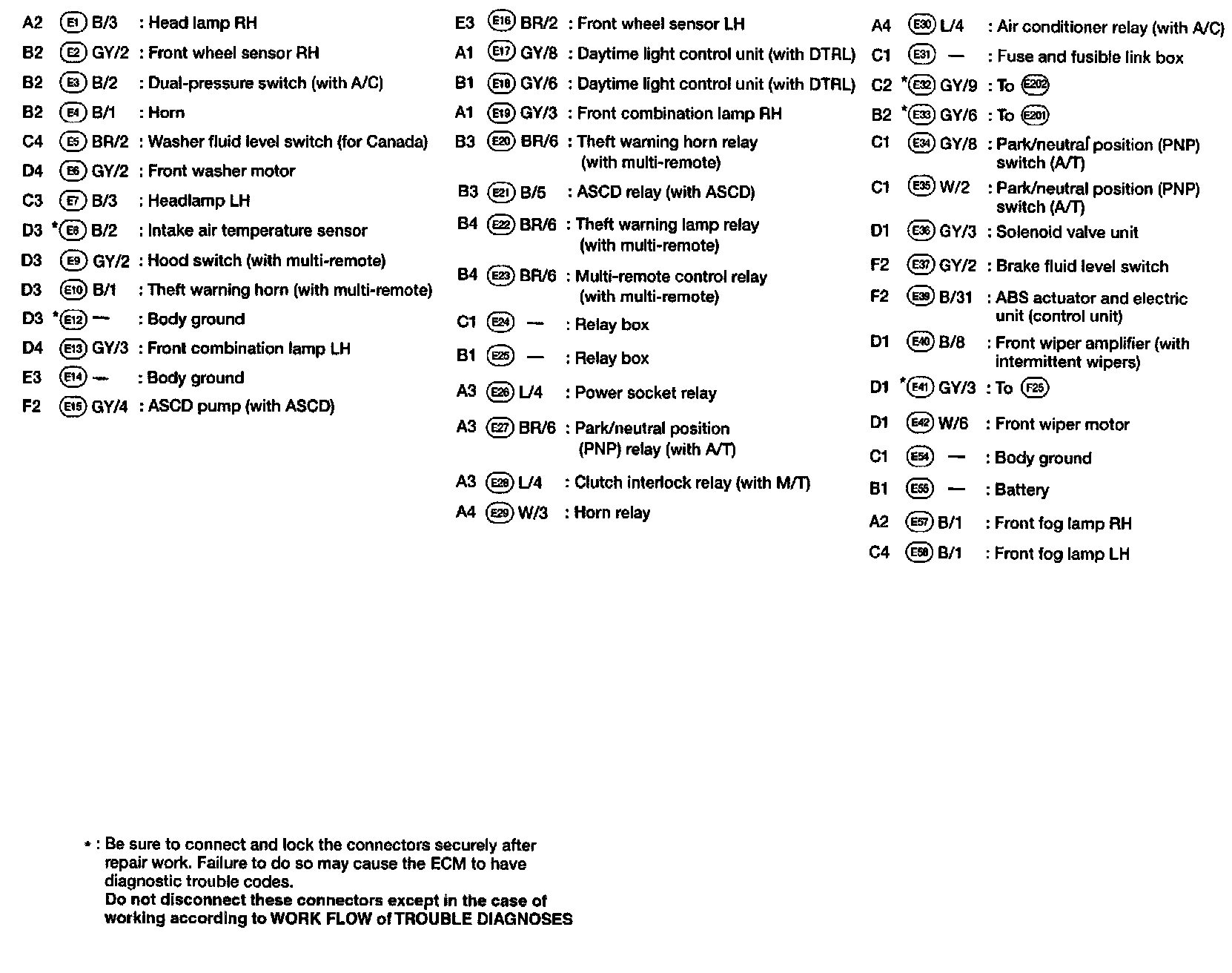

Part 1 Of 2:




Part 2 Of 2:

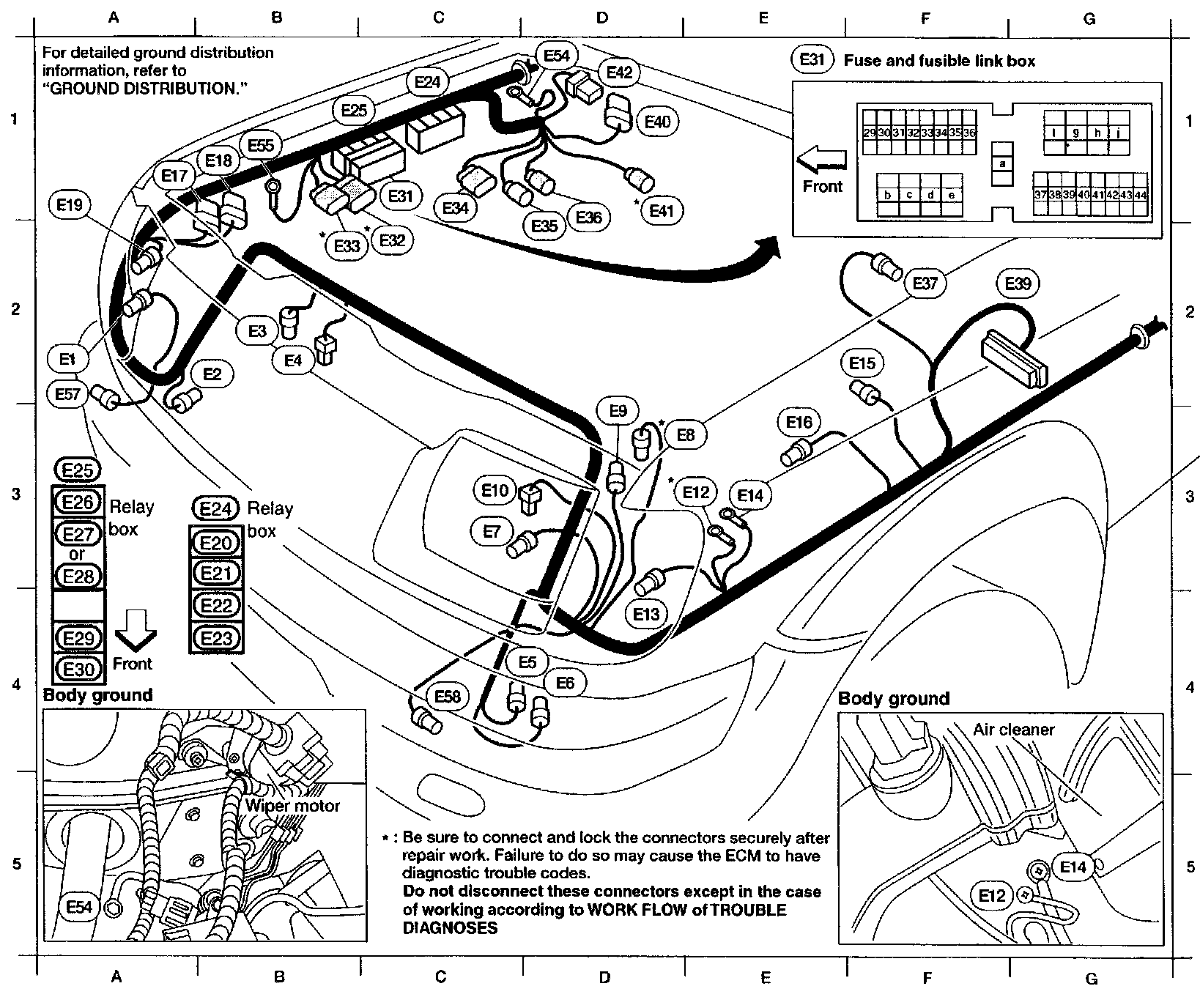

Engine Compartment

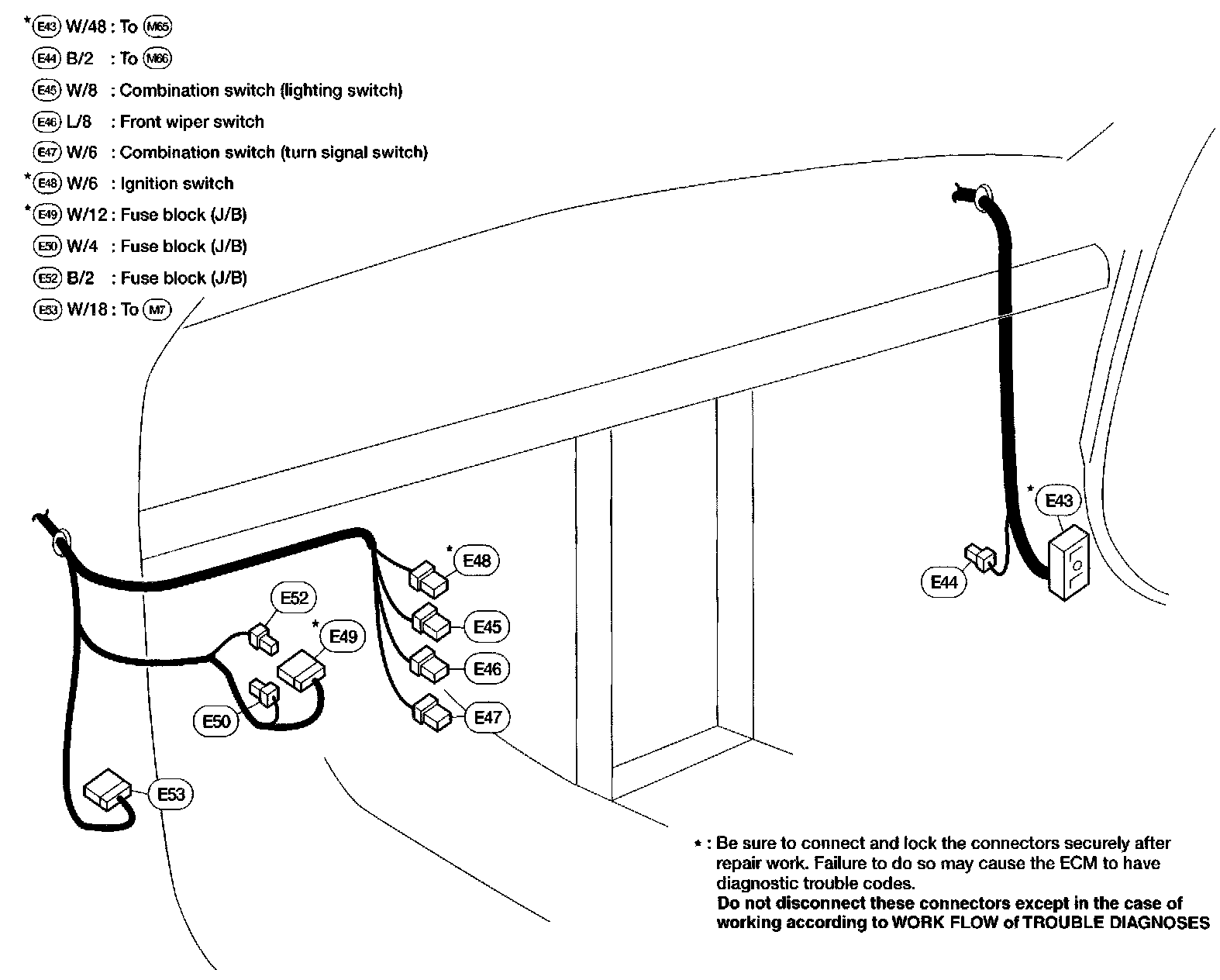

Passenger Compartment
