Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Joint Connector (J/C) >> Before VIN 343314

Before VIN 343314

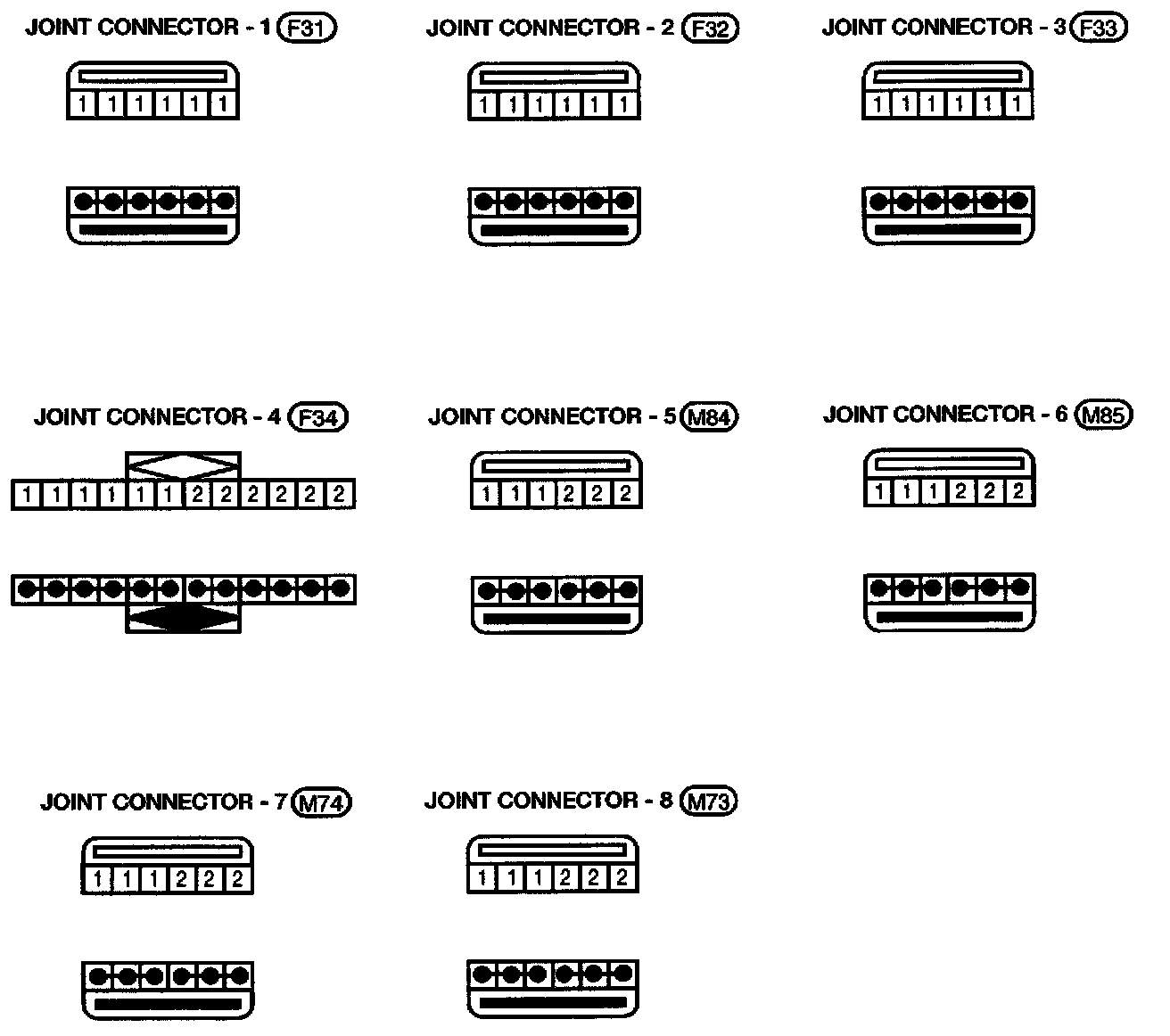

F31, F32, F33, F34, M73, M74, M84, M85 Joint Connector Terminal Arrangement
