Before VIN 343314

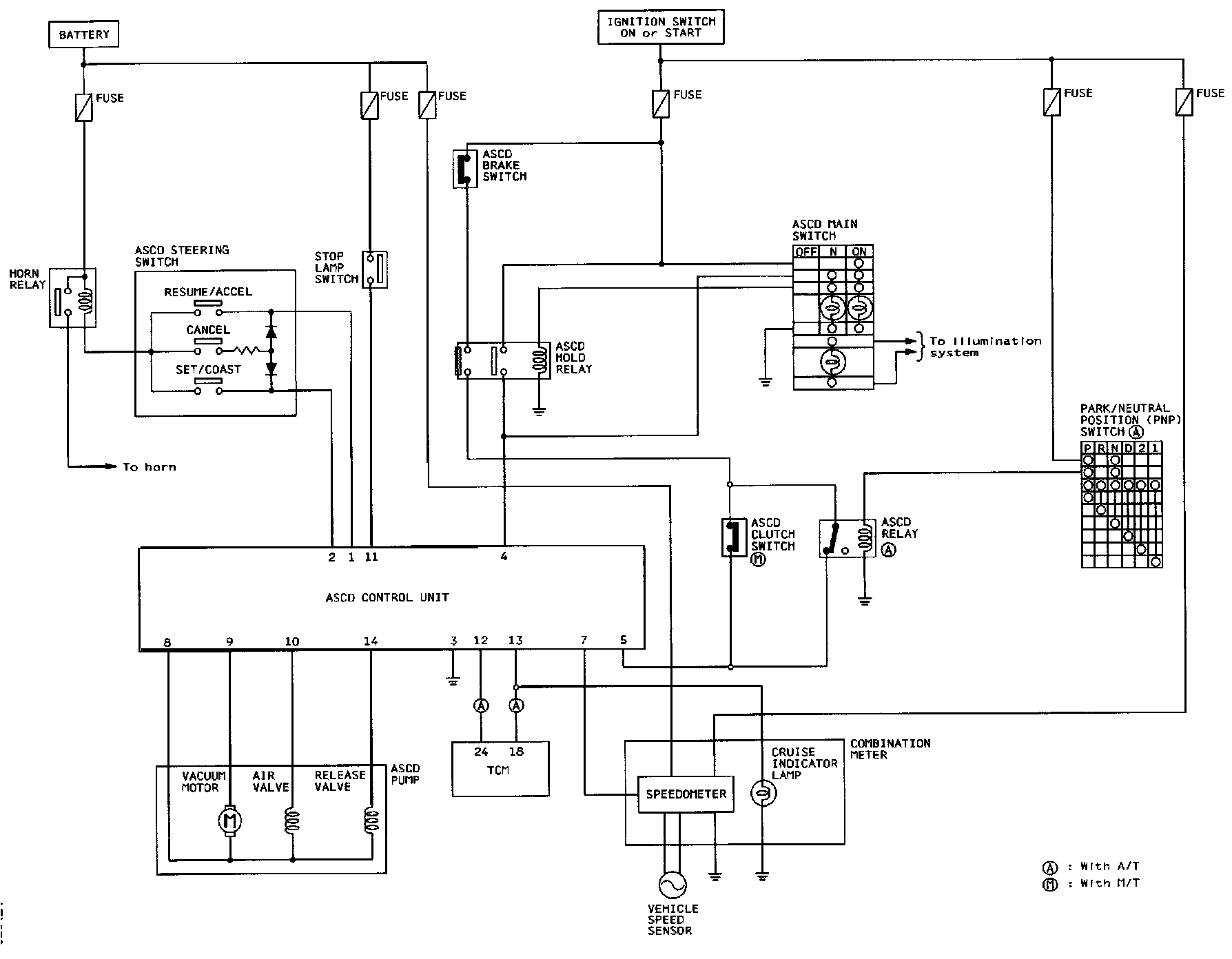

Schematic
EL-ASCD-01:
(Part 1 of 4)
Fuse Block (J/B)
ASCD Main Switch
ASCD Brake Switch
ASCD Hold Relay
ASCD Control Unit
EL-ASCD-02:
(Part 2 of 4)
Park/Neutral Position (PNP) Switch
Fuse Block (J/B)
Stop Lamp Switch
ASCD Clutch Switch
ASCD Relay
ASCD Control Unit
EL-ASCD-03:
(Part 3 of 4)
Horn Relay
ASCD Steering Switch
Spiral Cable
ASCD Control Unit
ASCD Pump
EL-ASCD-04:
(Part 4 of 4)
Vehicle Speed Sensor
Fuse Block (J/B)
Combination Meter
ASCD Control Unit
TCM (TRANSMISSION CONTROL MODULE)
Circuit Diagrams
Circuit Connectors
E43, M65, M77 Super Multiple Junction (SMJ) & Electrical Units Terminal Arrangement
