Beginning With VIN 343314

G SENSOR

CAUTION: The G sensor is easily damaged if it sustains and impact. Be careful not to drop or bump it.

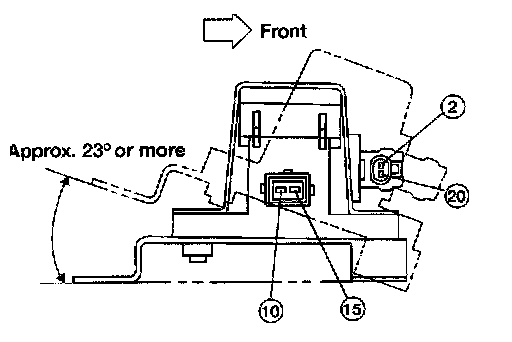

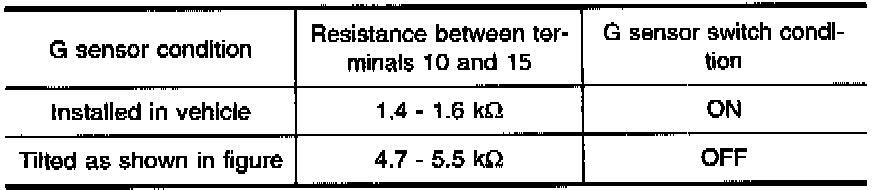

1) Measure resistance between terminals 10 and 15 of G sensor unit connector.





2) Measure resistance between terminals 2 and 20 of the G sensor unit connector.
