Side and Floor Trim

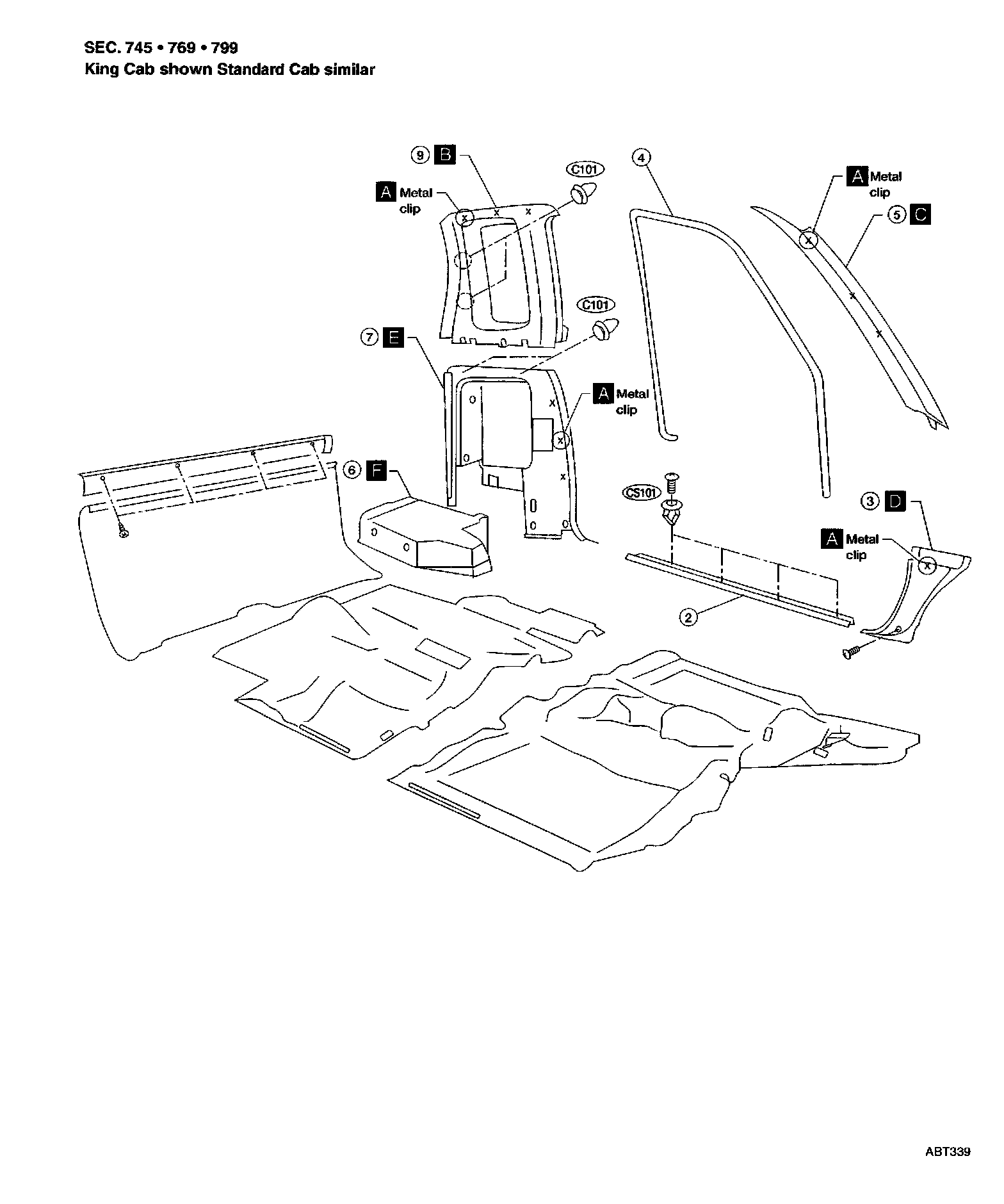

Component Location:

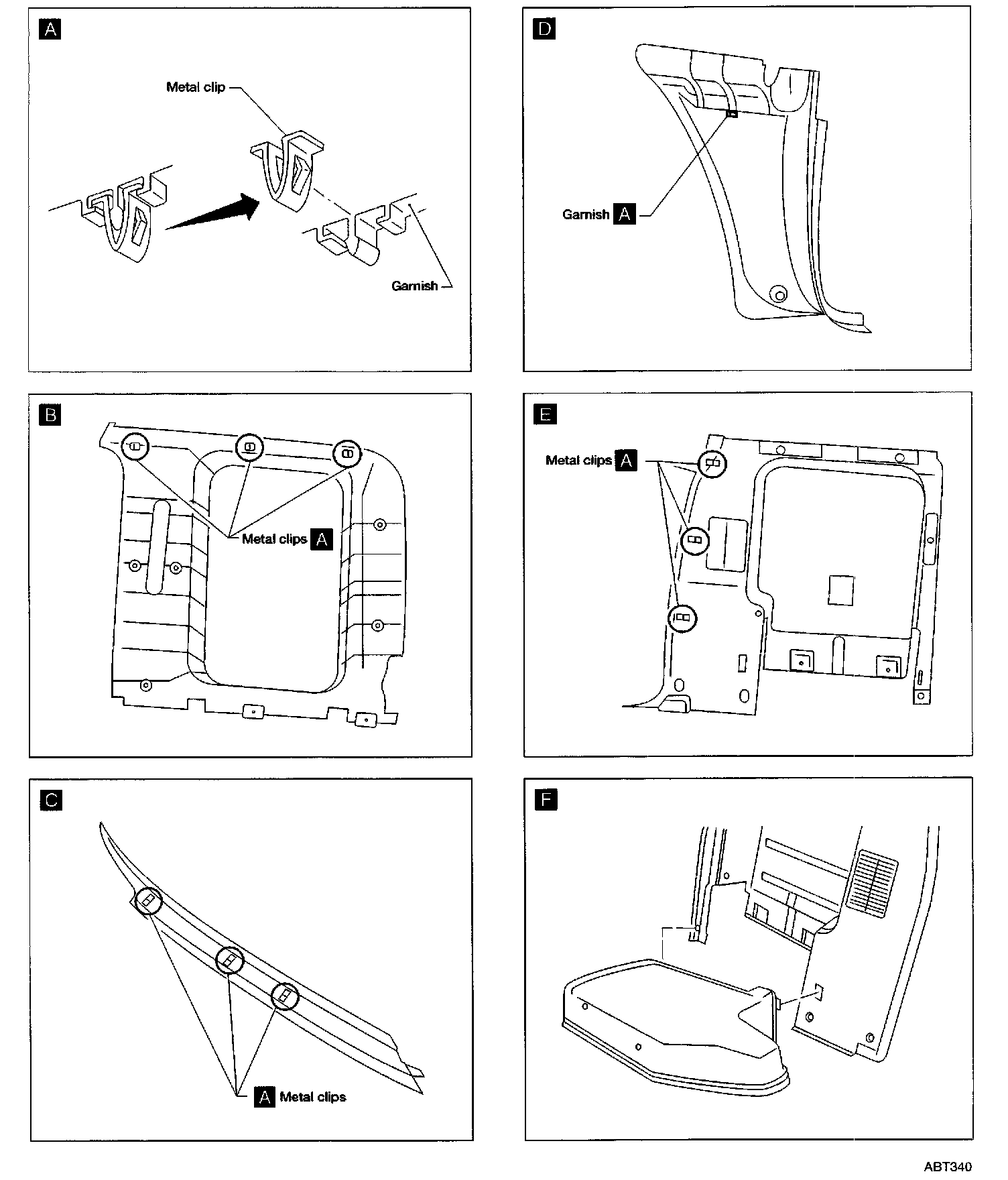

Component Views:

King Cab Model
1. Remove front and jump seats. Refer to "FRONT SEAT" and "REAR SEAT" for details.
2. Remove kicking plates.
3. Remove dash side lower finishers.[D]
4. Remove body side welts.
5. Remove front pillar garnishes.[C]
6. Remove jack cover.[F]
7. Remove lower rear pillar garnishes.[E]
8. Remove seat belt upper guide loop. Refer to "SEAT BELTS".
9. Remove upper rear pillar garnishes.[B]

Regular Cab Model
1. Remove front seats. Refer to "FRONT SEAT" for details.
2. Remove kicking plates.
3. Remove dash side lower finishers.
4. Remove body side welts.
5. Remove front pillar garnishes.
6. Remove seat belt upper guide loop. Refer to, "SEAT BELT".
7. Remove upper rear garnishes.

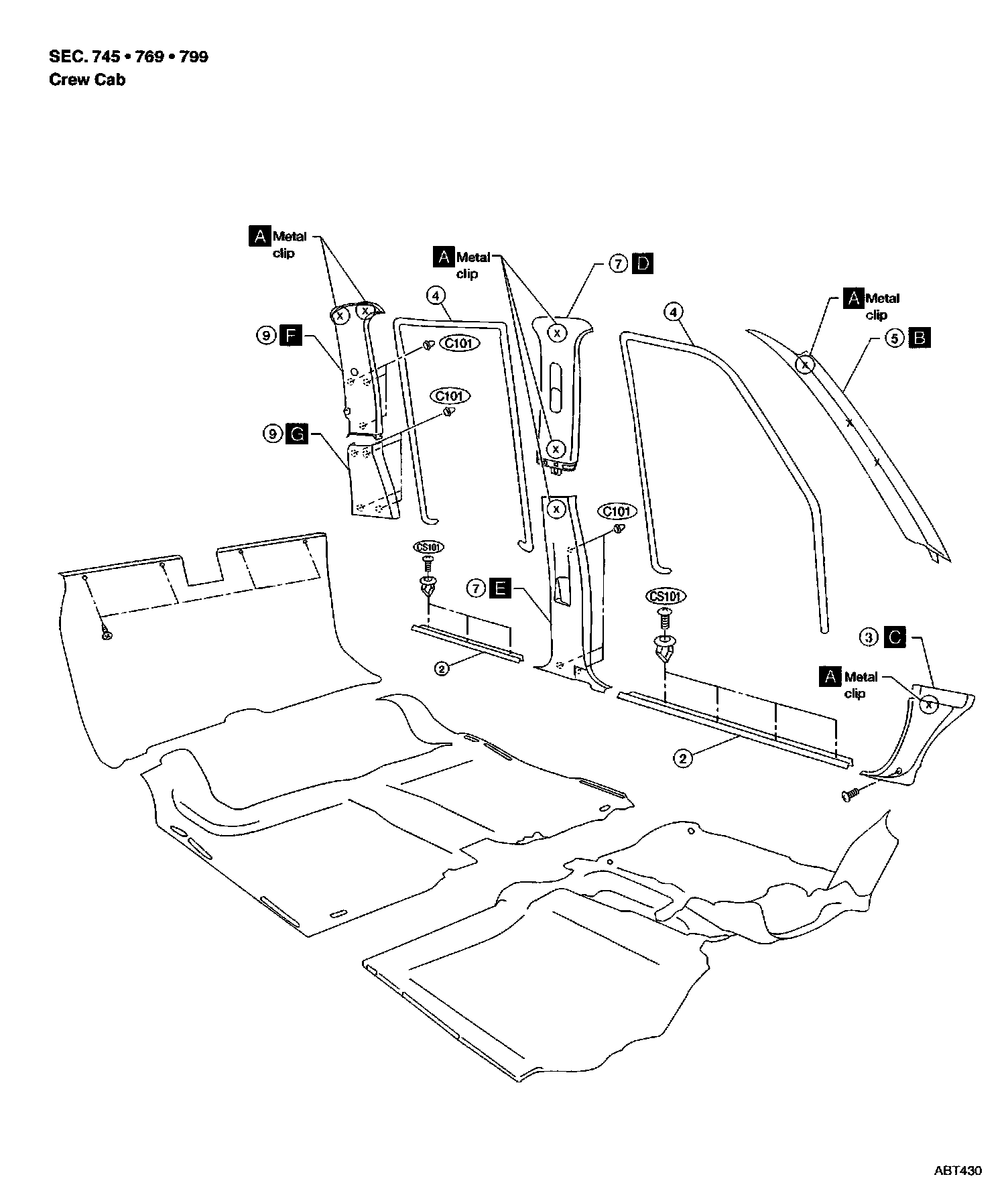

Component Location:

Component Views:

Crew Cab
1. Remove front and rear seats. Refer to "SEAT" for details.
2. Remove kicking plates.
3. Remove dash side lower finishers.[C]
4. Remove body side welts.
5. Remove front pillar garnishes.[B]
6. Remove seat belt upper guide loop on B pillar. Refer to "SEAT BELT'.
7. Remove lower and upper B pillar garnishes.[D] [E]
8. Remove seat belt upper guide loop on C pillar. Refer to "SEAT BELT".
9. Remove lower and upper C pillar garnishes.[F] [G]
