King Cab Shown, Regular Cab Similar

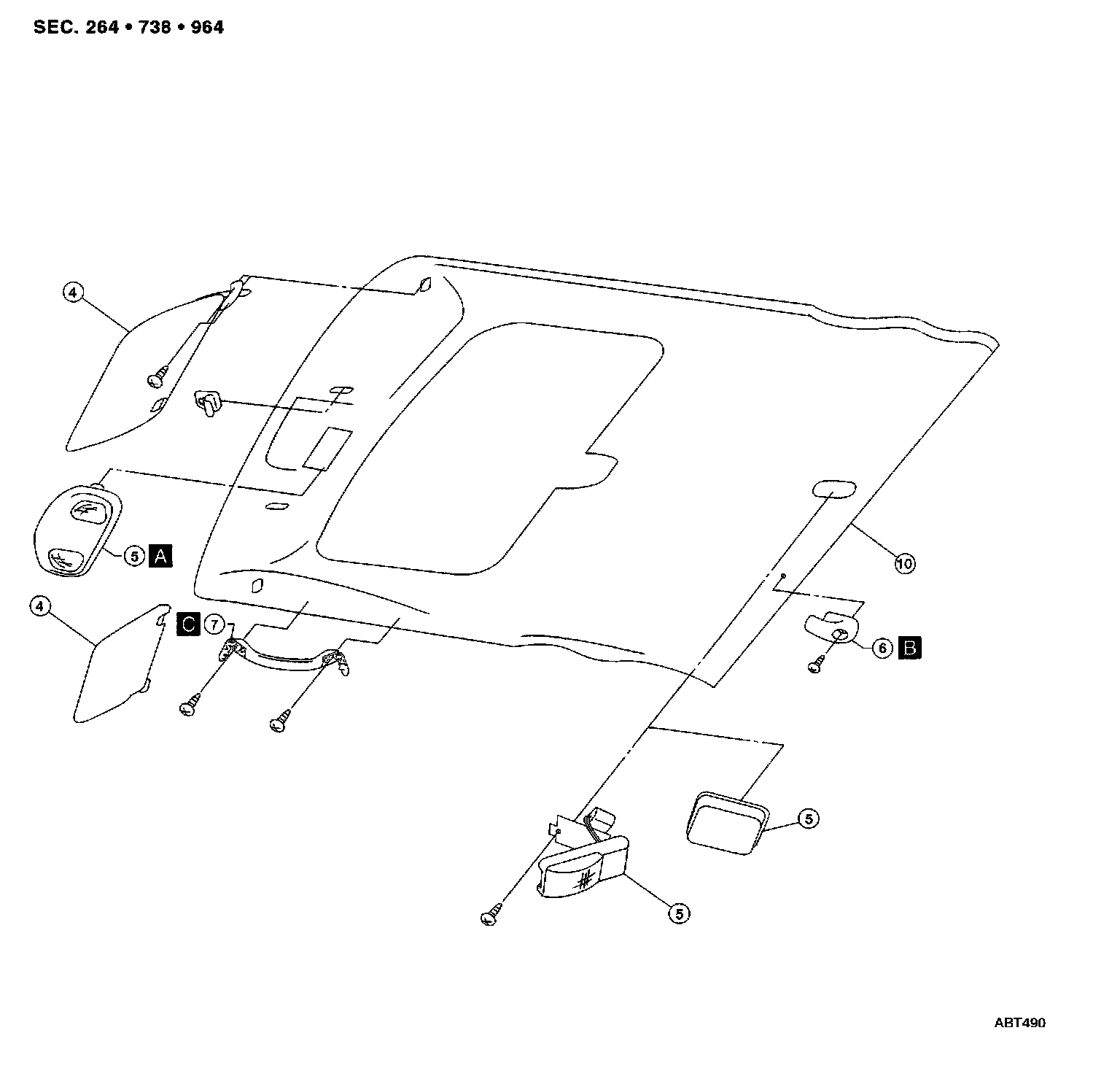

Component Location:

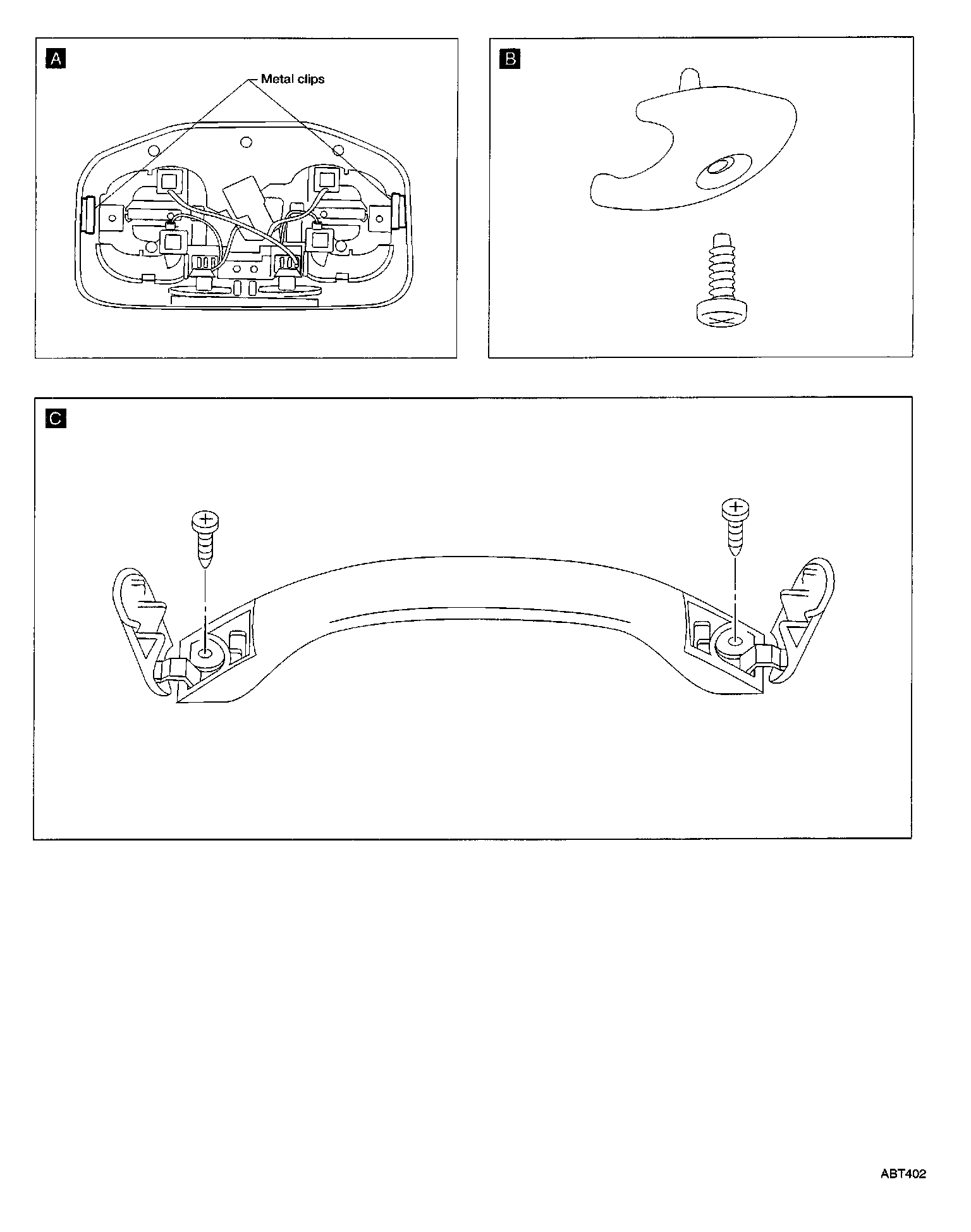

Component Views:

1. Remove front and jump seats if equipped. Refer to "FRONT SEAT"and "REAR SEAT" for details.
2. Remove front seat belt.
3. Remove body side trim. Refer to "Side and Floor Trim" for details.
4. Remove sun visors.
5. Remove interior lamp assembly.[A]
6. Remove coat hook.[B]
7. Remove assist grip if equipped.[C]
8. Remove sunroof if equipped, refer to "SUNROOF" for details.
9. Remove clips securing headlining.
10. Remove headlining.
