Crew Cab

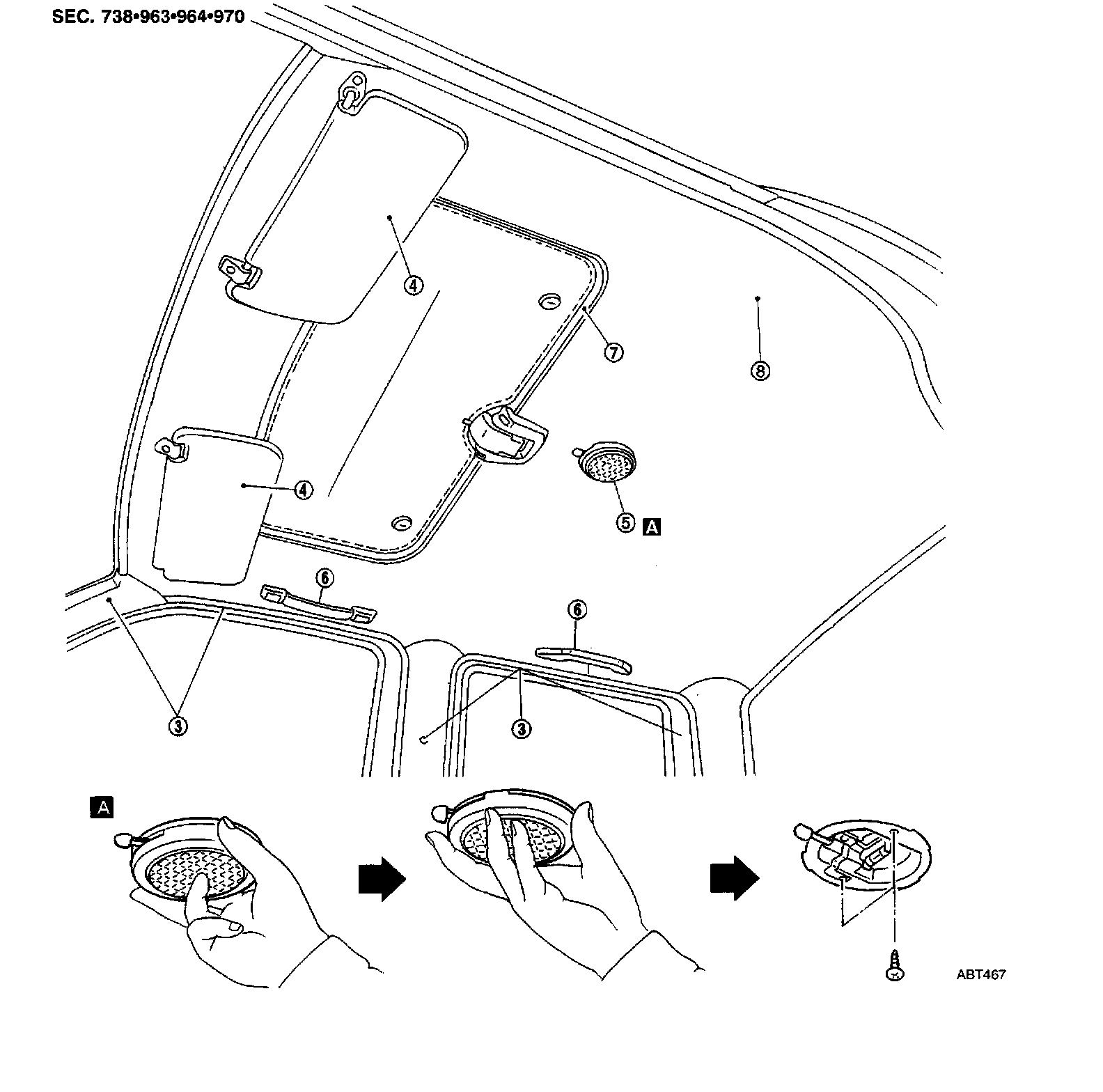

Component Location:

1. Remove front and rear seats. Refer to "FRONT SEAT" and "REAR SEAT"
2. Remove front seat belts.
3. Remove Body side trim. Refer to "Side and Floor Trim" for details,
4. Remove sun visors.
5. Remove interior lamp assembly.[A]
6. Remove assist grips.
7. Remove sunroof welt.
8. Remove headlining.
