Rear Bumper: Service and Repair

- Adjustment : Adjust at hinge portion for proper fit.
- Lock system adjustment : Adjust striker so that it is in the center of the lock. After adjustment, check trunk lid lock operation.
- After installation, make sure that rear gate opens smoothly.

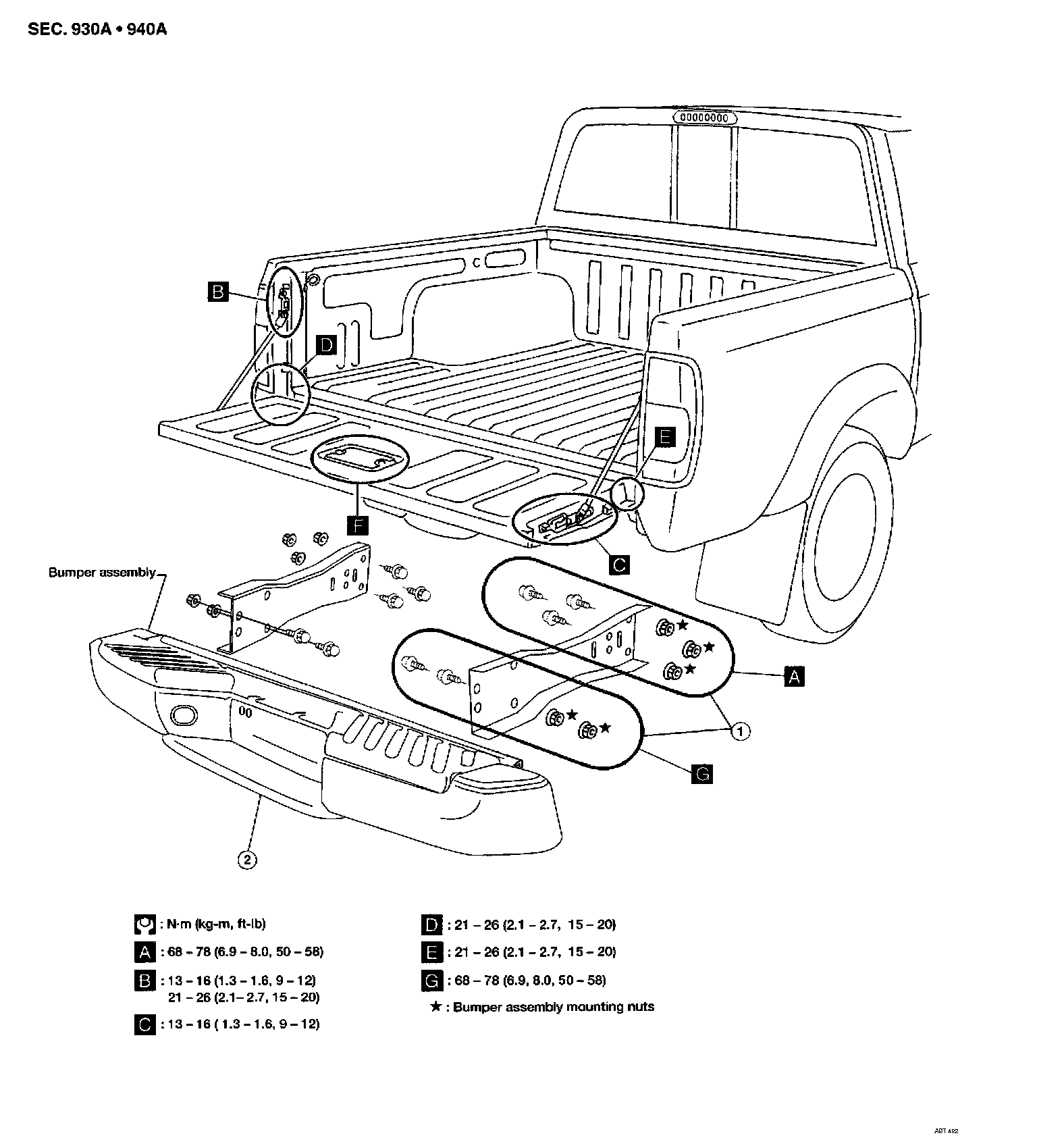

Component Location:

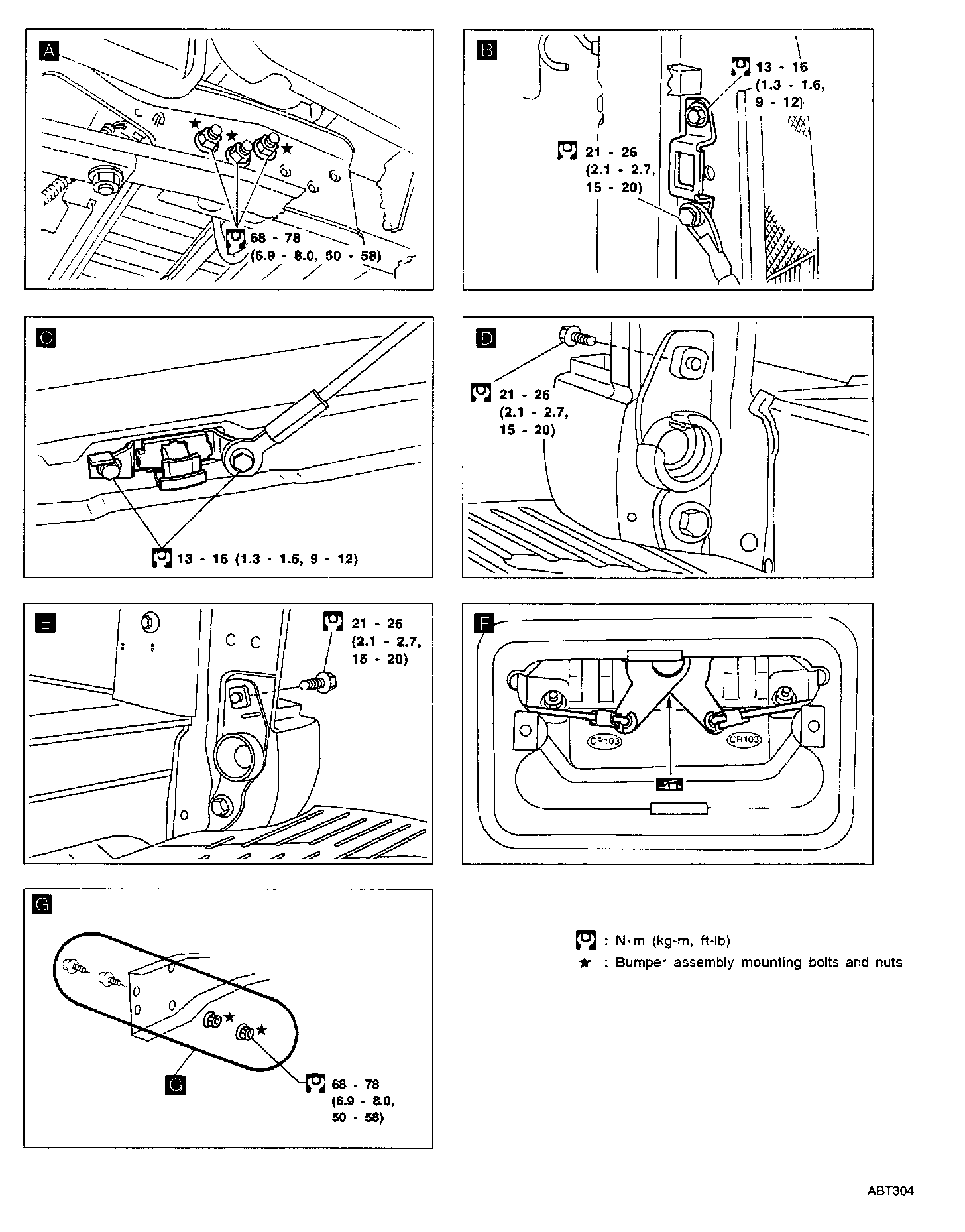

Component Views:

Remove connectors securing license plate lamps.
1. Remove nuts securing bumper side stay. [A] or [G]
2. Remove bumper assembly.
