Before VIN 343314

The following Systems are controlled by the smart entrance control unit.
- Warning chime
- Power door lock
- Multi-remote control system
- Theft warning system
For detailed description and wiring diagrams, refer to the relevant pages for the each system.

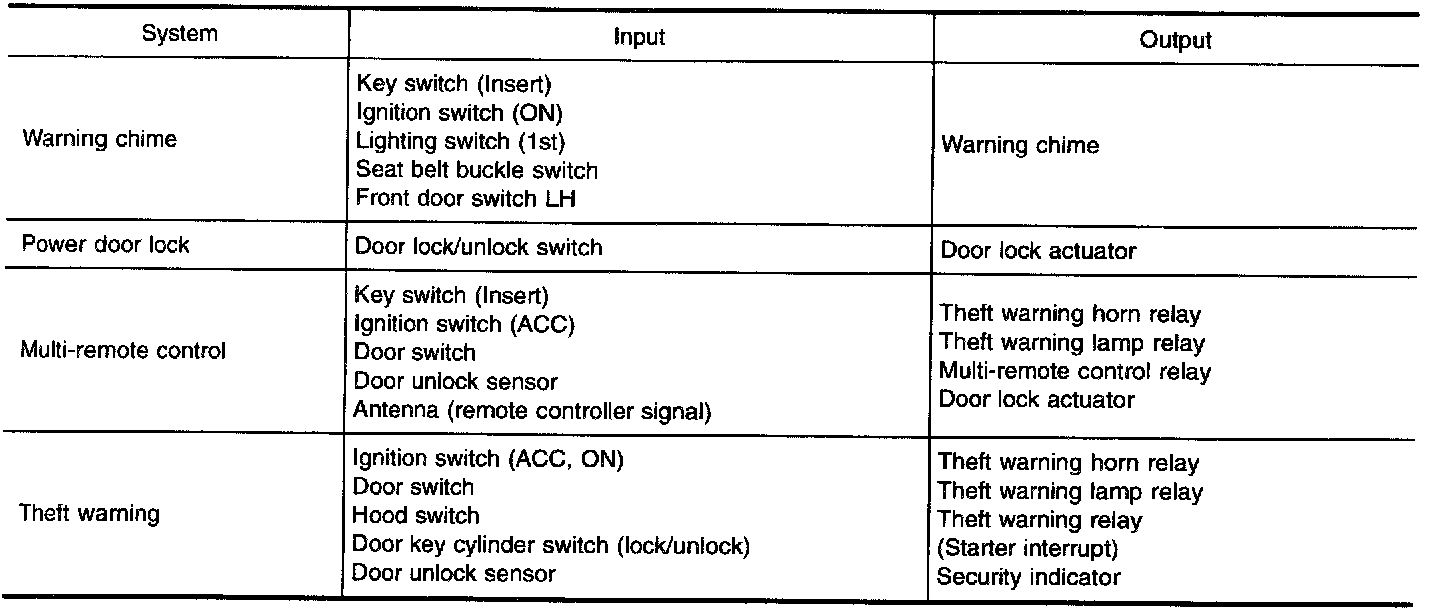

The control unit receives data from the switches and sensors to control their corresponding system relays and actuators.
