Engine Control System

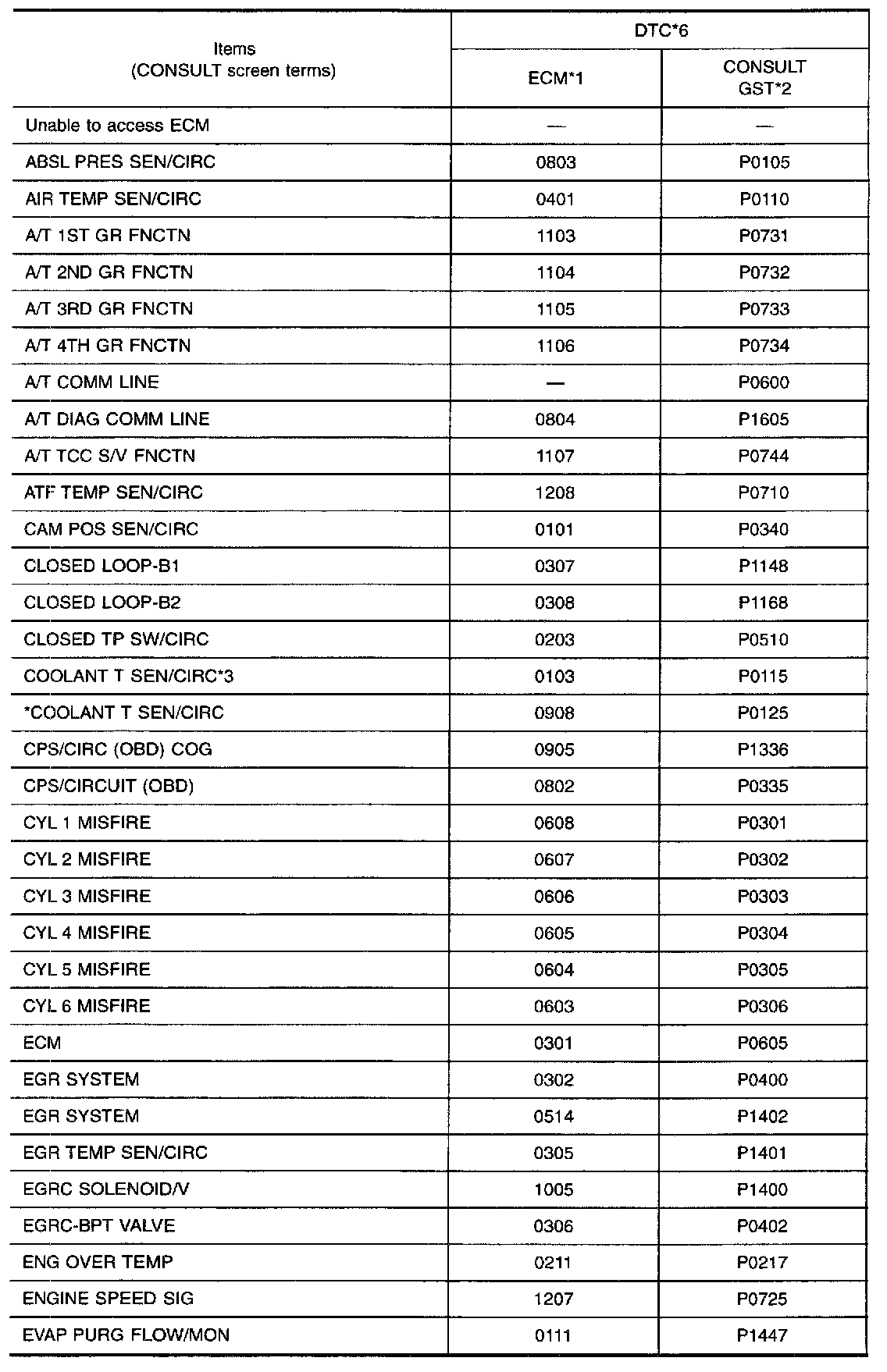

Alphabetical Index For DTC, Part 1 Of 3:

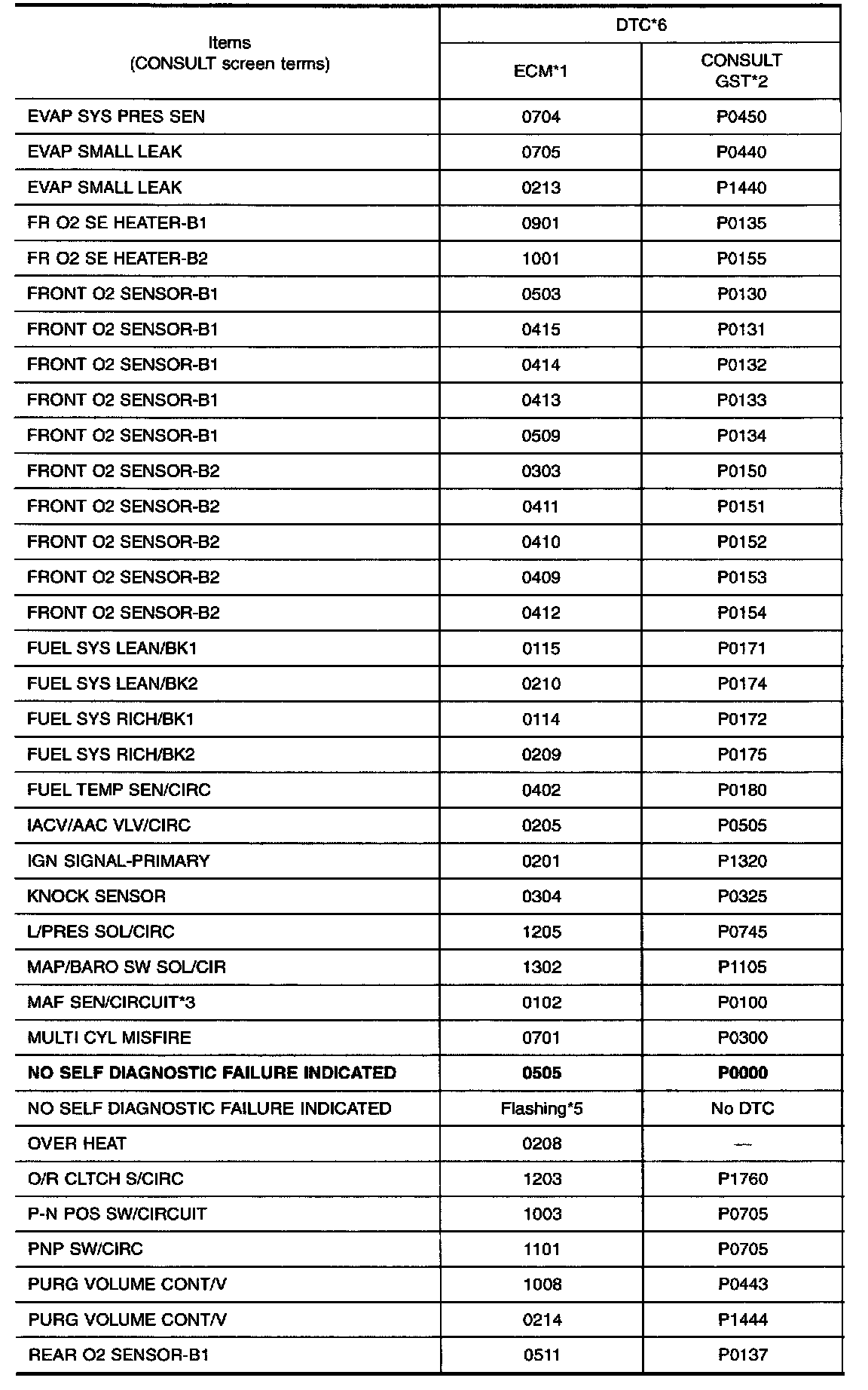

Alphabetical Index For DTC, Part 2 Of 3:

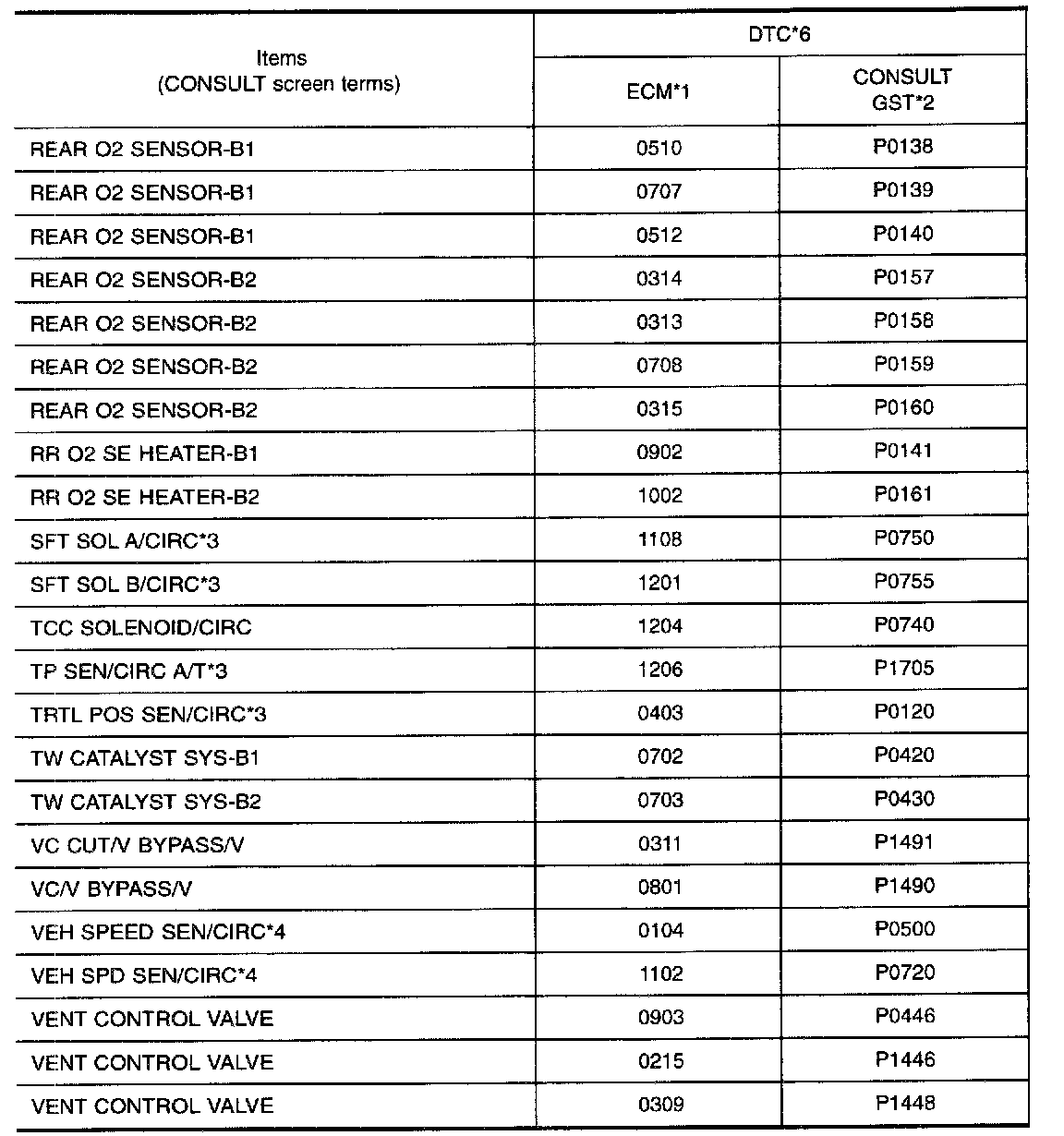

Alphabetical Index For DTC, Part 3 Of 3:

ALPHABETICAL INDEX FOR DTC
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by SAE J2012.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.

NOTE: Regarding D22 models, *-B1* and "BK1" indicate right bank and "-B2" and "BK2" indicate left bank.

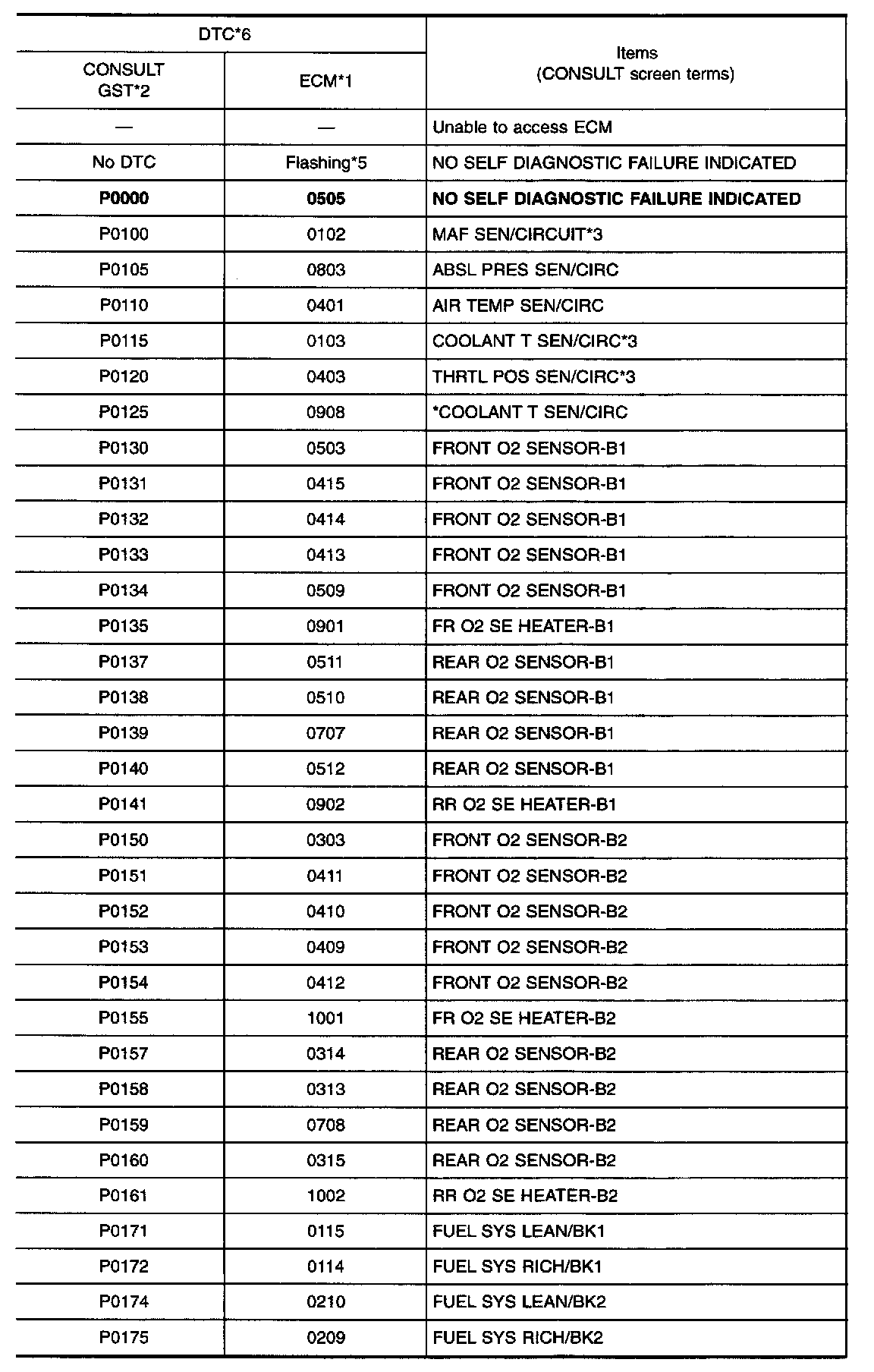

P0000 - P0175:

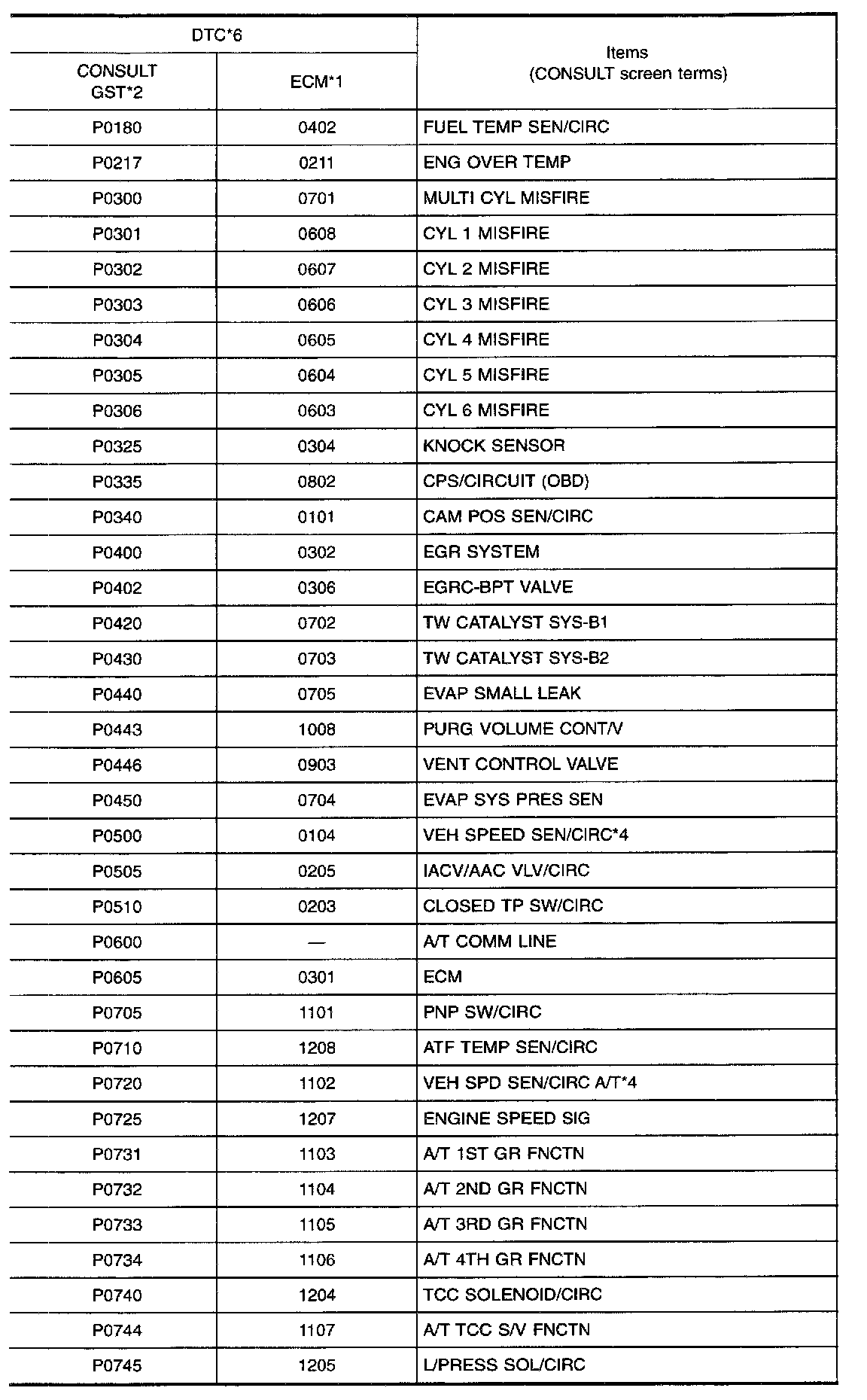

P0180 - P0745:

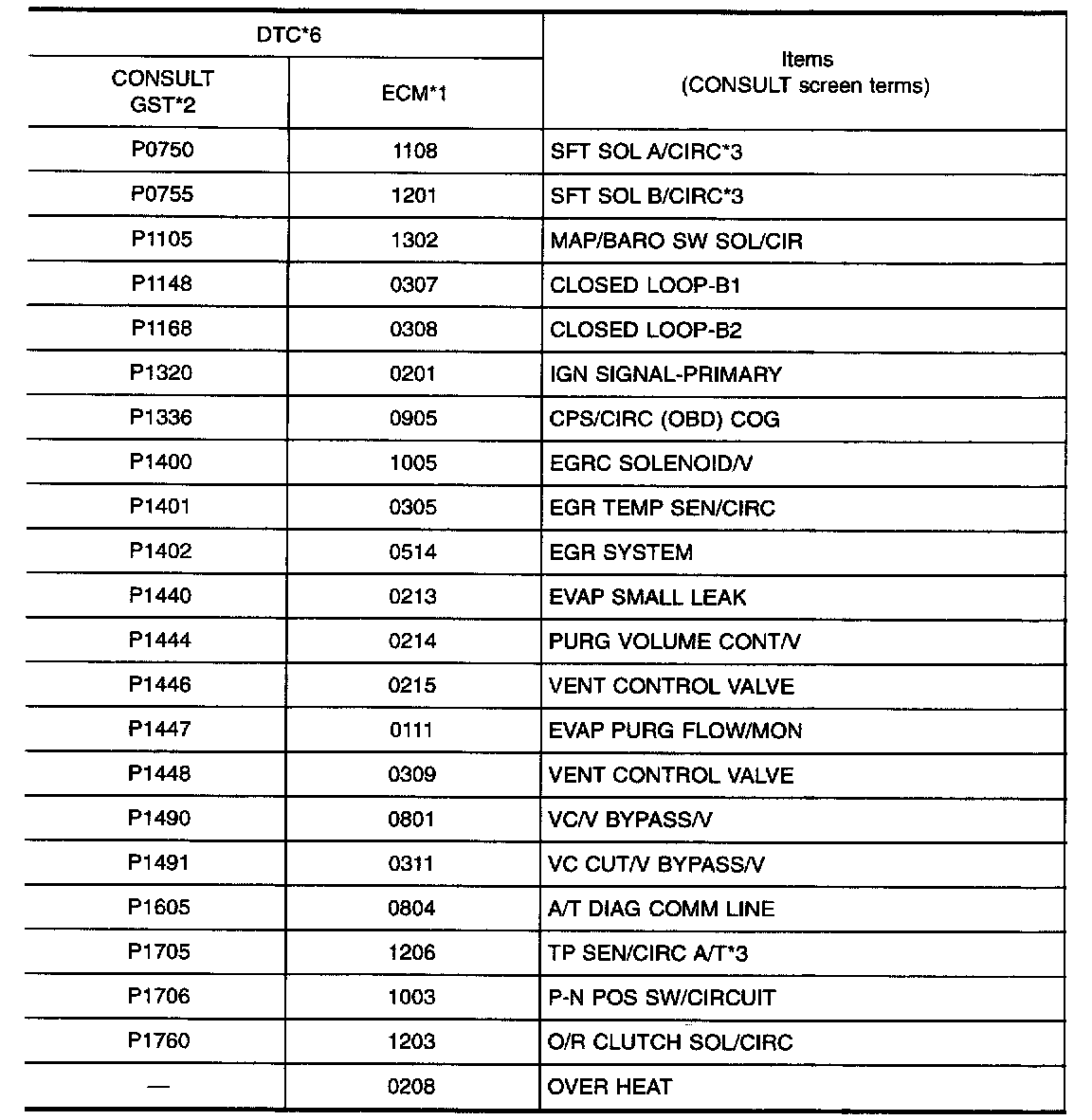

P0750 - P1760:

P NO. INDEX FOR DTC
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by SAE J2012.
*3: When the fail-safe operation occurs, the MIL illuminates.
*4: The MIL illuminates when both the "Revolution sensor signal" and the "Vehicle speed sensor signal" meet the fail-safe condition at the same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.

NOTE:
Regarding D22 models, "-B1" and "BK1" indicate right bank and "-B2" and "BK2" indicate left bank.
