Before VIN #343314
PROPELLER SHAFT VIBRATIONIf vibration is present at high speed, inspect propeller shaft runout
1. Raise rear end of vehicle until wheels are clear of the ground.

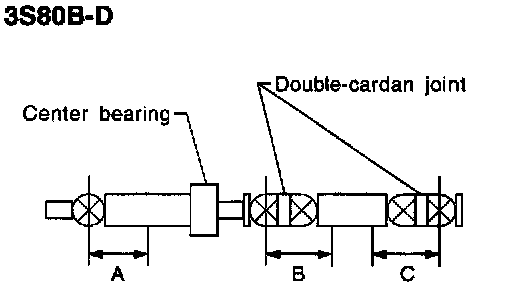

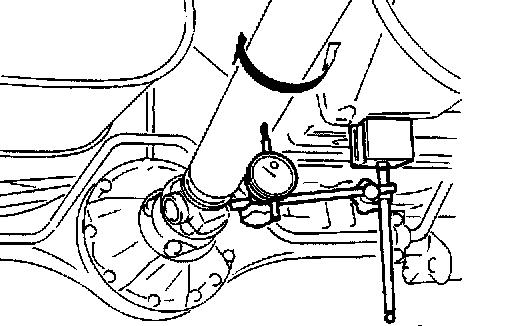

2. Measure propeller shaft runout at several points along propeller shaft by rotating final drive companion flange with hands.
Runout limit: 0.6 mm (0.024 inch)
3. If runout exceeds specifications, disconnect propeller shaft at final drive companion flange; then rotate companion flange 180 degrees and reconnect propeller shaft.
4. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
5. Perform road test.
APPEARANCE CHECKING
- Inspect propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
- If center bearing is noisy or damaged, replace center bearing.
