Before VIN #343314

PREPARATION FOR DISASSEMBLY

CAUTION: Do not run engine when only one wheel (rear) is off the ground.

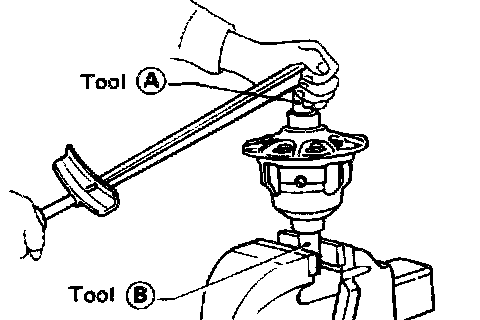

Checking Differential Torque





Measure differential torque with Tool.
If it is not within the specifications, inspect components of limited slip differential.
Differential torque: 187 - 245 Nm (19 - 25 kg-m, 138 - 180 ft. lbs.)
Tool number: A KV38105210 ( - )
Tool number: B KV38105220 ( - )
