Beginning With VIN #343314

Removal and Installation





- Remove release bearing.

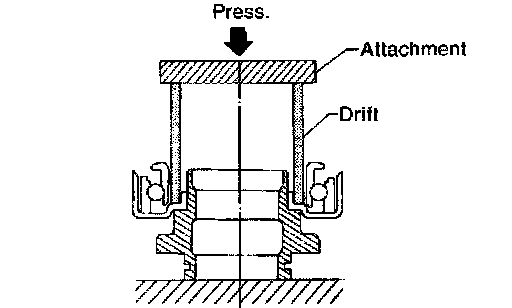

- Install release bearing with suitable drift.

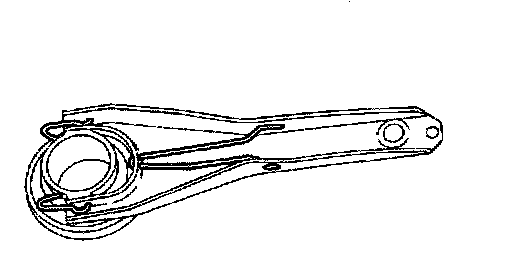

- Install retainer spring and holder spring.

Inspection
Check the following items, and replace if necessary.
- Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear
- Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage





Lubrication

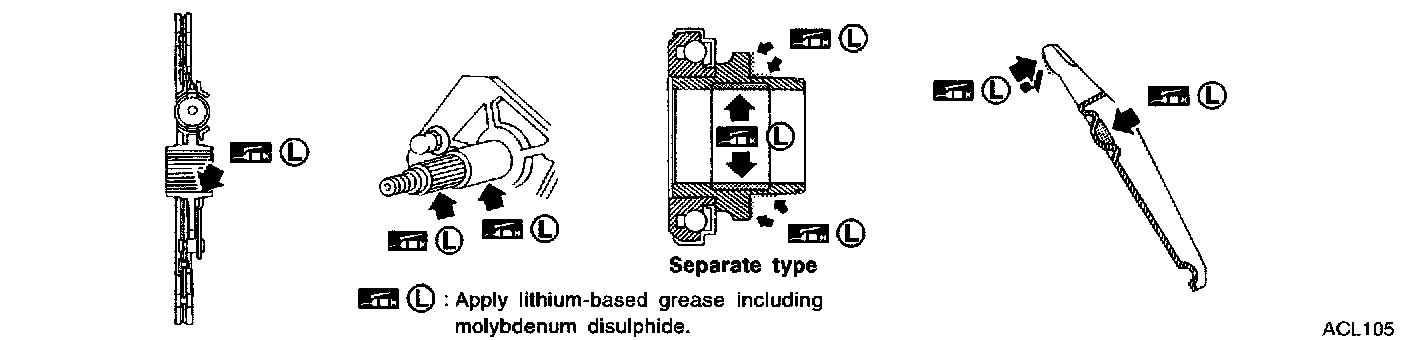

- Apply recommended grease to contact surface and rubbing surface.
- Too much lubricant might damage clutch disc facing damage.





Waterproof - for 4WD Model

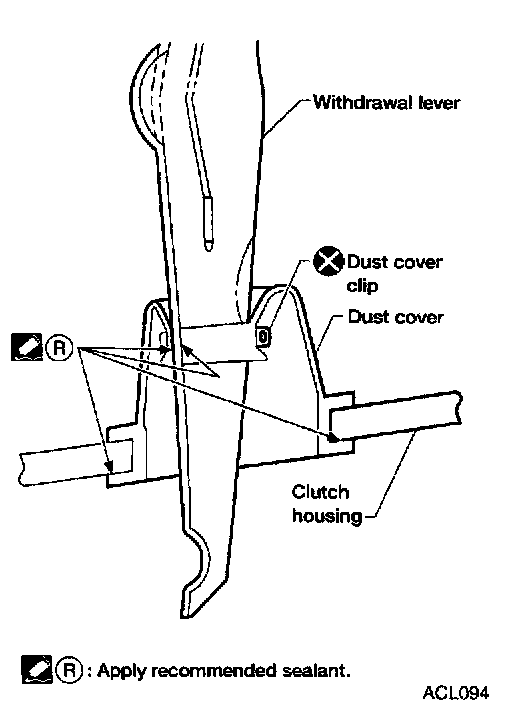

- Apply recommended sealant to contact surface of dust cover to transmission case and withdrawal lever and then install dust cover clip.
Recommended sealant: Nissan genuine part (KP11500100), Three Bond TB1212, Loctite Part Number 51813 or equivalent
