Beginning With VIN #343314

SHIFT LOCK SOLENOID

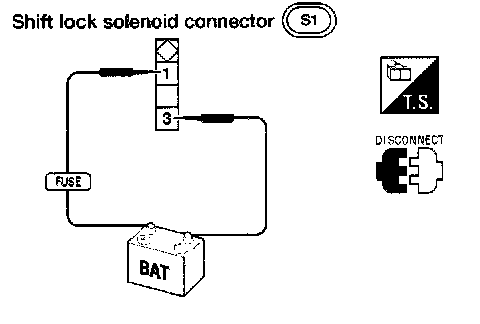

- Check operation by applying battery voltage between shift lock solenoid connector terminals 1 and 3.

PARK POSITION SWITCH

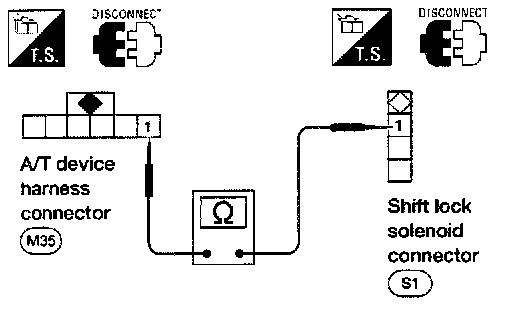

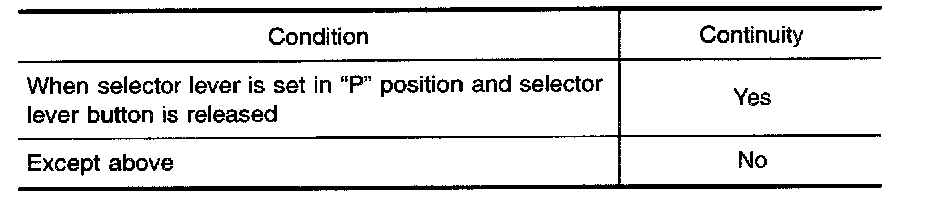

- Check continuity between park position switch harness connector terminal 1 and A/T device harness connector terminal 1.

ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

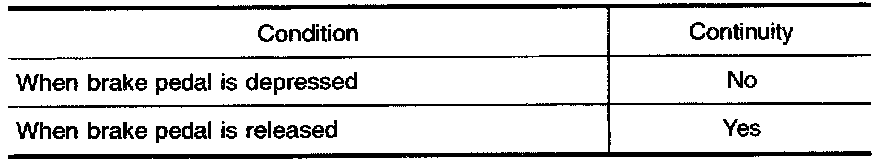

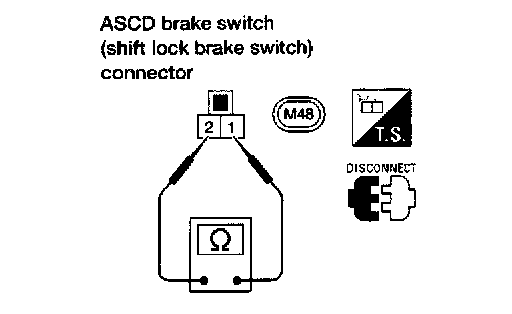

- Check continuity between ASCD brake switch (shift lock brake switch) harness connector terminals 1 and 2.
Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal - refer to Brakes and Traction Control.
