Before VIN #343314

Parking Components Inspection
1. Remove propeller shaft.
2. Remove transfer case from vehicle.

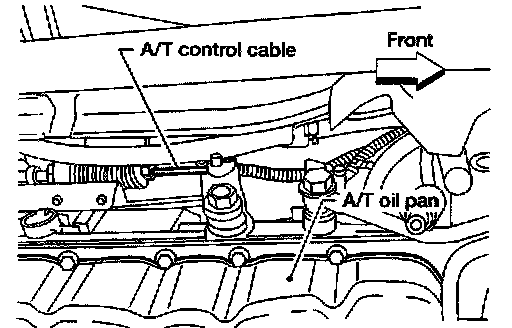

3. Remove A/T control cable bracket from transmission case.
4. Support A/T assembly with a jack.

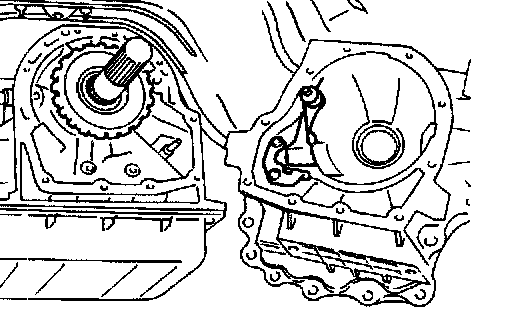

5. Remove adapter case from transmission case.
6. Replace parking components if necessary.
7. Reinstall any part removed.
- Always use new sealing parts.
