Before VIN #343314

FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. - for example, mating surface of converter housing and transmission case.
2. Start engine, apply foot brake, place selector lever in D position and A/T a few minutes.
3. Stop engine.
4. Check for fresh leakage.

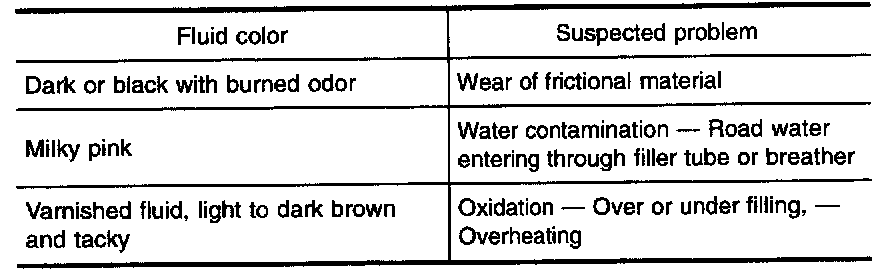

FLUID CONDITION CHECK
