Before VIN 343314

REAR SUSPENSION PARTS

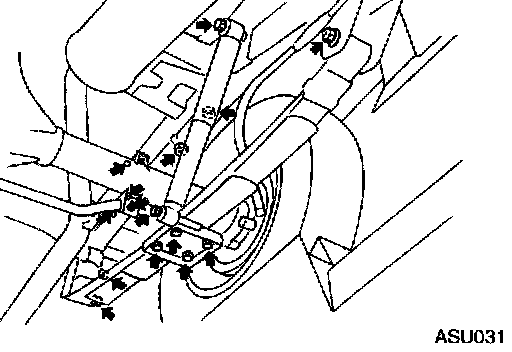

Check rear suspension parts for excessive play, wear and damage.





^ Shake each rear wheel to check for excessive play.





^ Retighten all nuts and bolts to the specified torque.
Refer to Diagrams; Exploded Views.

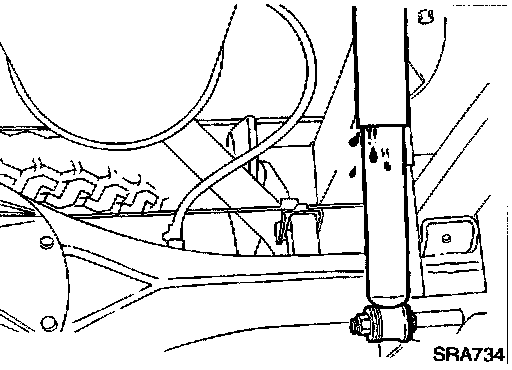

^ Check shock absorber for oil leakage and other damage.
^ Check shock absorber bushing for excessive wear and other damage.
