Before VIN 343314

FRONT SUSPENSION PARTS
Check front suspension parts for excessive play, cracks, wear and other damage.

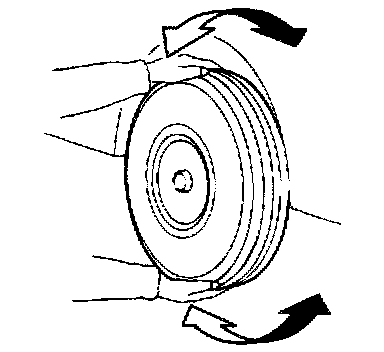

^ Shake each front wheel to check for excessive play. If looseness is noted, adjust wheel bearing end play, then check ball joint end play.
^ Make sure that the cotter pin is inserted.

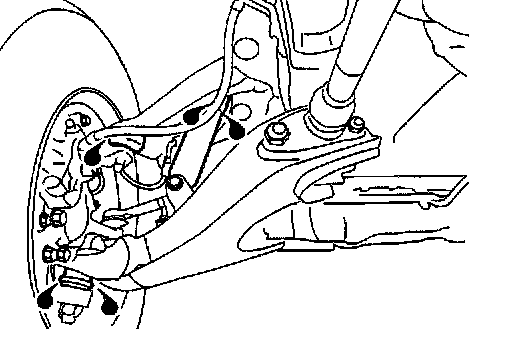

^ Retighten all nuts and bolts to the specified torque.





^ Check shock absorber for oil leakage and other damage.
^ Check suspension ball joint for grease leakage and ball joint dust cover for cracks and other damage.
