Before VIN 343314

REMOVAL

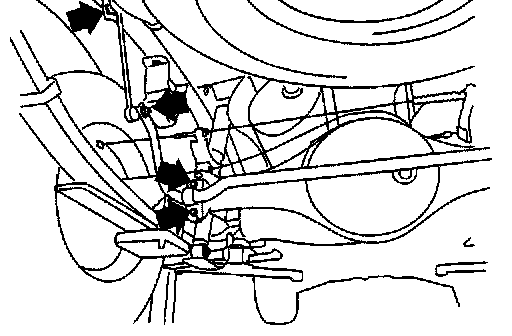

Remove stabilizer bar connecting bolts and clamp bolts.

INSPECTION
^ Check stabilizer bar for twist and deformation.
^ Check rubber bushing for cracks, wear and deterioration. Replace if necessary.

INSTALLATION
^ Install bushing outside of white mark painted on stabilizer.
