Radius Arm: Service and Repair

REMOVAL AND INSTALLATION

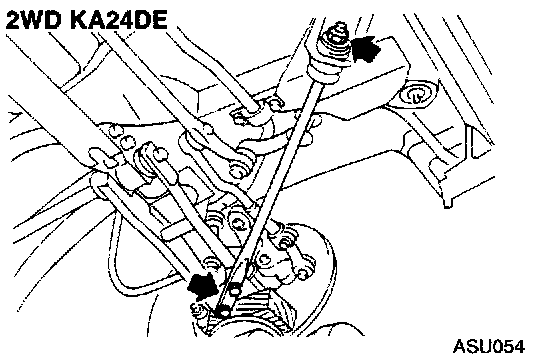

1. Remove fixing nuts on lower link and frame. Support lower link with jack.





2. Install tension rod.

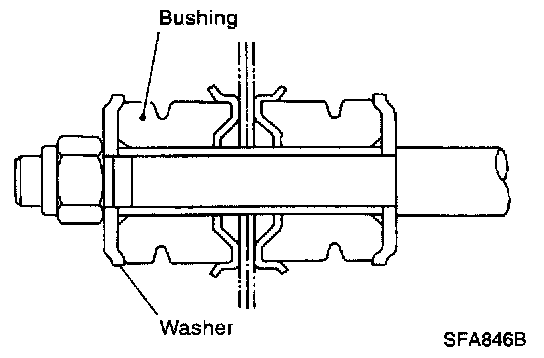

Make sure that the bushings and washers are installed properly.

INSPECTION
^ Check tension rod for deformation and cracks. Replace if necessary.
^ Check rubber bushings for damage. Replace if necessary.
