Before VIN 343314

REMOVAL AND INSTALLATION








1. Remove torsion bar spring.

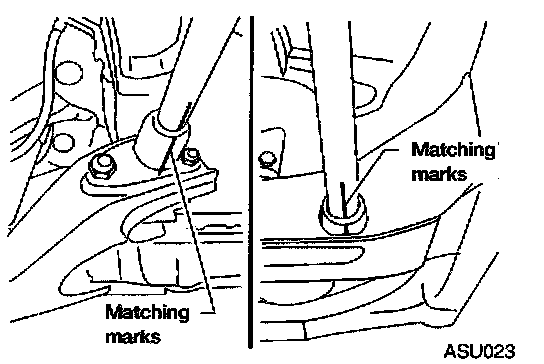

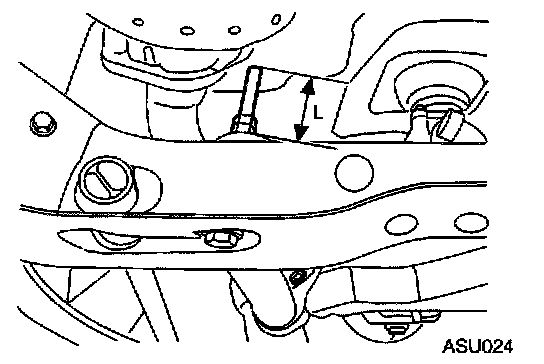

Make matching marks and measure dimension "L" when loosening adjusting nut until there is no tension on torsion bar spring.
2. Remove shock absorber lower fixing bolt.
3. Remove stabilizer bar connecting bolt.
4. Separate drive shaft from front final drive (4WD models).
5. Separate lower link ball joint from knuckle spindle.

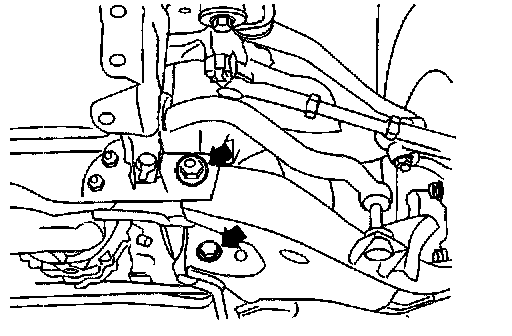

6. Remove front lower link fixing nut.

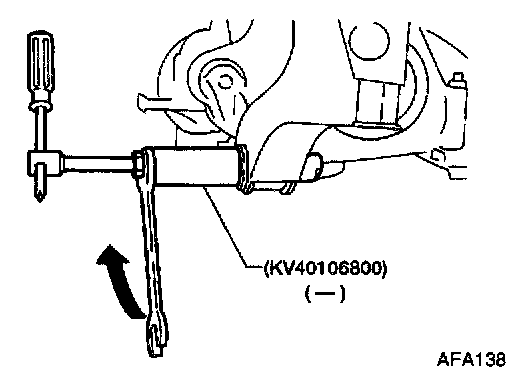

7. Remove bushing of lower link spindle from frame with Tool.
8. After installing lower link, adjust wheel alignment and vehicle height.

INSPECTION
Lower Link and Lower Link Spindle
^ Check for deformation and cracks. Replace if necessary.

Lower Link Bushing
^ Check for distortion and damage. Replace if necessary.
