Model: D600

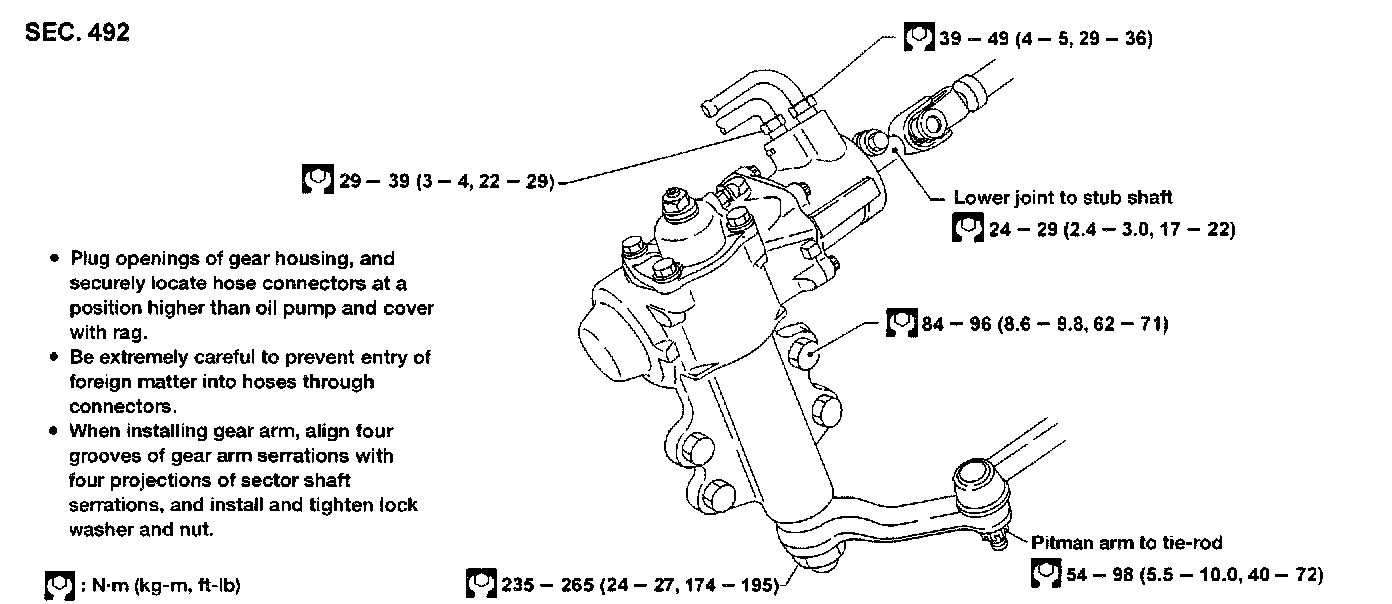

Removal and Installation
Before removal, clean gear housing and oil pump exteriors using a steam cleaner, then dry with compressed air.





Inspection and Adjustment
Before replacing power steering, make sure there is no oil leakage around sealing portion and check steering turning torque as follows:
Check sealing portion.
^ Sector shaft cover O-ring
^ Sector shaft U-packing
^ Sector shaft oil seal
^ Rear housing O-ring
^ Gear housing O-ring

TURNING TORQUE MEASUREMENT
1. Measure turning torque at 360° position.

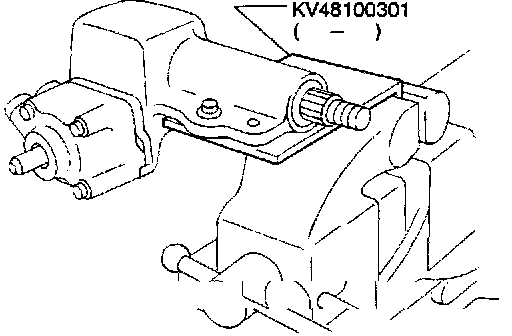

a. Install steering gear on Tool.
b. Turn stub shaft all the way to right and left several times.

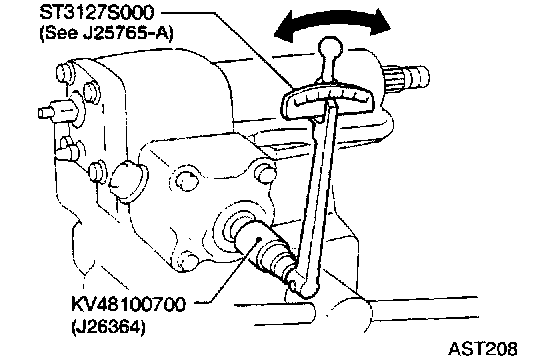

c. Measure turning torque at 360° position from straight-ahead position with Tools.
Turning torque at 360°:
0.20 - 0.90 Nm (2.0 - 92 kg-cm, 1.8 - 8.0 inch lbs.)





d. Measure turning torque at straight-ahead position.
Straight-ahead position is a position where stub shaft is turned 1.93 turns (two full turns and 50°) from lock position.
Turning torque at straight-ahead position: 0.45 - 3.88 Nm (4.6 - 8.2 kg-cm, 4.0 - 7.1 inch lbs.) higher than turning torque at 360°
Maximum turning torque: 1.7 Nm (17.8 kg-cm, 15.0 inch lbs.)
If turning torque is not within specifications, adjust by turning sector shaft adjusting screw.

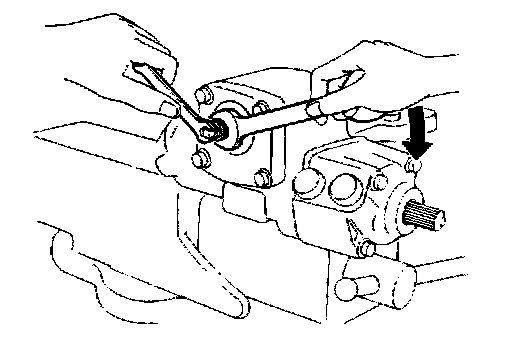

2. Tighten adjusting screw lock nut with tools.
