With IC Regulator

Trouble Diagnoses





With IC Regulator

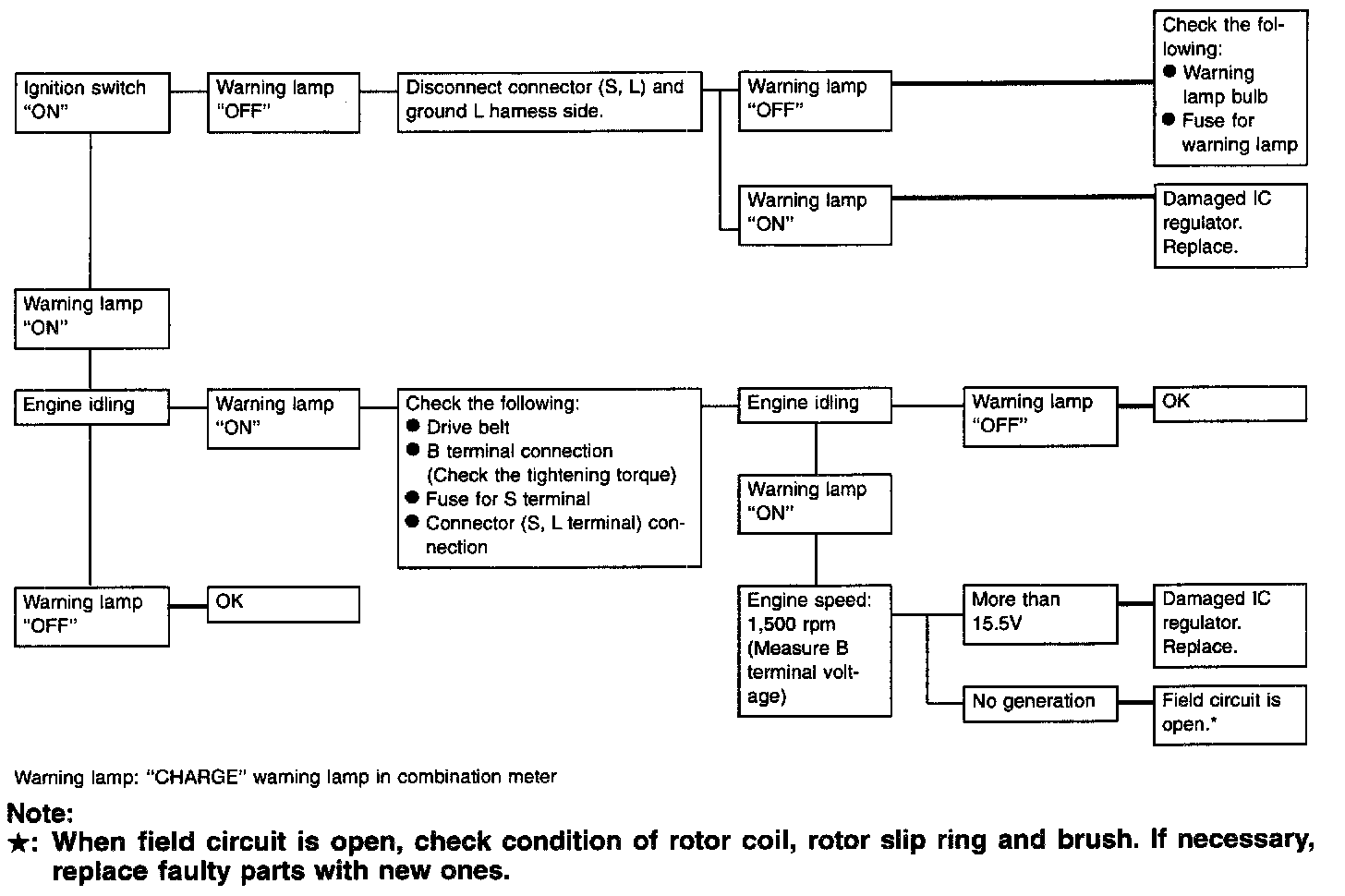

Before conducting a generator test, make sure that the battery is fully charged. A 30 volt voltmeter and suitable test probes are necessary for the test. The generator can be checked easily by referring to the Inspection Table.
- Before starting, inspect the fusible link.
- Use fully charged battery.

MALFUNCTION INDICATOR
The IC regulator warning function activates to illuminate "CHARGE" warning lamp, if any of the following symptoms occur while generator is operating:
- Excessive voltage is produced.
- No voltage is produced.
