System Specifications

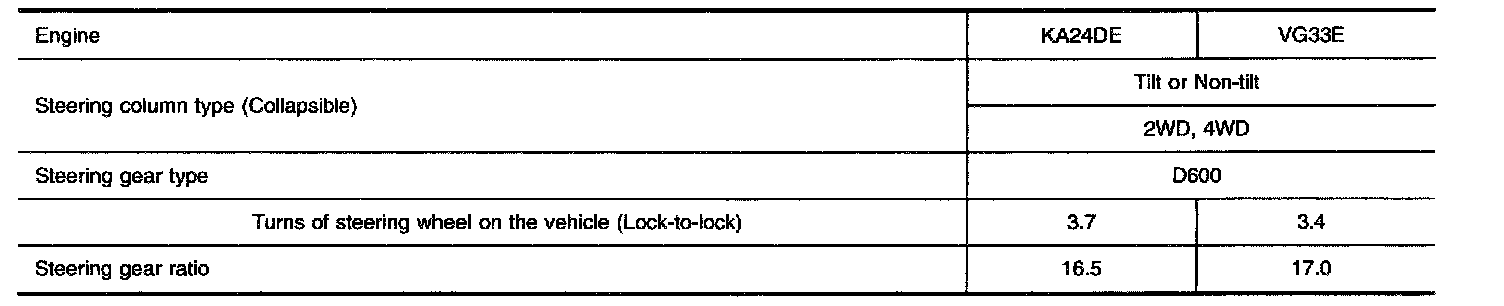

General Specifications

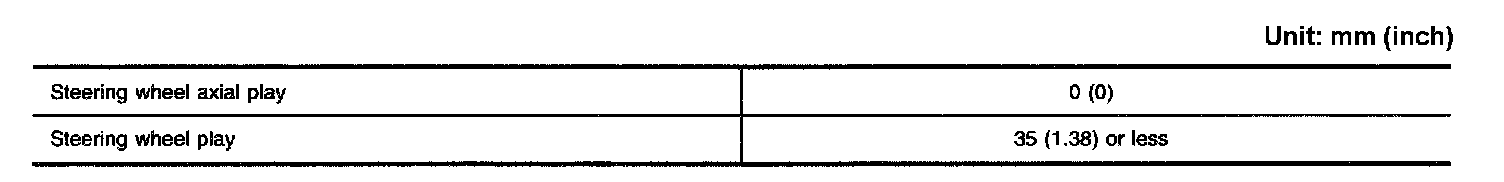

Steering Wheel

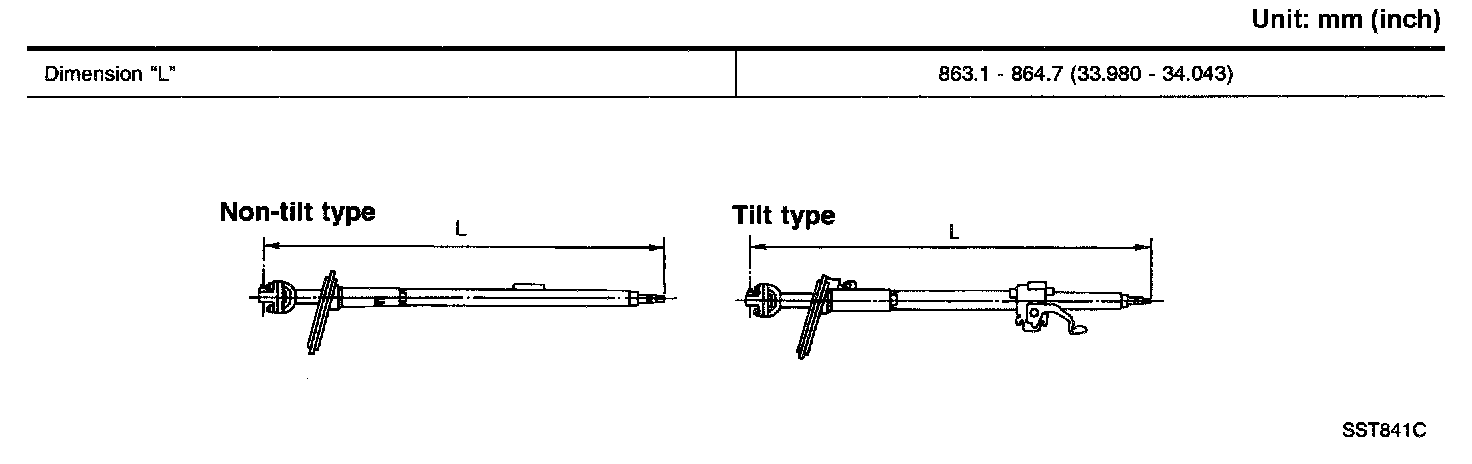

Steering Column

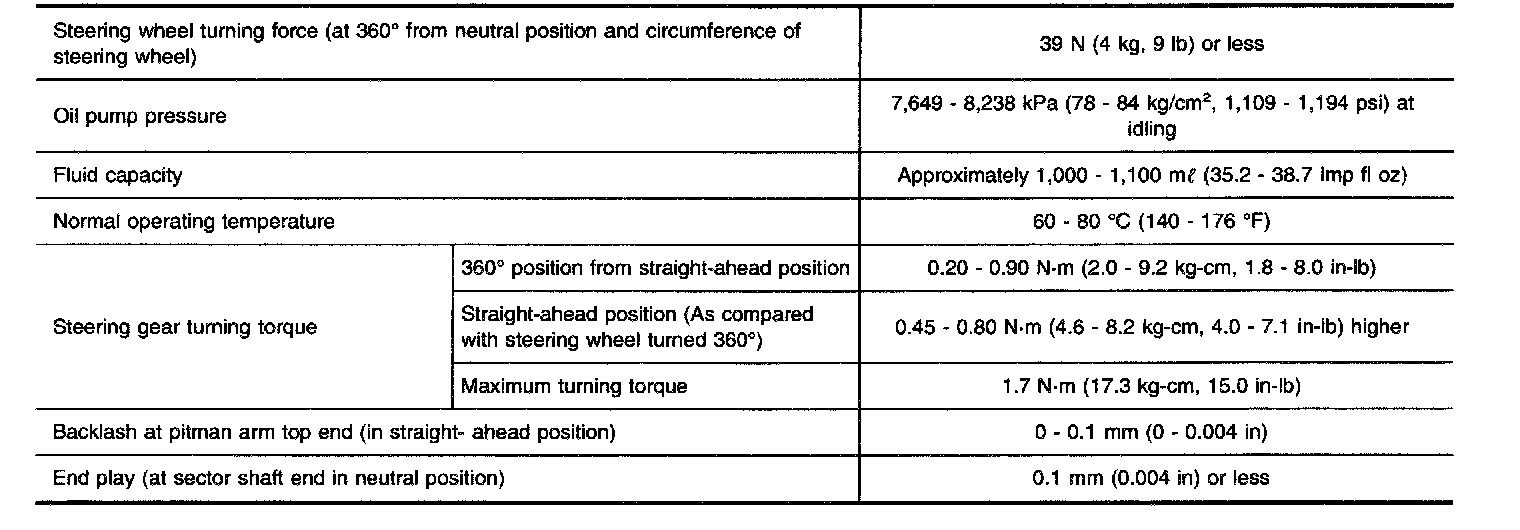

Power Steering Gear





Model: D600

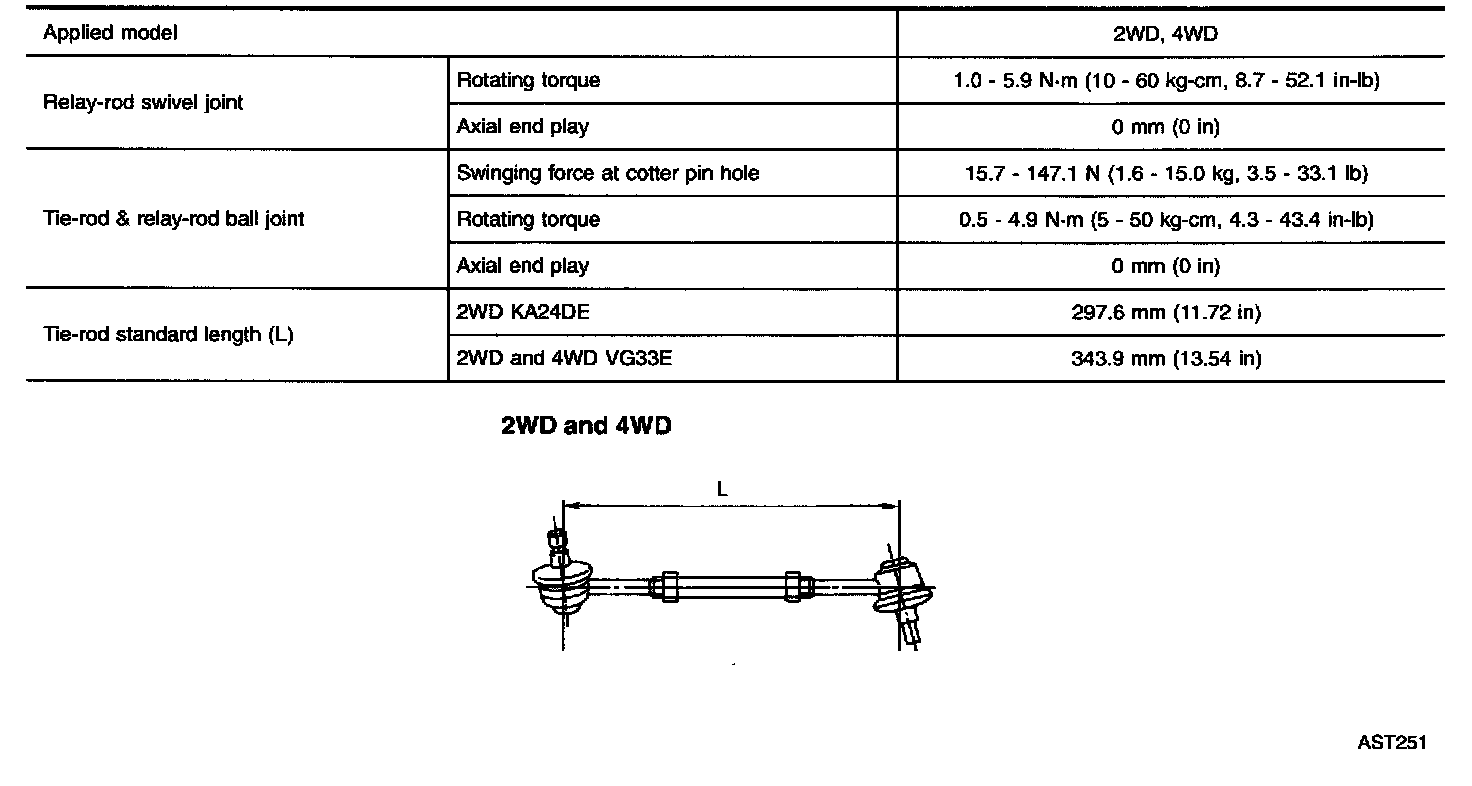

Steering Linkage
