Beginning With VIN 343314

REAR SENSOR

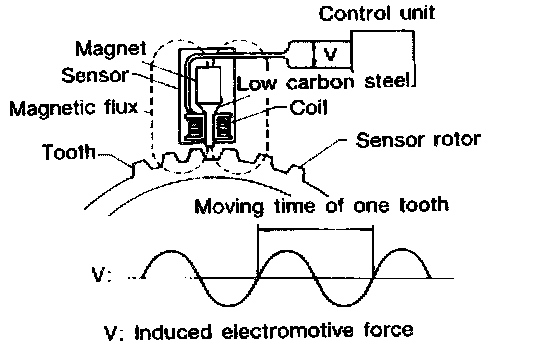

The rear sensor unit consist of a gear-shaped sensor rotor and a sensor element. The element contains a bar magnet around which a coil is wound. The sensor rotor is installed at the companion flange of the rear axle housing and the sensor unit is installed on the rear axle housing. As the rear axle pinion rotates, the sensor generates a sine-wave pattern. The frequency and voltage increase as the rotating speed increases.
