Models Beginning With Serial # 343314

Front Seat Belt:

REMOVAL AND INSTALLATION

Bucket Seats
1. Remove buckle. For driver side, disconnect seat belt switch connector.
2. Remove floor anchor bolts.
3. Remove adjuster cover and upper guide loop anchor bolt.
4. Remove center pillar lower and upper garnishes.
5. Remove two adjuster bolts and adjuster assembly.
6. Disconnect seat belt pre-tensioner connector.
7. Remove retractor anchor bolt and screw.
8. Remove retractor.

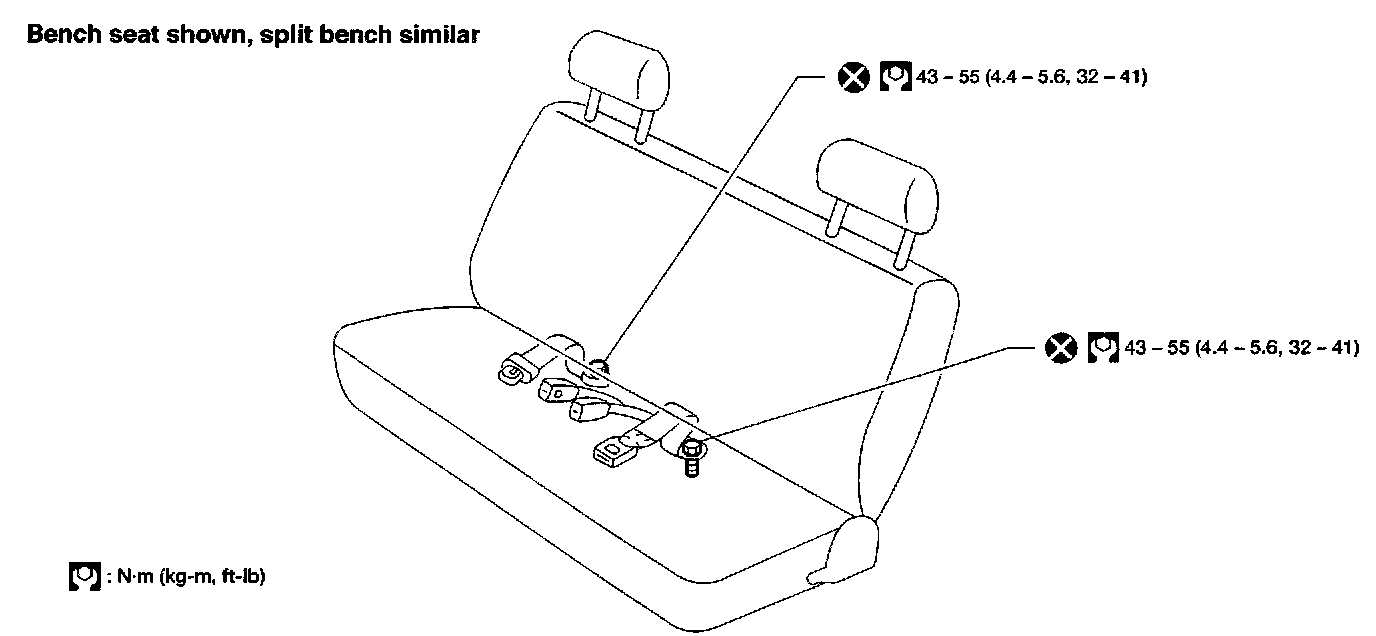

Front Center Seat Belt (bench And Split Bench Seats)

Reverse procedure to install.
