Models Beginning With Serial # 343314

CAUTION:
- Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3 minutes.
- Do not use old bolts and nuts after removal; replace with new ones.
- Check seat belt pre-tensioner for proper installation.
- After replacement of seat belt pre-tensioner, check SRS function and perform self-diagnosis for SRS. Refer to "Self-diagnosis" for details.
- Do not attempt to disassemble air bag diagnosis sensor unit or seat belt pre-tensioner.
- Replace air bag diagnosis sensor unit or seat belt pre-tensioner if it has been dropped or sustained an impact.
- Do not expose seat belt pre-tensioner to temperatures exceeding 80 °C (176 °F).

Front Seat Belt:

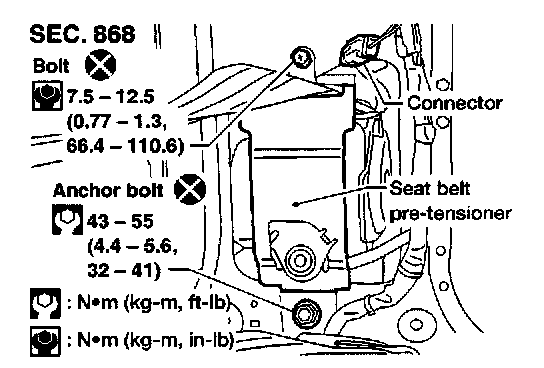

Seat Belt Pre-Tensioner:

REMOVAL AND INSTALLATION

Bucket Seats
1. Remove buckle. For driver side, disconnect seat belt switch connector.
2. Remove floor anchor bolts.
3. Remove adjuster cover and upper guide loop anchor bolt.
4. Remove center pillar lower and upper garnishes.
5. Remove two adjuster bolts and adjuster assembly.
6. Disconnect seat belt pre-tensioner connector.
7. Remove retractor anchor bolt and screw.
8. Remove retractor.




Front Center Seat Belt (bench And Split Bench Seats)

NOTE: To install, reverse removal procedure.
