Except Models Beginning With Serial Number 343314

To repair the SRS, perform the following steps.

When SRS is activated in a collision:
1. Replace the air bag diagnosis sensor unit.
2. Remove the air bag modules and seat belt pre-tensioners.

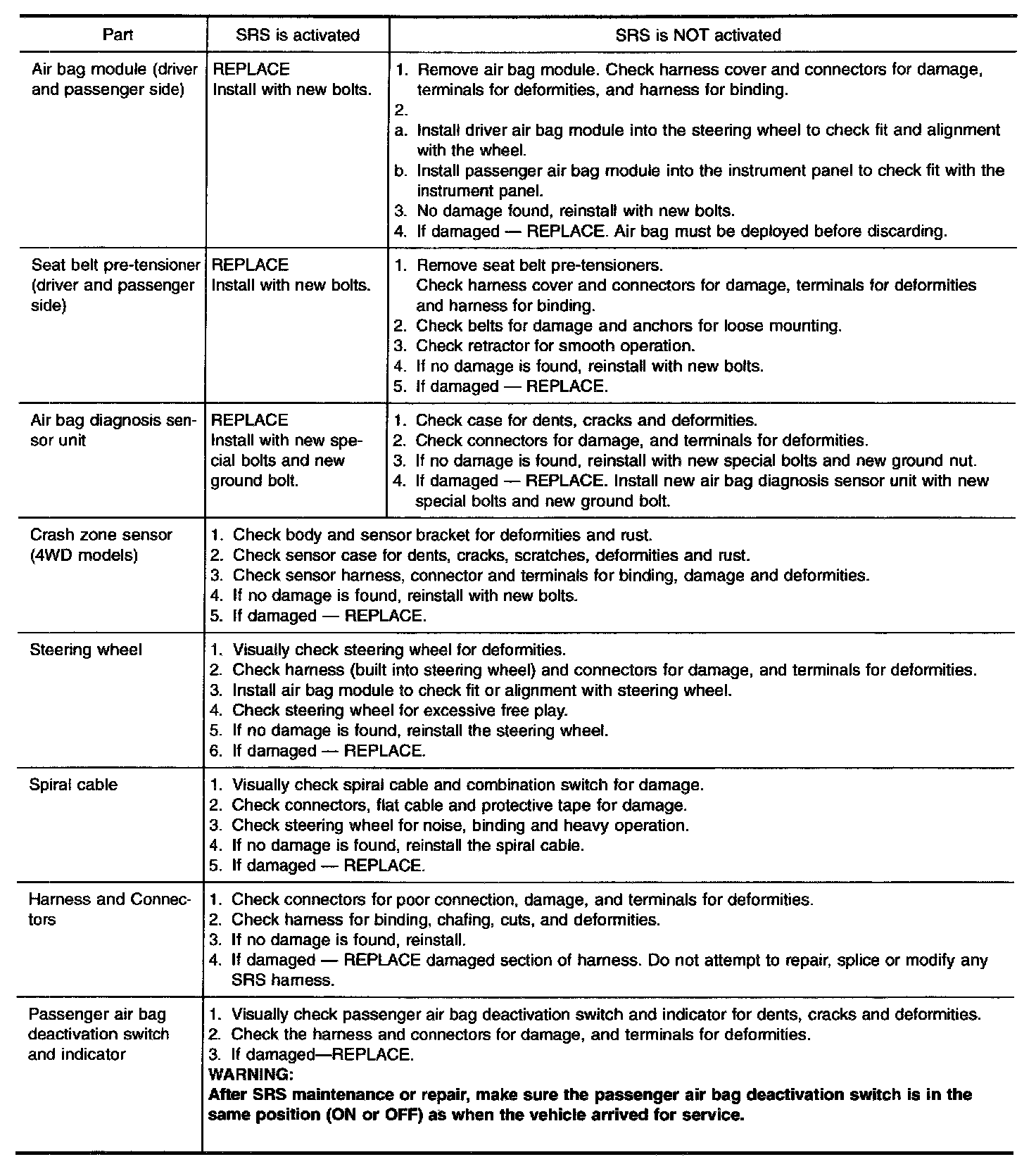

3. Check the SRS components using the following table:
Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4. Install new air bag modules and seat belt pre-tensioners.
5. Conduct Self-diagnosis using CONSULT or "AIR BAG" and "SEAT BELT" warning lamps. Refer to "SRS Operation Check", "TROUBLE DIAGNOSES - Restraint System".
SEE DIAGNOSTIC PROCEDURE 1 AND 2.
[1][2]Component Tests and General Diagnostics
[1][2]Component Tests and General Diagnostics

Ensure entire SRS operates properly.

Part 1 Of 2:

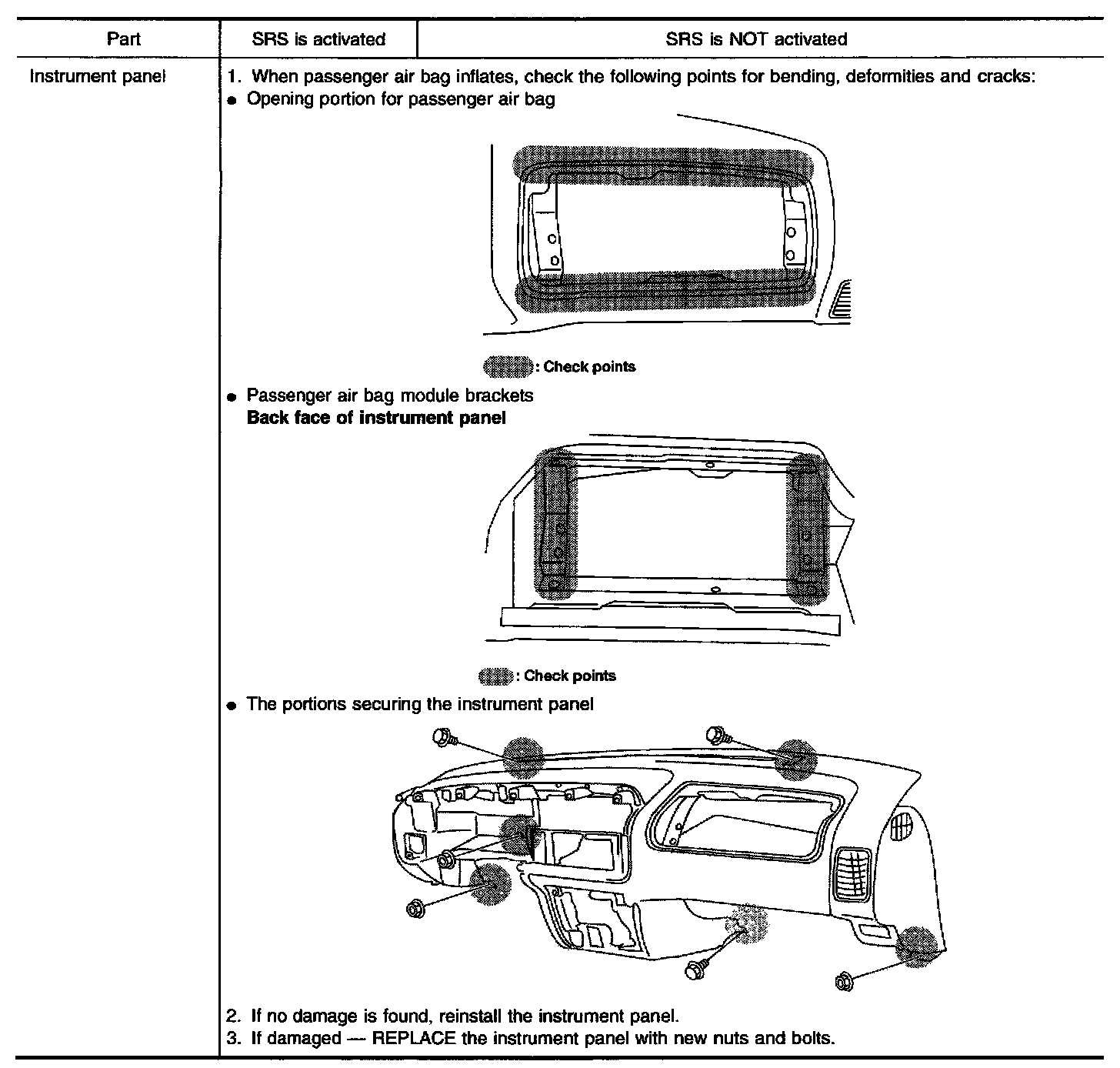

Part 2 Of 2:

When SRS is not activated in a collision:
1. Check the SRS components using the following table:
Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2. Conduct Self-diagnosis using CONSULT or "AIR BAG" and "SEAT BELT" warning lamps. Refer to "SRS Operation Check", 'TROUBLE DIAGNOSES - Restraint System".
SEE DIAGNOSTIC PROCEDURE 1 AND 2.
[1][2]Component Tests and General Diagnostics
[1][2]Component Tests and General Diagnostics


Ensure entire SRS operates properly.
