Except Models Beginning With Serial Number 343314

Final checking after repairing SRS by using "AIR BAG" warning lamp - Diagnosis mode and user mode




1. After repairing SRS, connect both battery cables.
2. Open front door LH.
3. Turn ignition switch from OFF to ON.

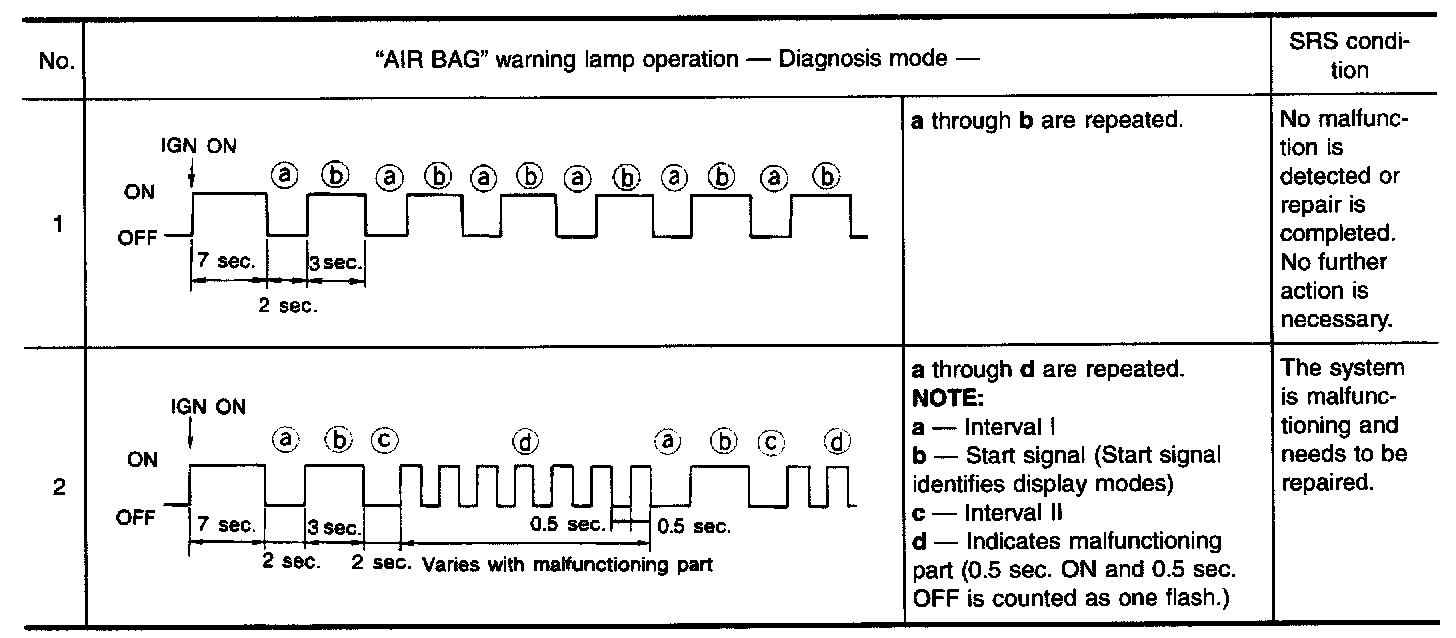

4. "AIR BAG" warning lamp operates in Diagnosis mode according to the following chart.

NOTE: When air bag diagnosis sensor unit is replaced with new one, "AIR BAG" warning lamp will operate in User mode. Checking "AIR BAG" warning lamp operation in Diagnosis mode is not required. Go to step 6.

5. If "AIR BAG" warning lamp operates as shown in No.1 in chart above, turn ignition switch OFF to reset from Diagnosis mode to User mode and to erase the memory of the malfunction. Then go to step 6.
If "AIR BAG" warning lamp operates as shown in No.2 in chart above, the malfunctioning part is not repaired completely or another malfunctioning part is detected. Go to DIAGNOSTIC PROCEDURE 6 Diagnostic Procedure 6 and repair malfunctioning part completely.

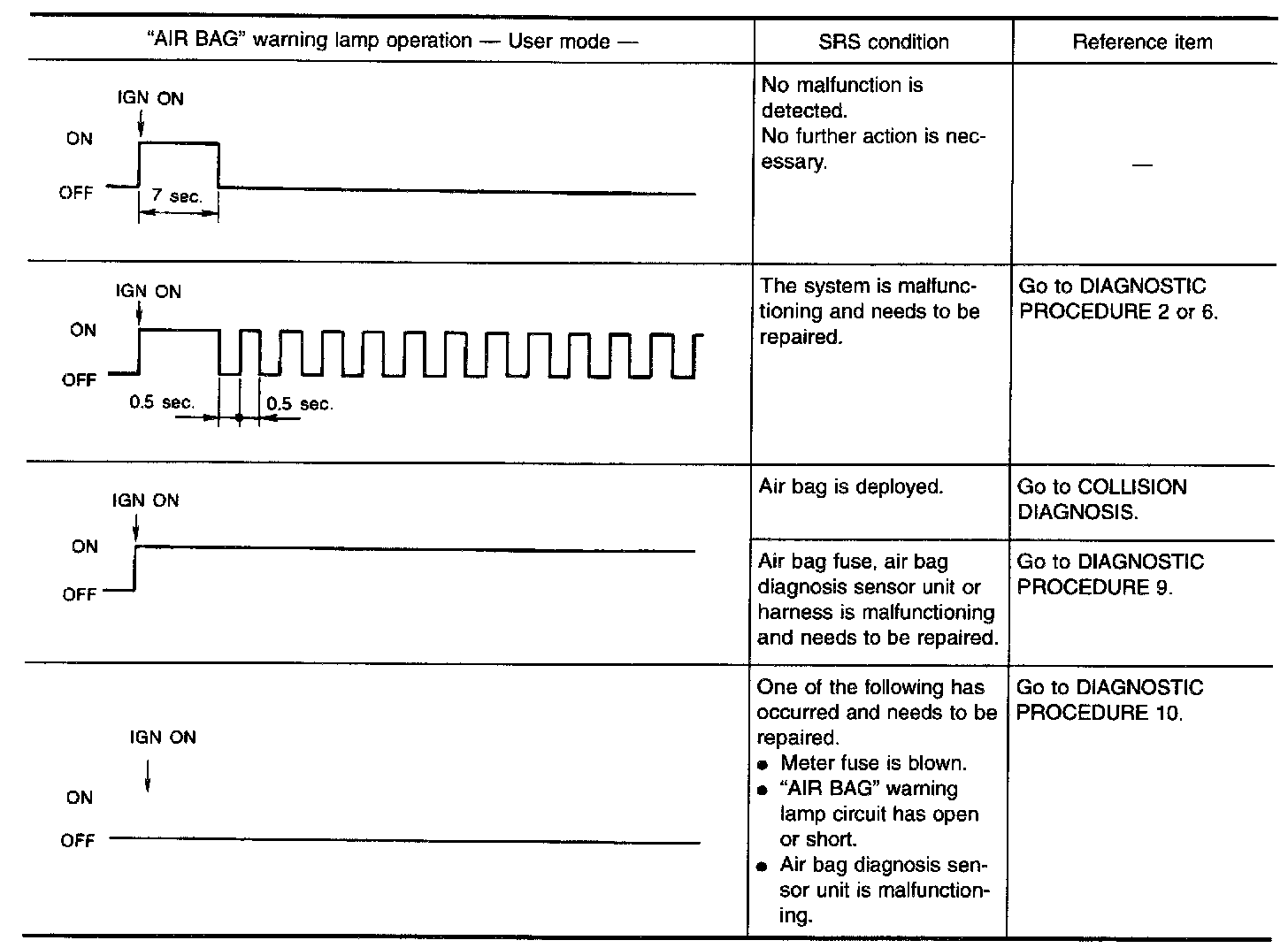

6. Turn ignition switch ON. "AIR BAG" warning lamp operates in User mode. Compare "AIR BAG" warning lamp operation to the following chart.

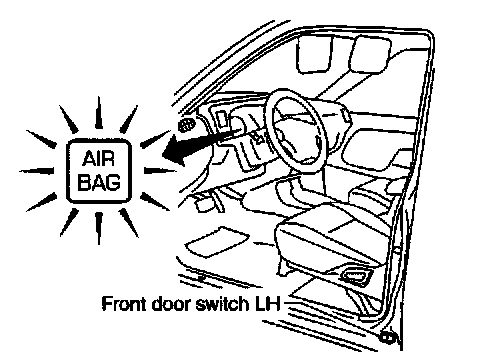

NOTE: If switching from Diagnosis mode to User mode is required while malfunction is being detected, turn ignition switch from OFF to ON. Then press front door switch LH at least 5 times within 7 seconds after turning ignition switch ON. SRS is now in User mode.
