Models Beginning With Serial Number 343314

Inspecting SRS intermittent malfunction by using CONSULT-II - Diagnosis mode




1. Turn ignition switch OFF

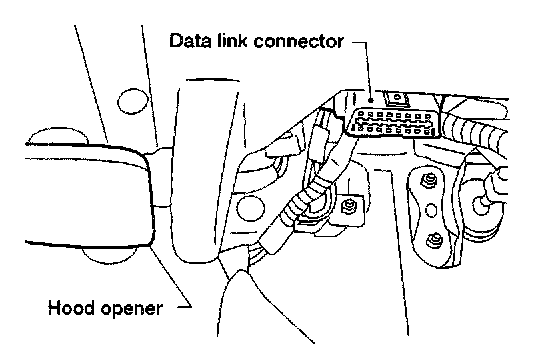

2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.

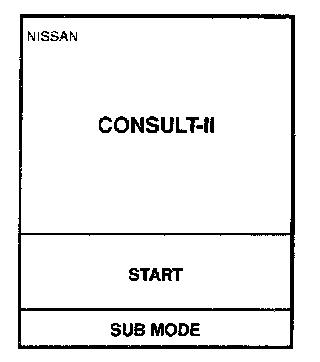

4. Touch "START".




5. Touch "AIRBAG".




6. Touch "SELF-DIAG [PAST]".

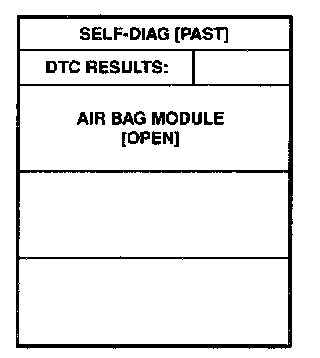

7. If self-diagnosis result is displayed on "SELF-DIAG [PAST)", go to step 10.

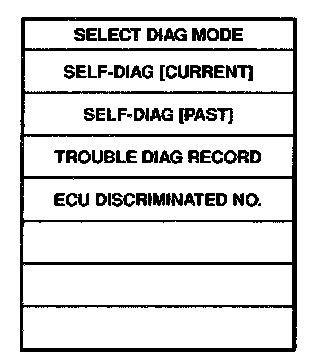

If no malfunction is detected on "SELF-DIAG" touch "BACK" and go back to "SELECT DIAG MODE".

NOTE: Past malfunction for seat belt pre-tensioner system will not be displayed on "SELF-DIAG [PAST]".

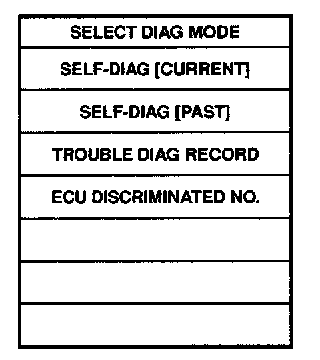

8. Touch "TROUBLE DIAG RECORD".

NOTE: With "TROUBLE DRAG RECORD", self-diagnosis results previously erased by a reset operation can be displayed.

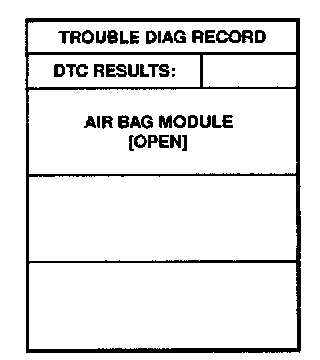

9. Self-diagnosis result is displayed on "TROUBLE DIAG RECORD".
10. Touch "PRINT".
11. Compare self-diagnosis result to "Intermittent Malfunction Diagnostic Code Chart".

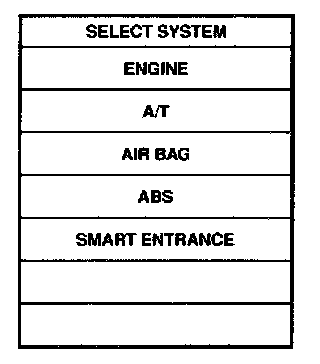

12. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears.
13. Turn ignition switch OFF, then turn off and disconnect CONSULT-II, and both battery cables.

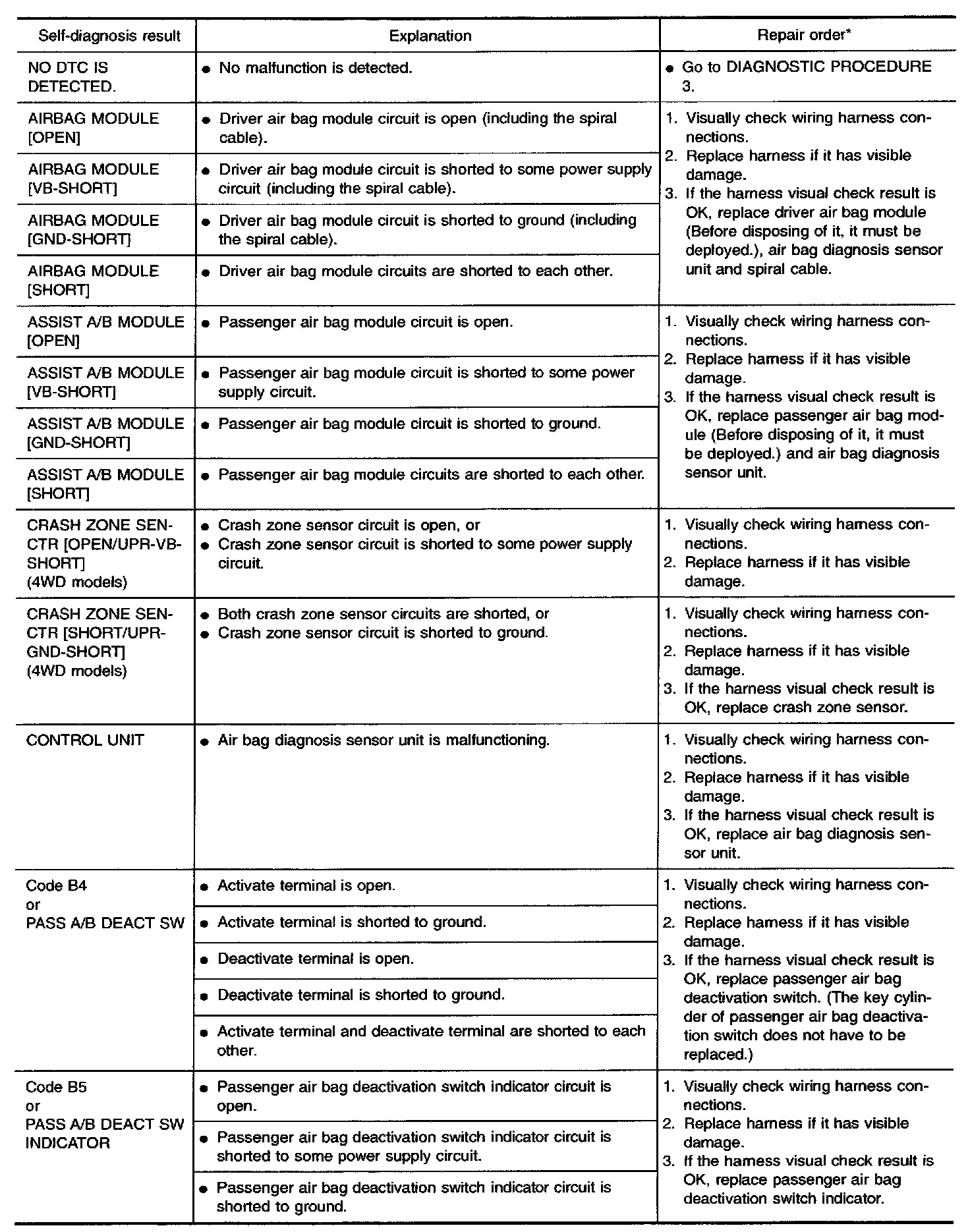

INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART (SELF-DIAG [PAST] OR TROUBLE DIAG RECORD) Part 1 Of 2:

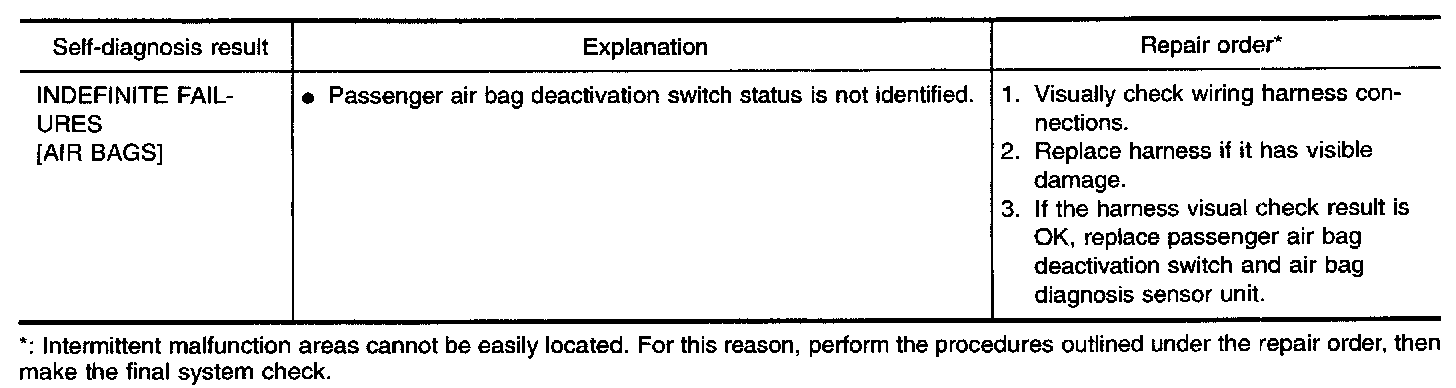

INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART (SELF-DIAG [PAST] OR TROUBLE DIAG RECORD) Part 2 Of 2:

14. Repair the system as outlined by the repair order that corresponds to the self-diagnosis result in "Intermittent Malfunction Diagnostic Code Chart". For replacement procedure of component parts.
15. Go to DIAGNOSTIC PROCEDURE 3 Diagnostic Procedure 3 for final checking.
