Beginning With VIN #343314

DESCRIPTION





- The purpose of the test is to determine overall performance of A/T and analyze causes of problems.

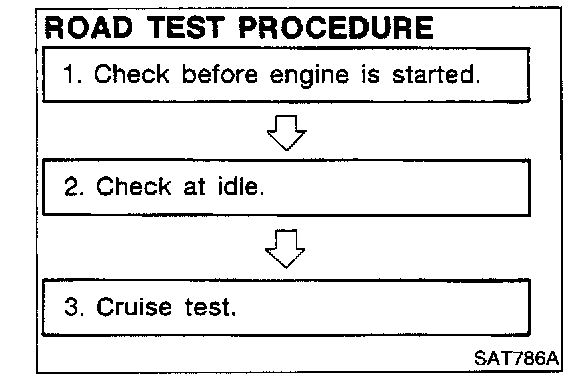

- The road test consists of the following three parts:
a. Check before engine is started
b. Check at idle
c. Cruise test





- Before road test, familiarize yourself with all test procedures and items to check.
- Conduct tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.

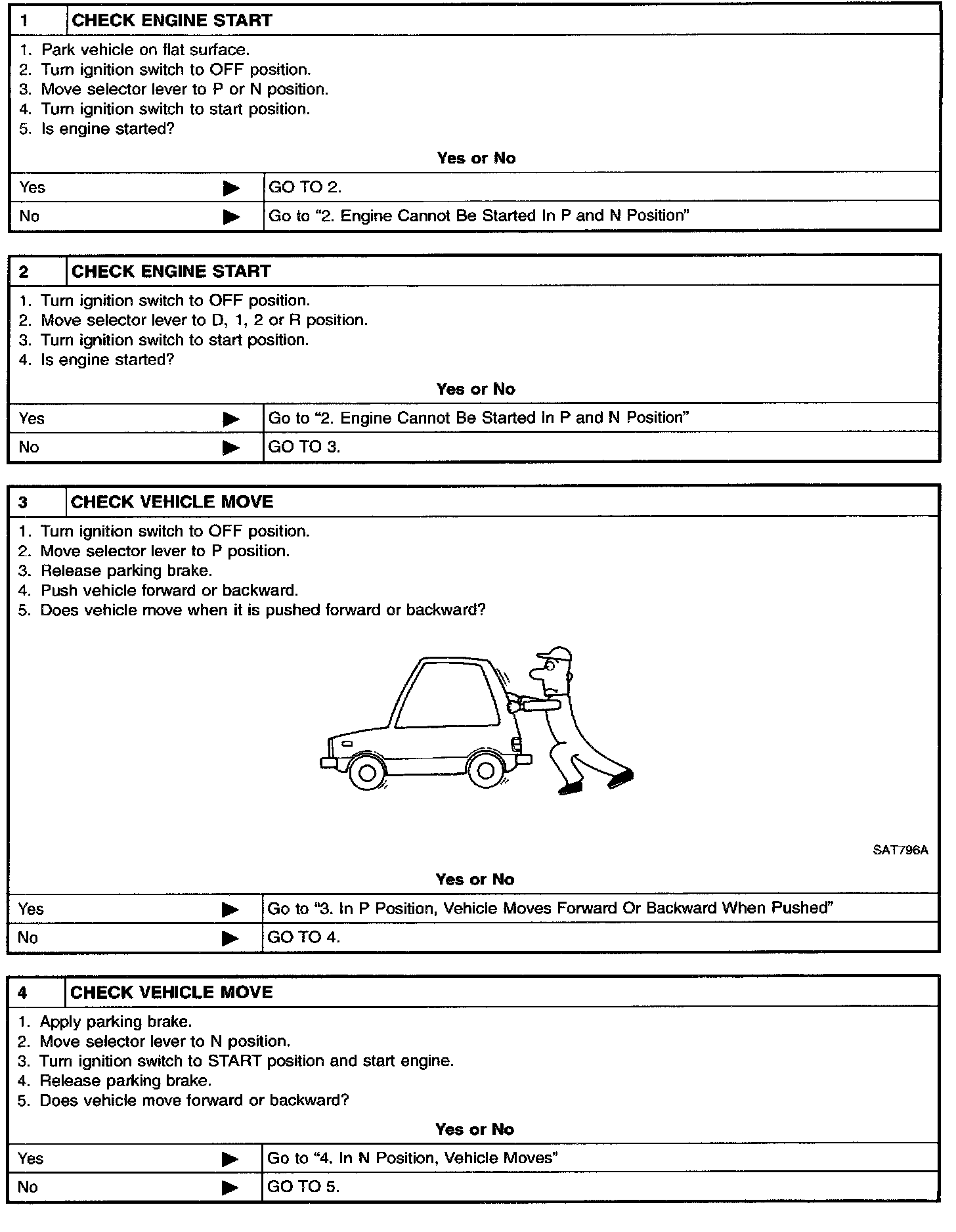

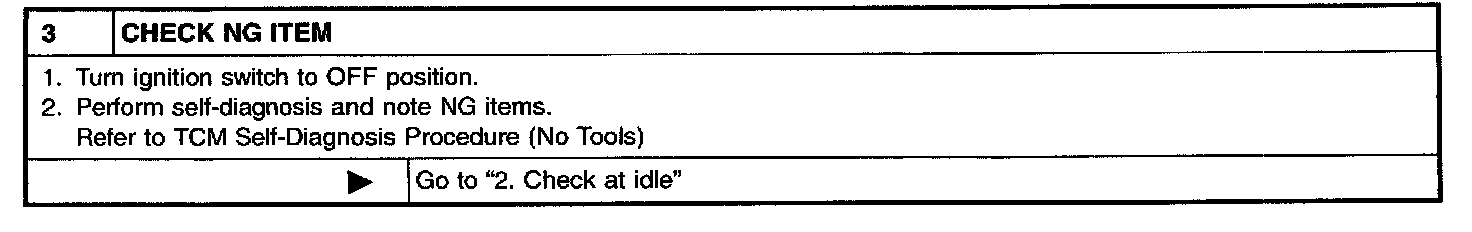

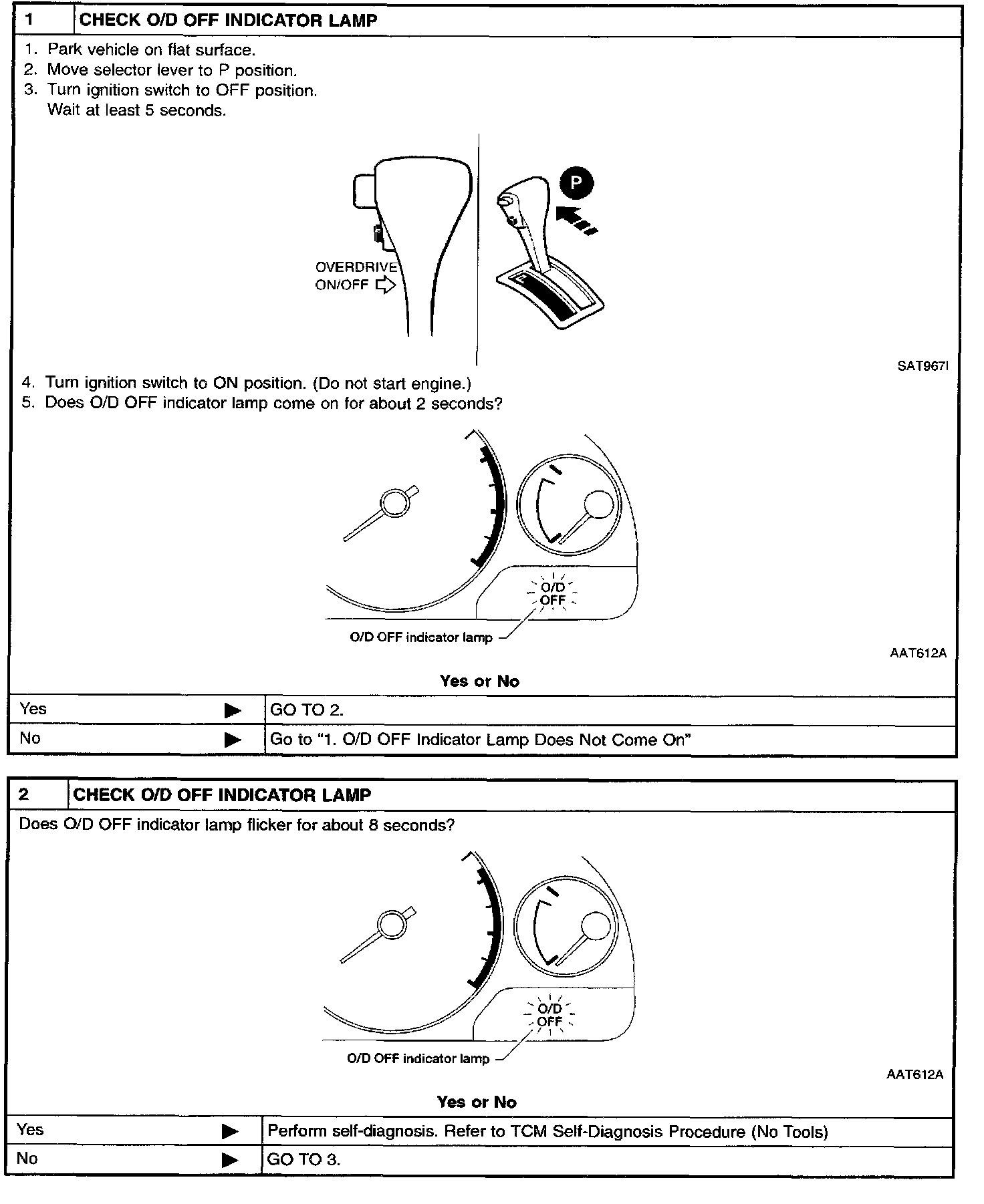

1. CHECK BEFORE ENGINE IS STARTED

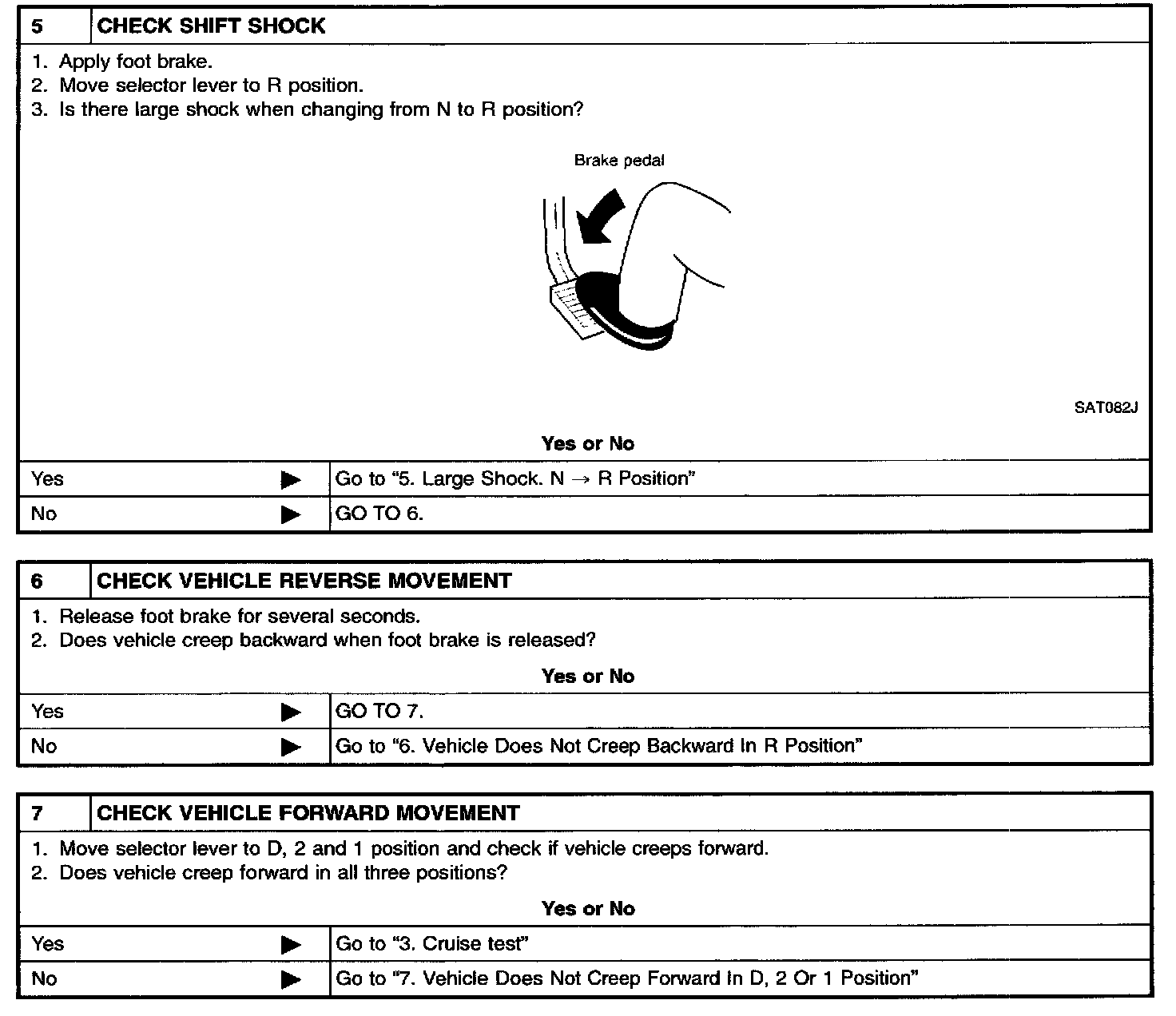

2. CHECK AT IDLE

3. CRUISE TEST
- Check all items listed in Parts 1 through 3.

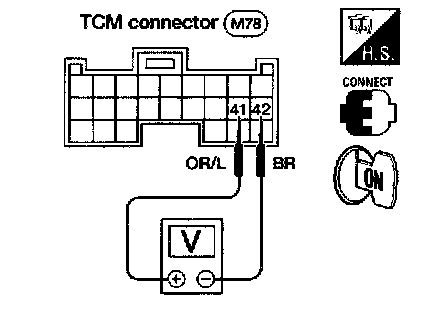

- Throttle position sensor can be checked by measuring voltage across terminals 41 and 42 of TCM.

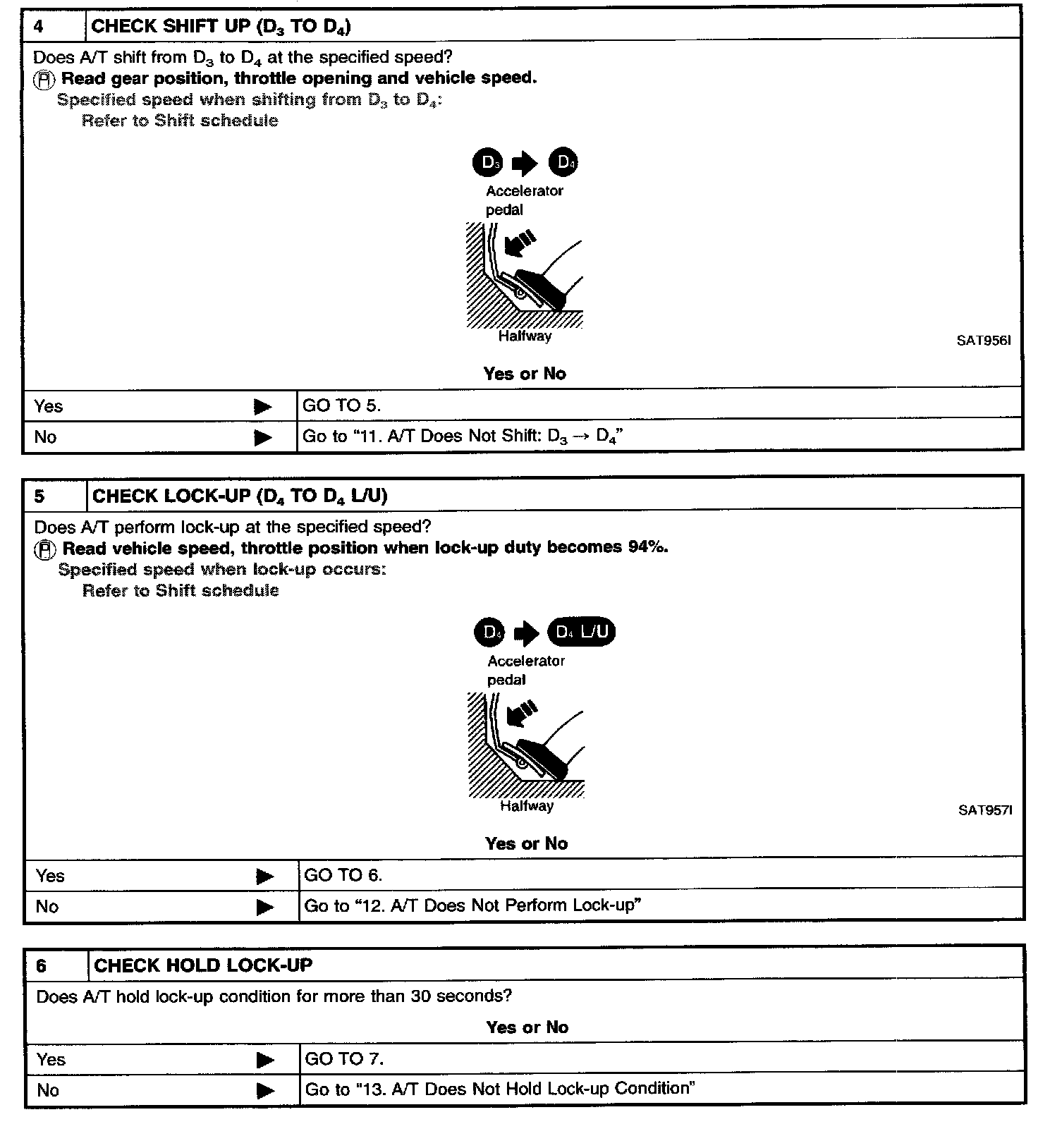

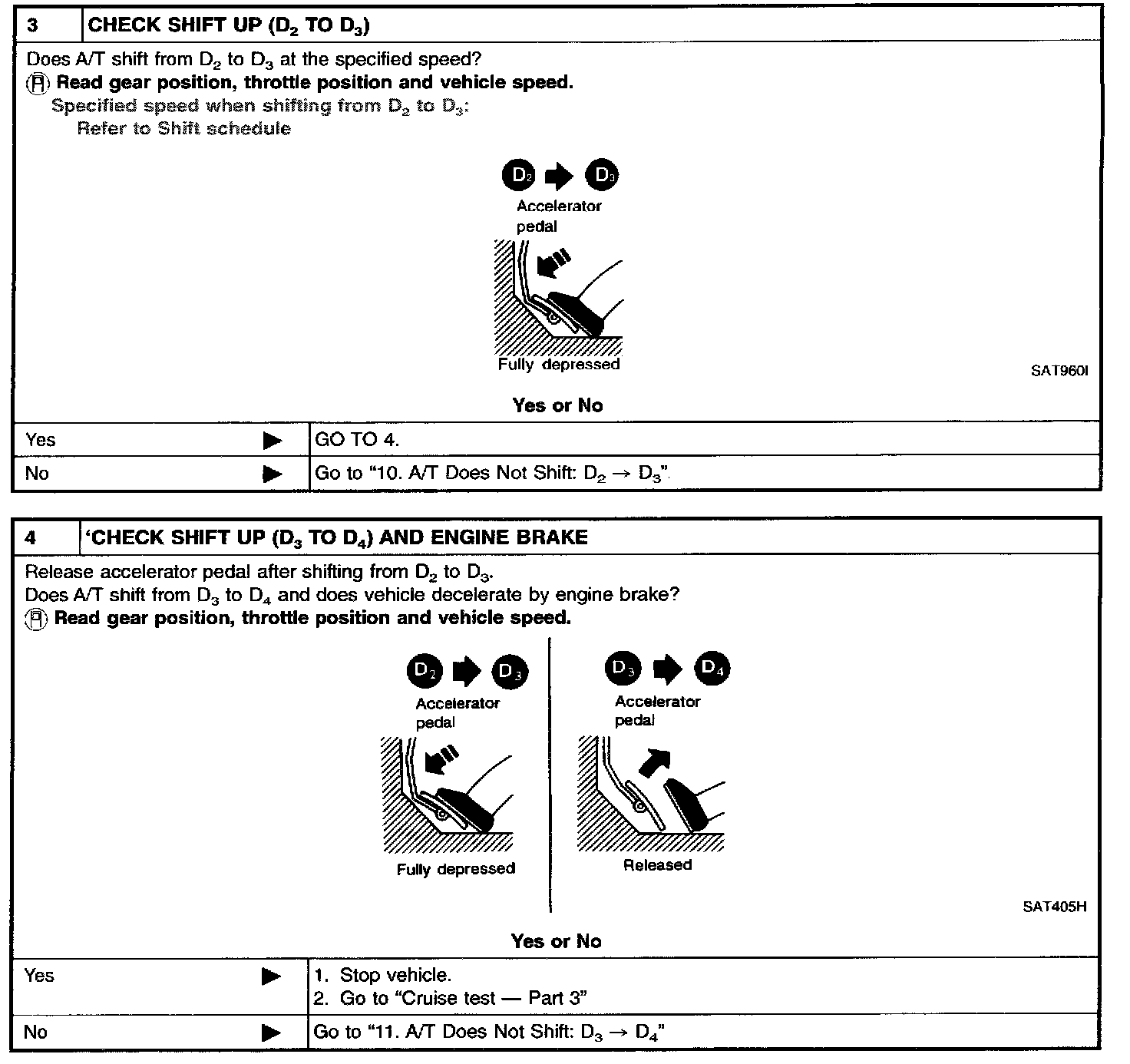

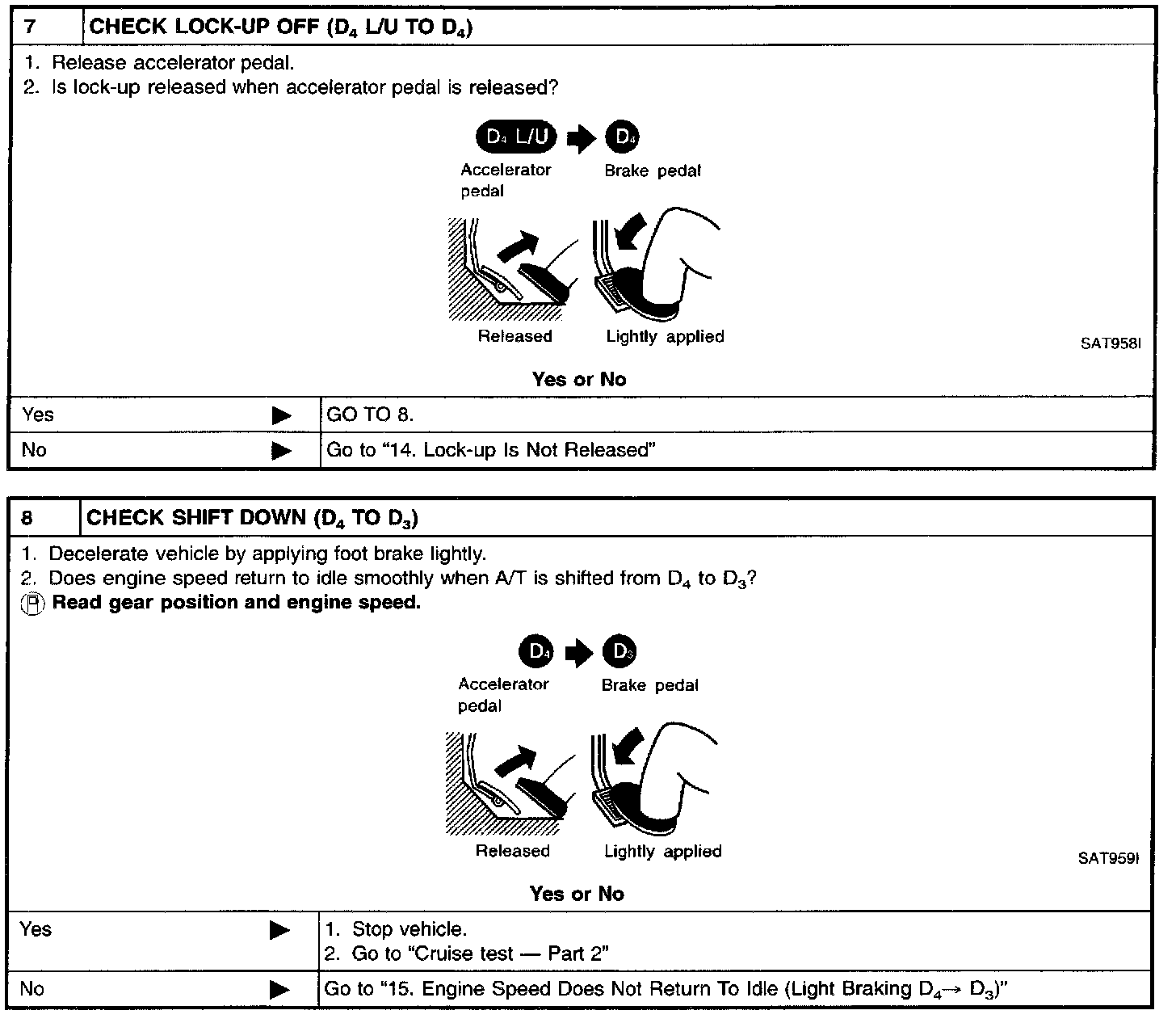

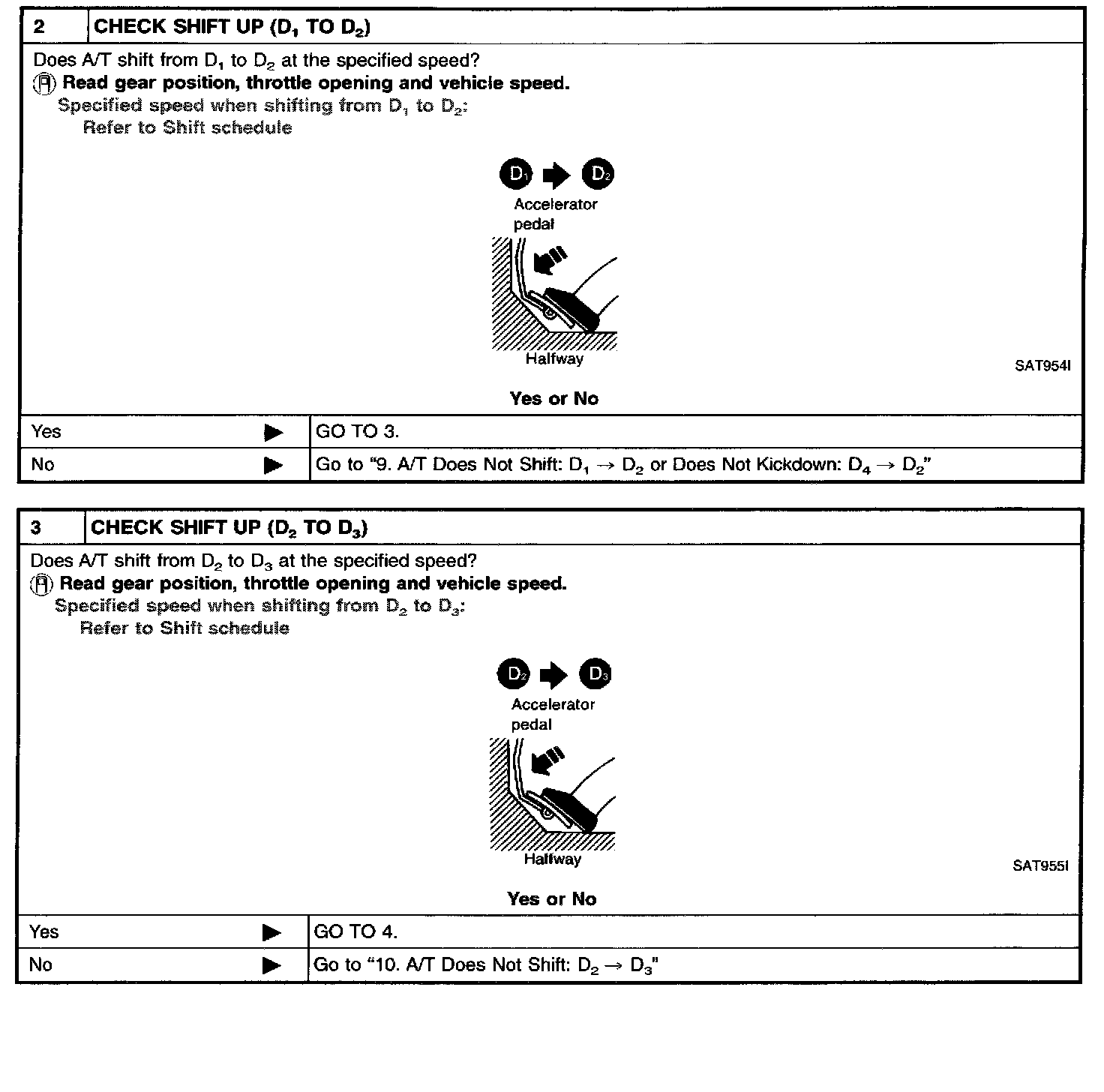

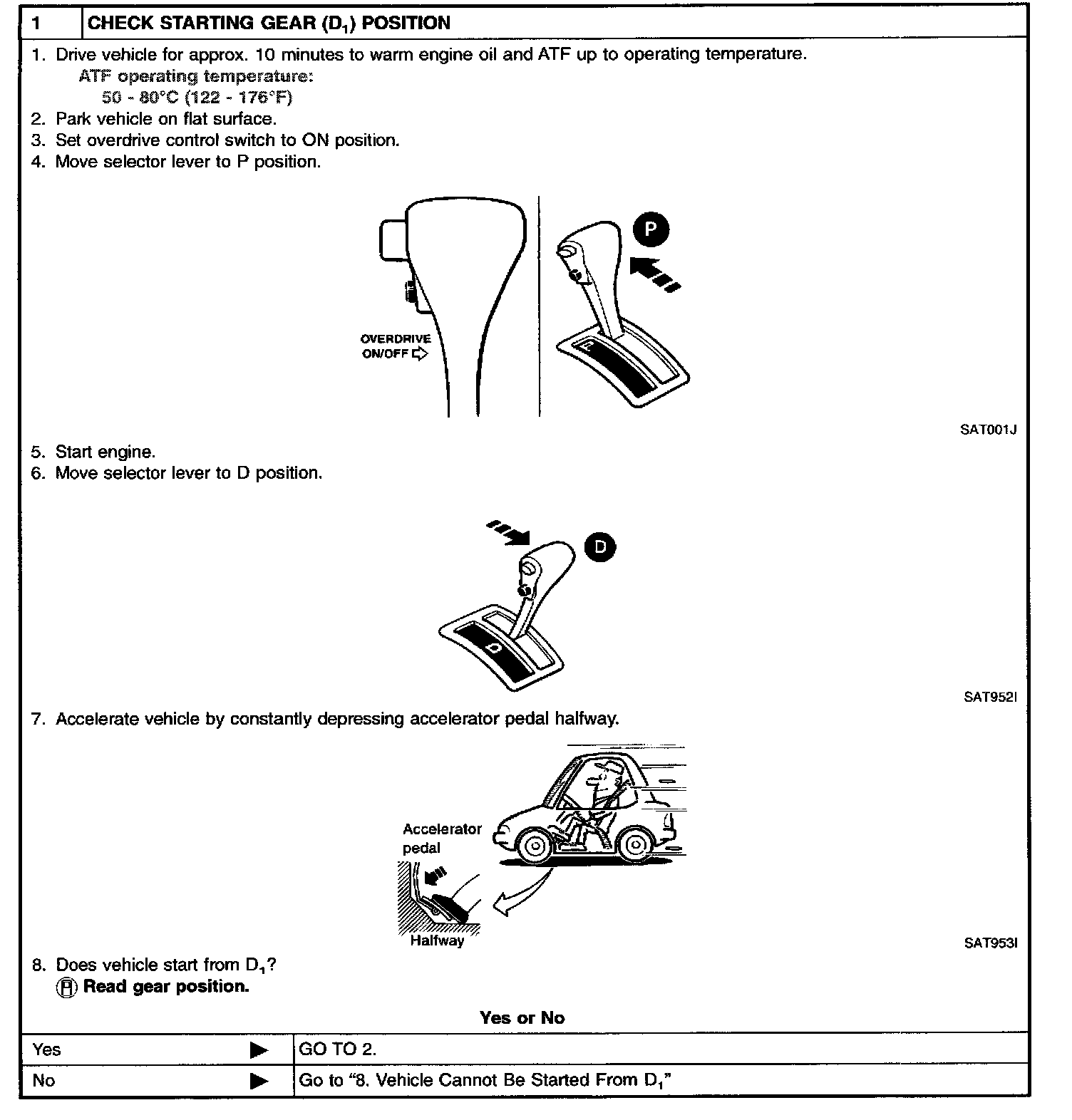

Cruise Test - Part 1

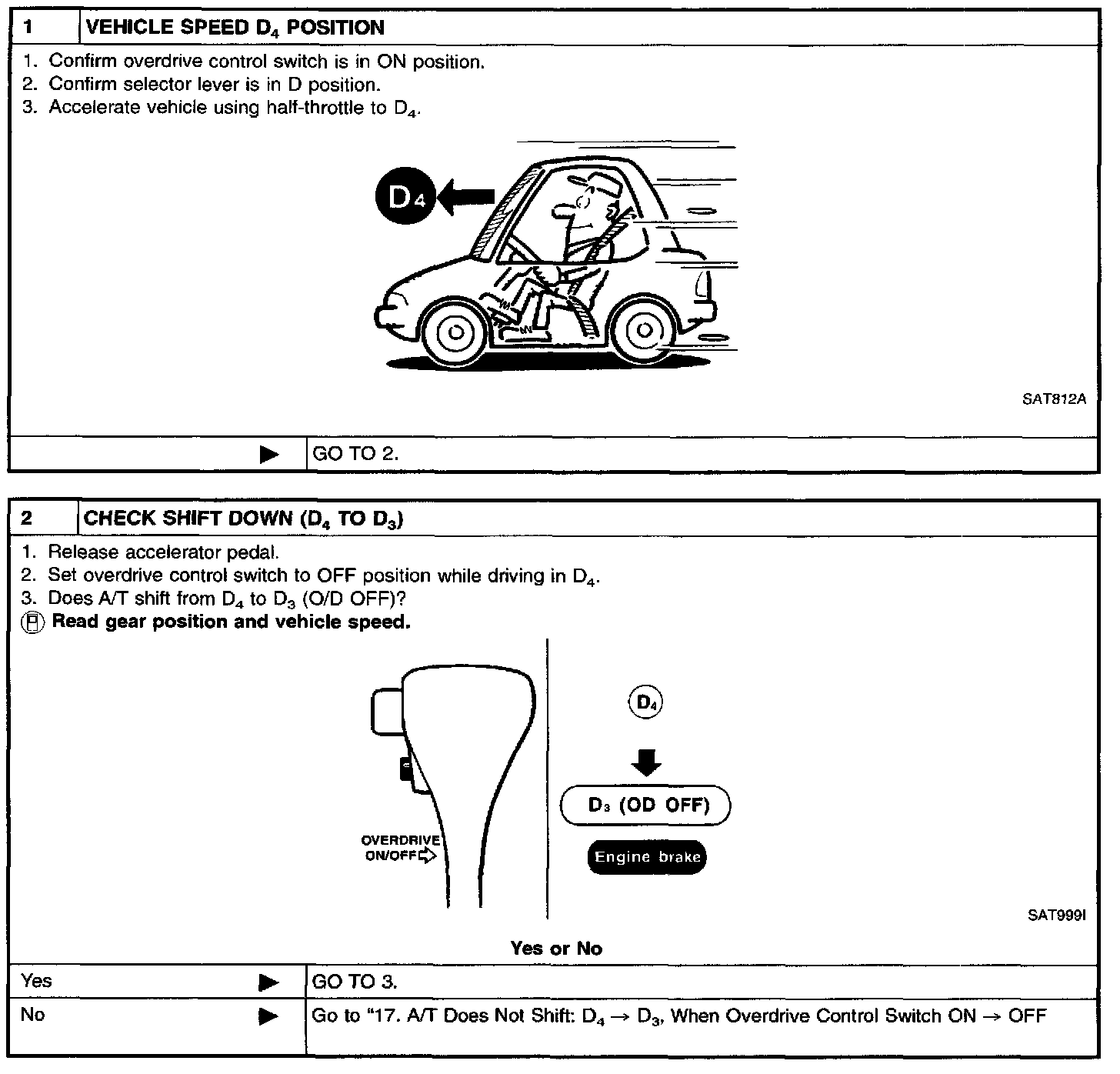

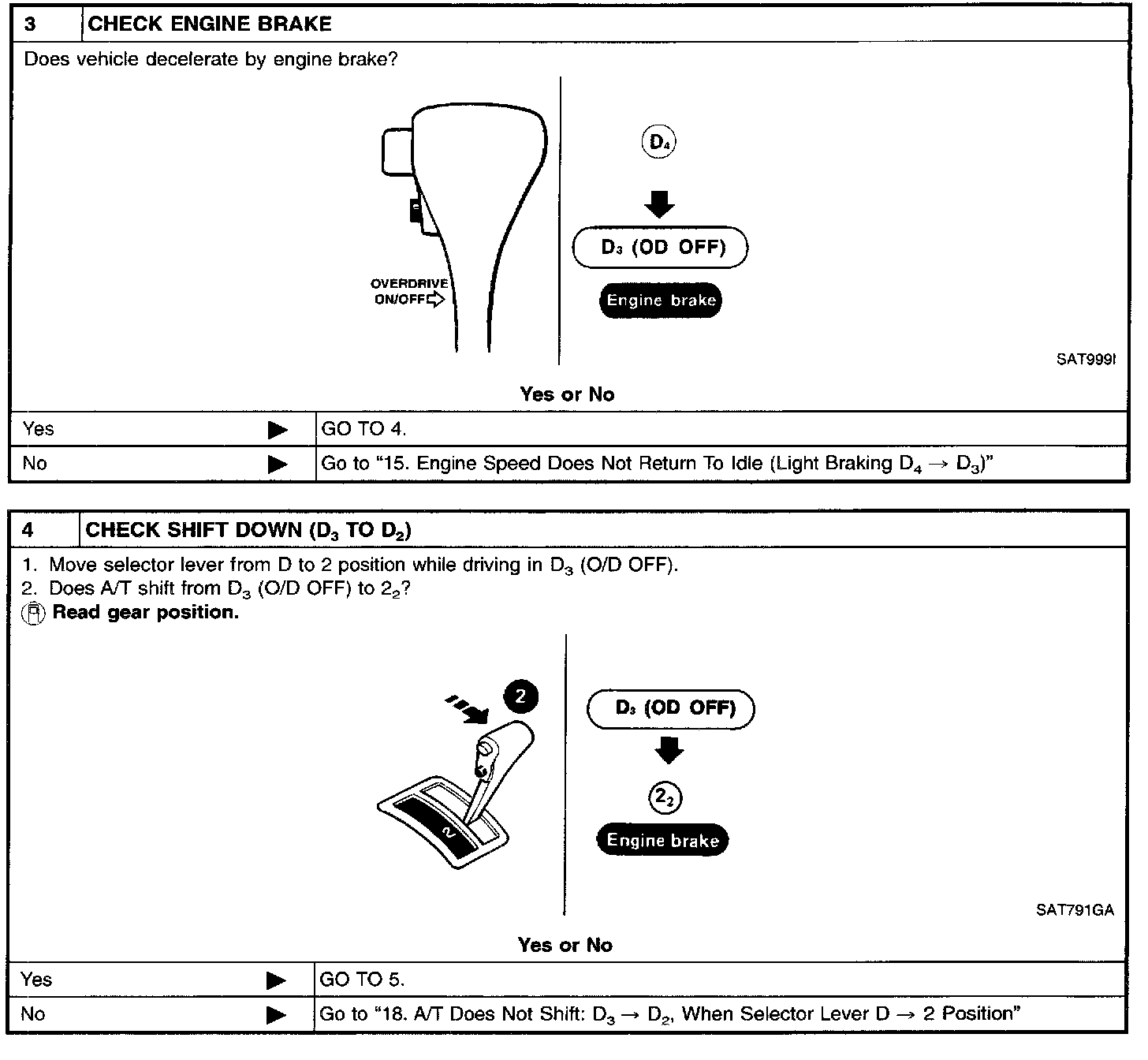

Cruise Test - Part 2

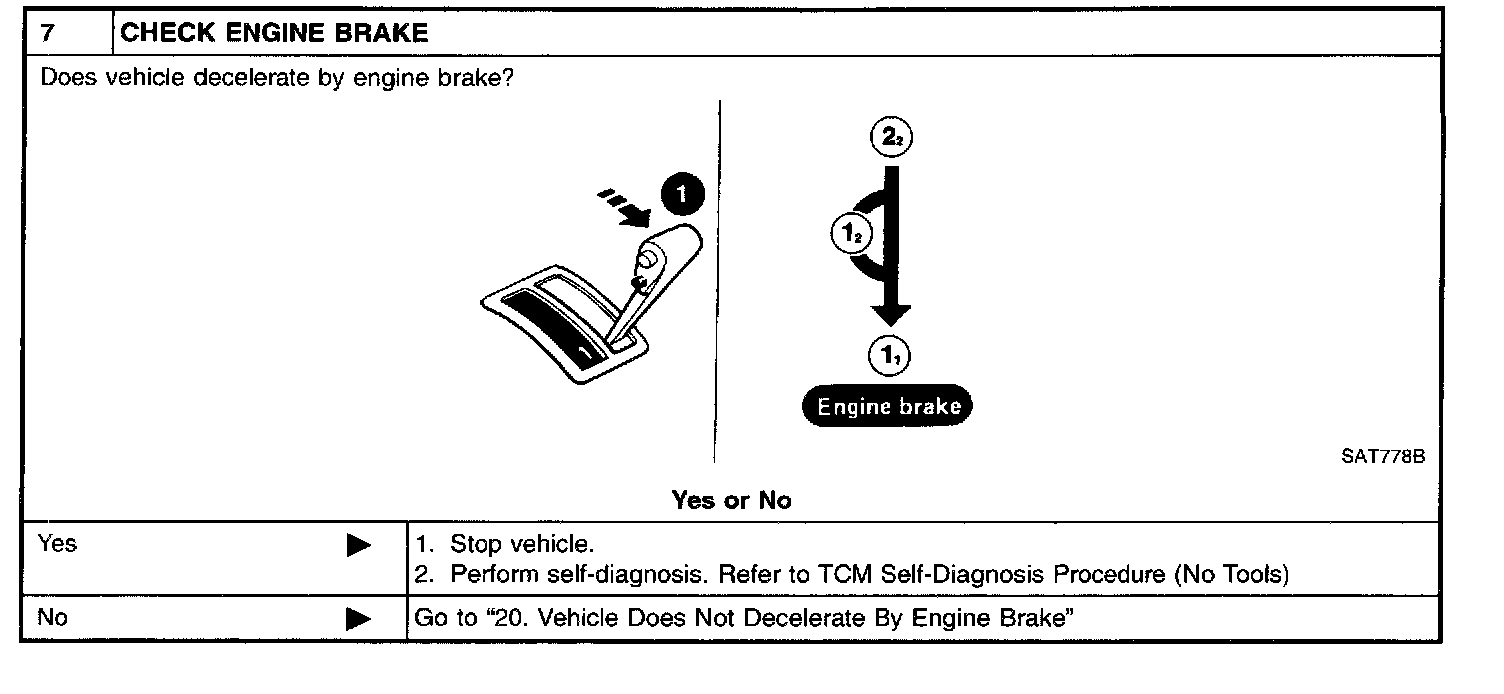

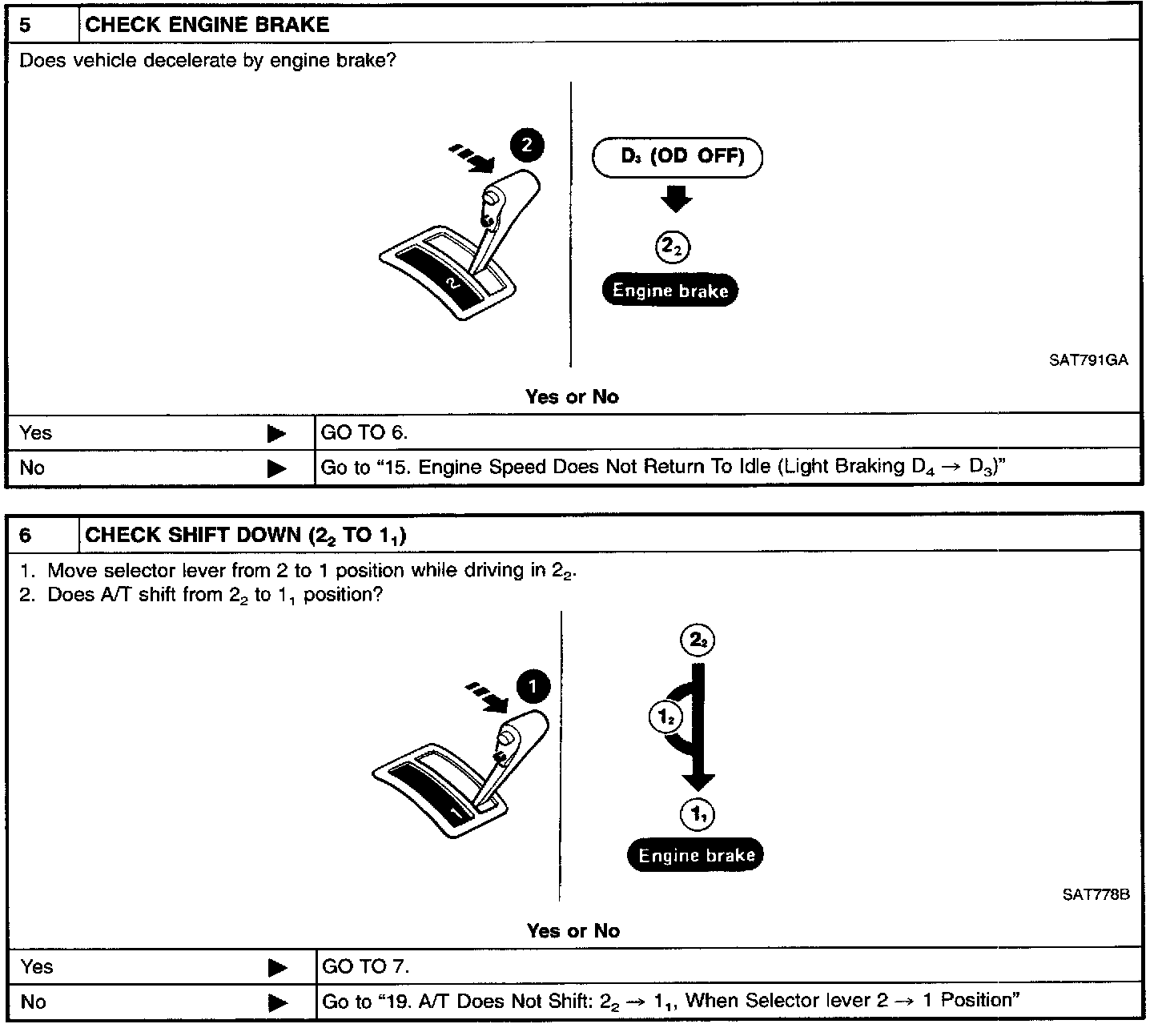

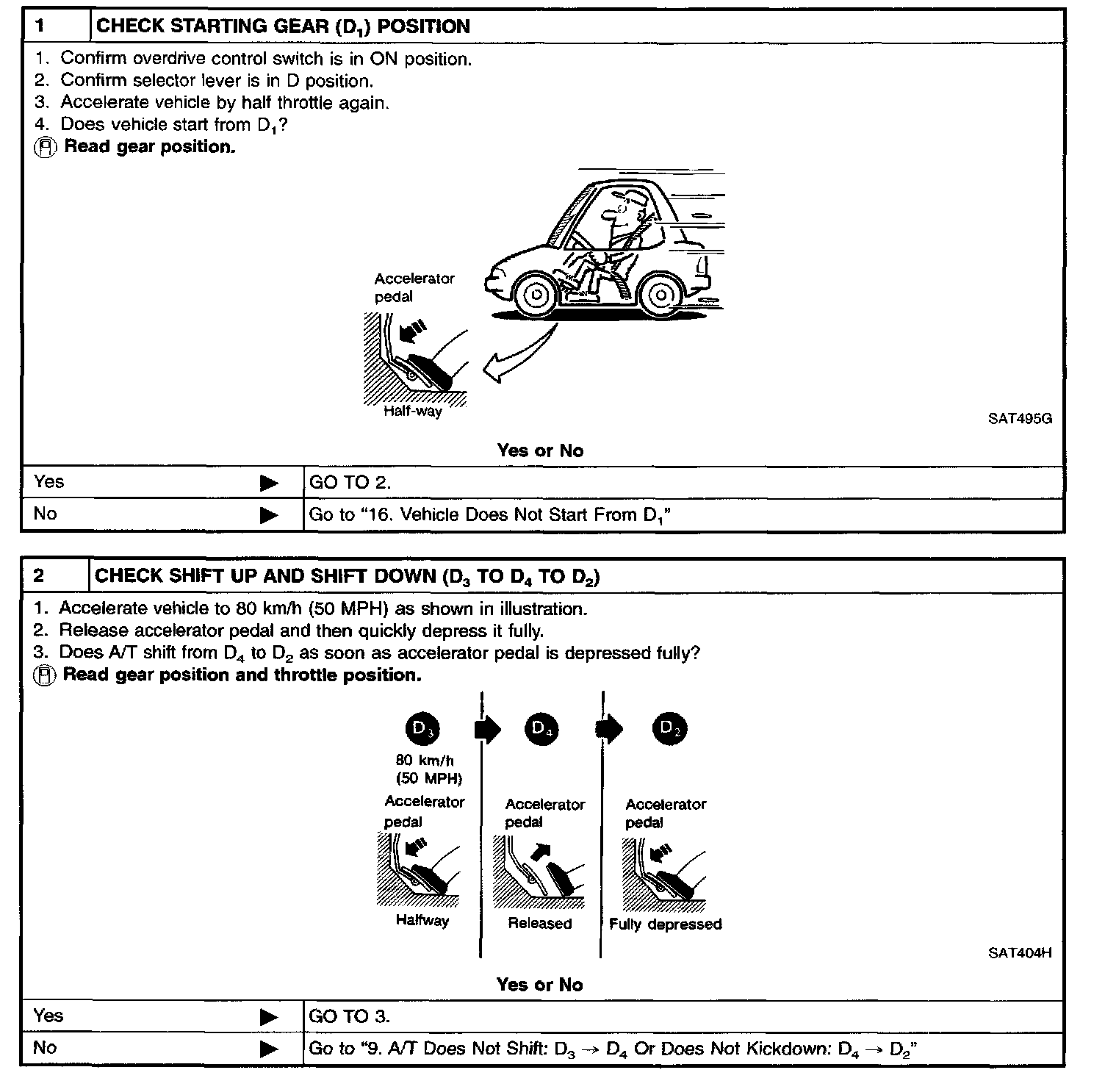

Cruise Test - Part 3
