Drive Belt: Testing and Inspection

1. Inspect belt for cracks, fraying, wear and oil. If necessary, replace.
2. Inspect drive belt deflection or tension at a point on the belt midway between pulleys.
Check belt tension using belt tension gauge (BT3373-F or equivalent).
Inspect drive belt deflection or tension when engine is cold.
- Adjust if belt deflections exceed the limit or if belt tension is not within specifications
- Drive belt tension can be checked at other points on the belt.

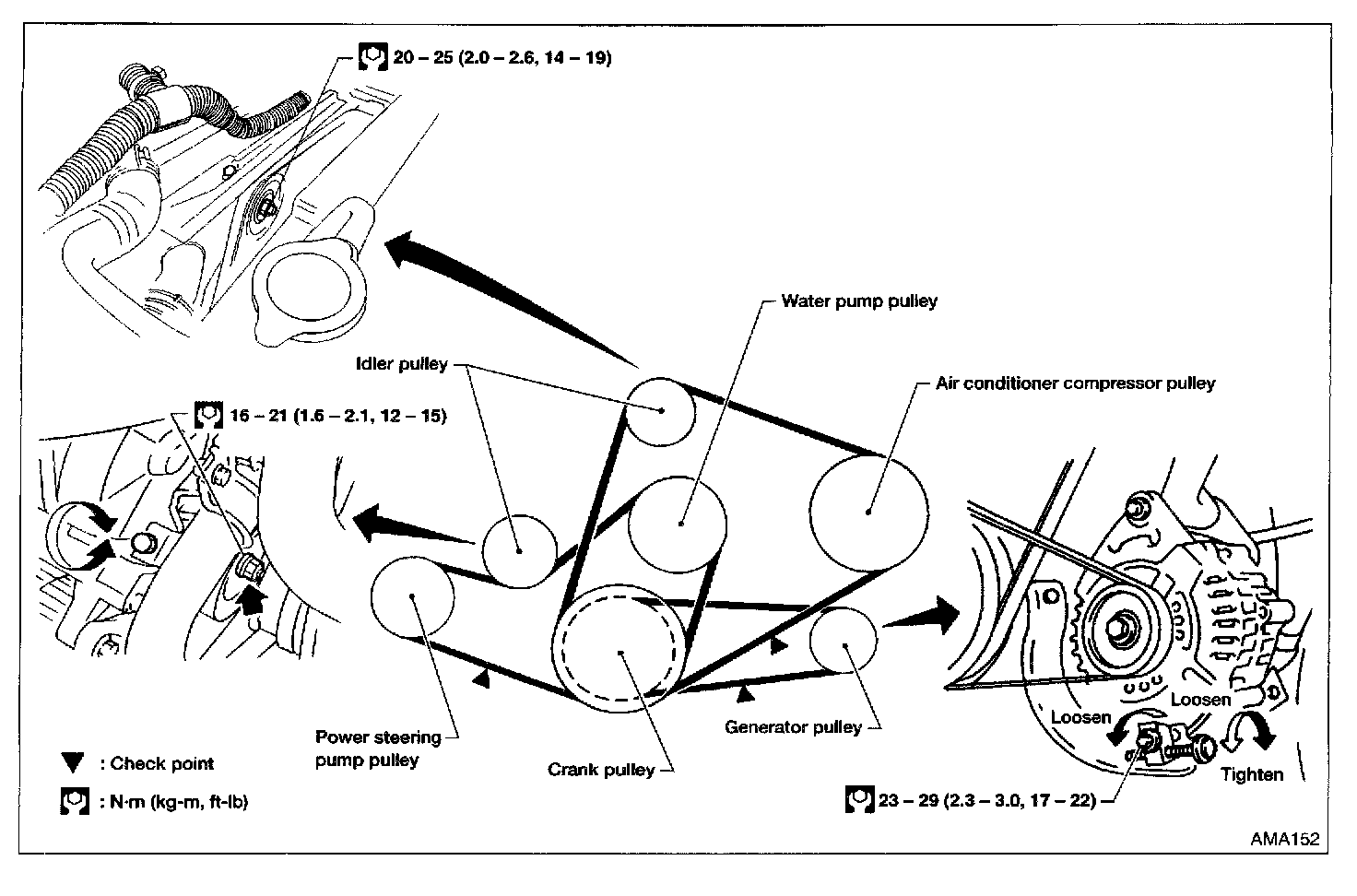

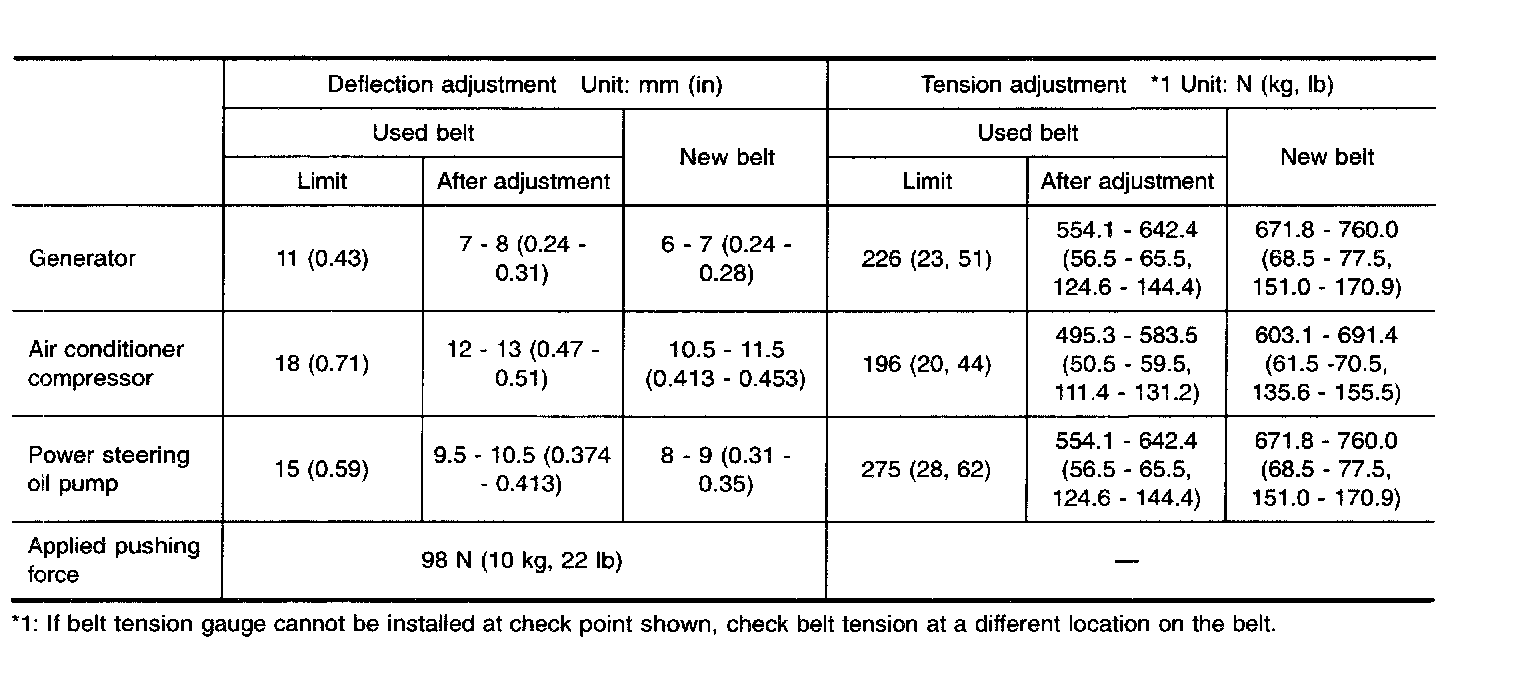

DRIVE BELT DEFLECTION AND TENSION.
