Before VIN 343314

For removal and installation of spiral cable, refer to "Driver Air
Bag Module and Spiral Cable", "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".

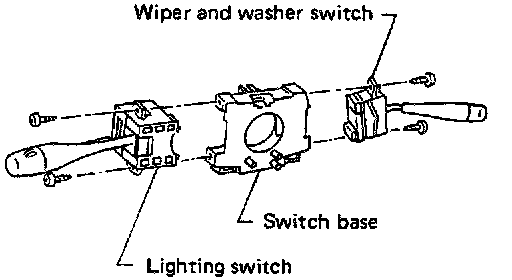

- Each switch can be replaced without removing combination switch base.

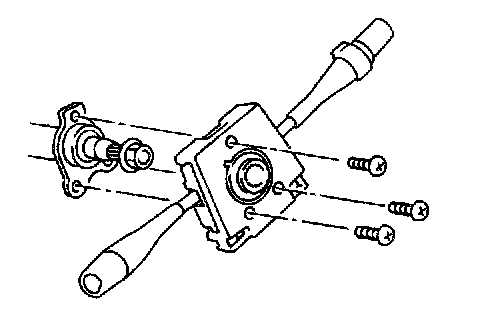

- To remove combination switch base, remove base attaching screws.

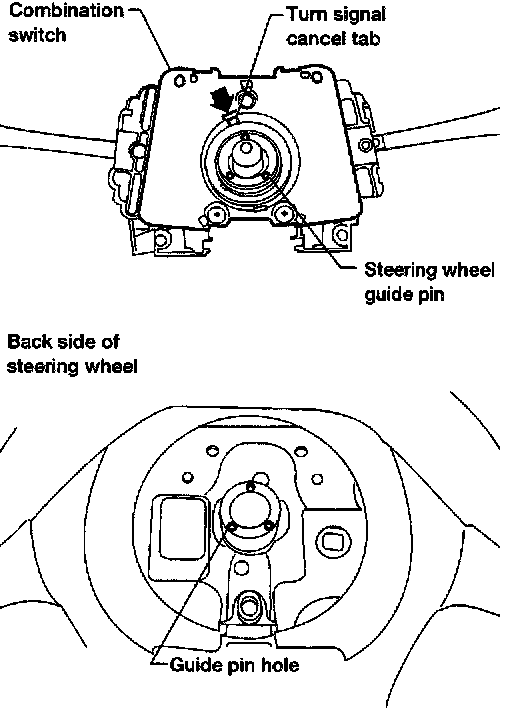

- Before installing the steering wheel, align the turn signal cancel tab with the notch of the combination switch. Refer to "Driver Air Bag Module and Spiral Cable".
