Frontier XE Crew Cab 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
>>
For USA
>>
Beginning With VIN 343314
Beginning With VIN 343314

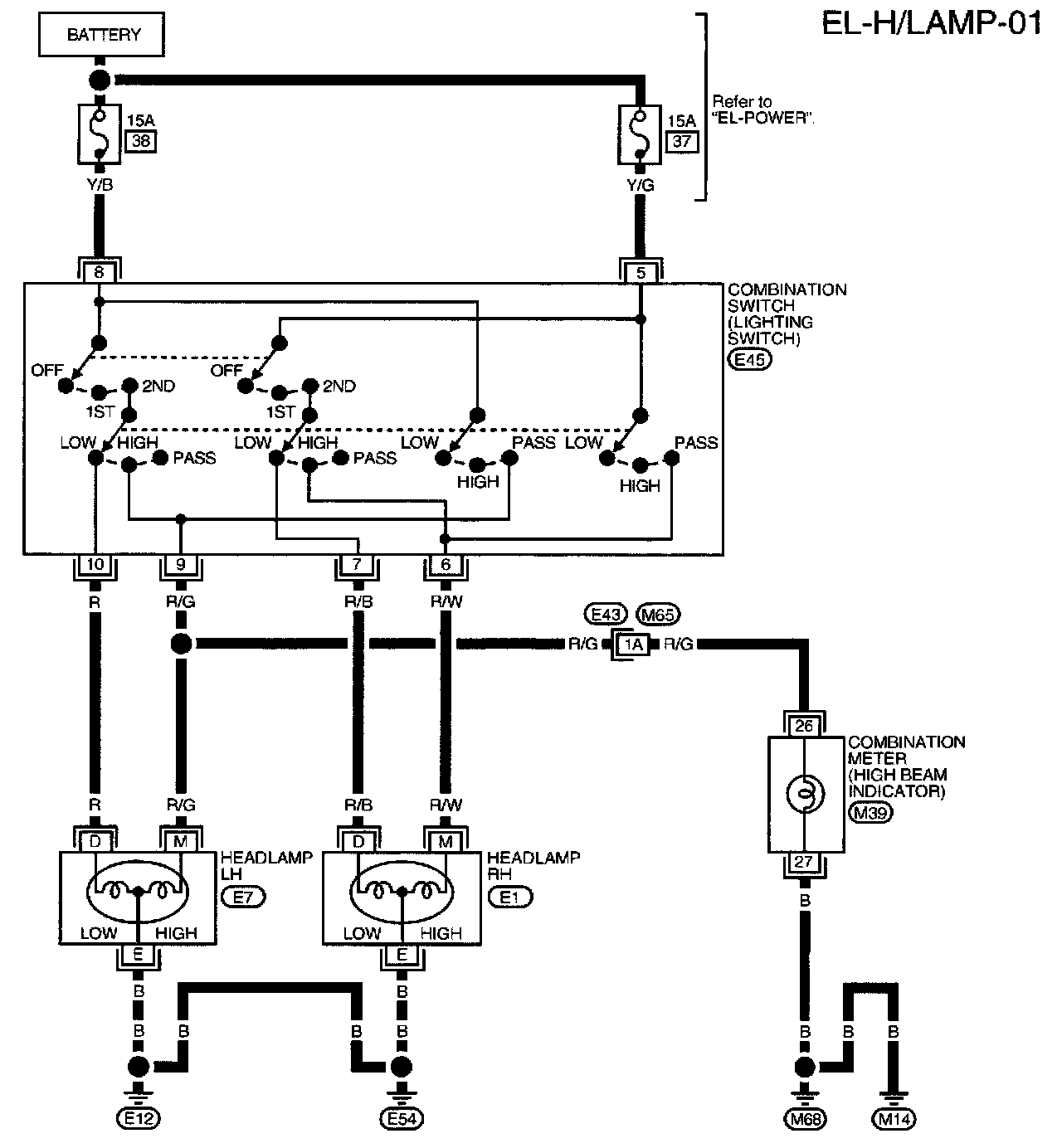

EL-H/LAMP-01:
Circuit Diagram

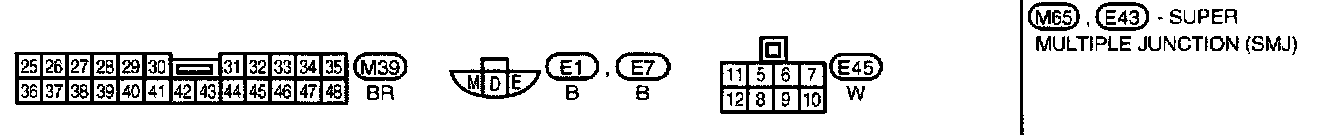

Circuit Connectors
Connector Views:
M65, E43 Super Multiple Junction (SMJ) Terminal Arrangement
