Before VIN 343314

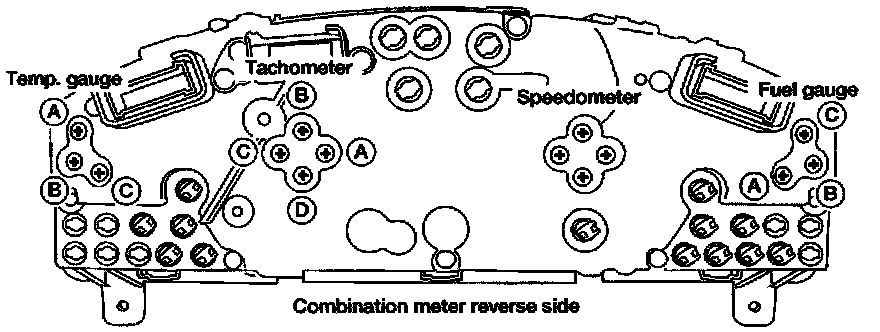

METER/GAUGE RESISTANCE CHECK
Check resistance between meter/gauge installation screws.

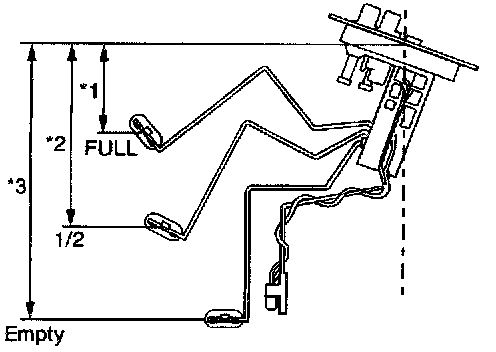

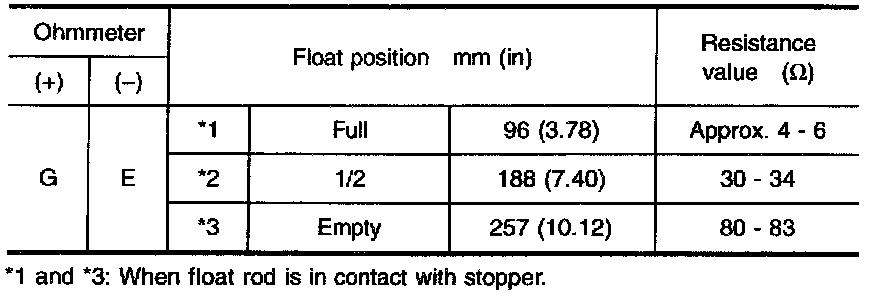

FUEL TANK GAUGE UNIT CHECK
Check the resistance between fuel tank gauge unit terminals G and E.

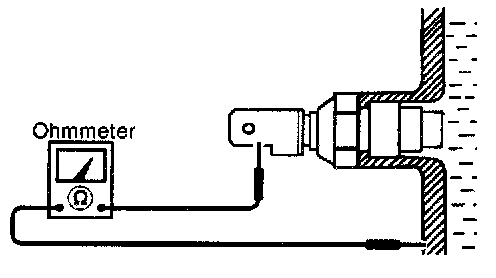

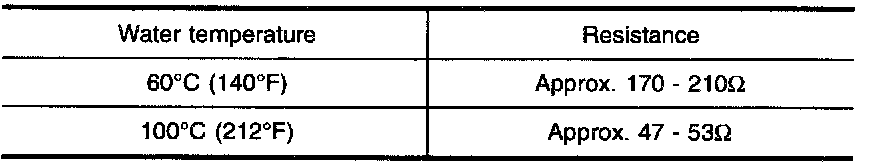

THERMAL TRANSMITTER CHECK
Check the resistance between thermal transmitter terminal 1 and body ground.

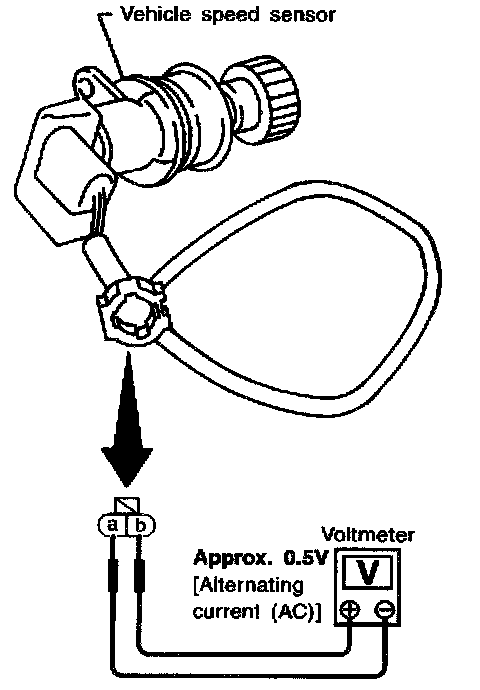

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage across a and b.
