DIAGNOSIS FUNCTION
- Odo/trip meter segment can be checked in diagnosis mode.
- Meters/gauges can be checked in diagnosis mode.

HOW TO ALTERNATE DIAGNOSIS MODE
1. Turn ignition switch to ON and change odo/trip meter to "TRIP A" or "TRIP B".
2. Turn ignition switch to OFF.
3. Turn ignition switch to ON when pressing and holding odo/trip meter switch.
4. Confirm that trip meter indicates "000.0".
5. Push odo/trip meter switch more than 3 times within 5 seconds.

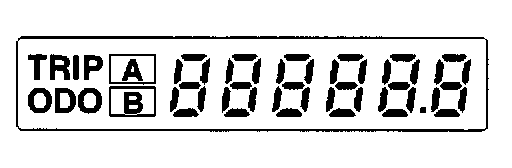

6. All odo/trip meter segments should be turned on.

NOTE: If some segments are not turned on, unified meter control unit should be replaced.

At this point, the unified control meter is in diagnosis mode.

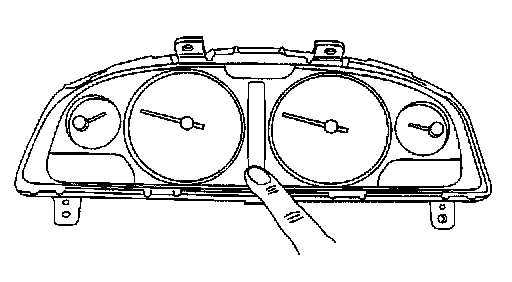

7. Push odo/trip meter switch. Indication of each meter/gauge should be as shown in the figure while pushing odo/trip meter switch if it is not malfunctioning.

NOTE: It takes about 1 minute for indication of fuel gauge to become stable.
