Beginning With VIN 343314

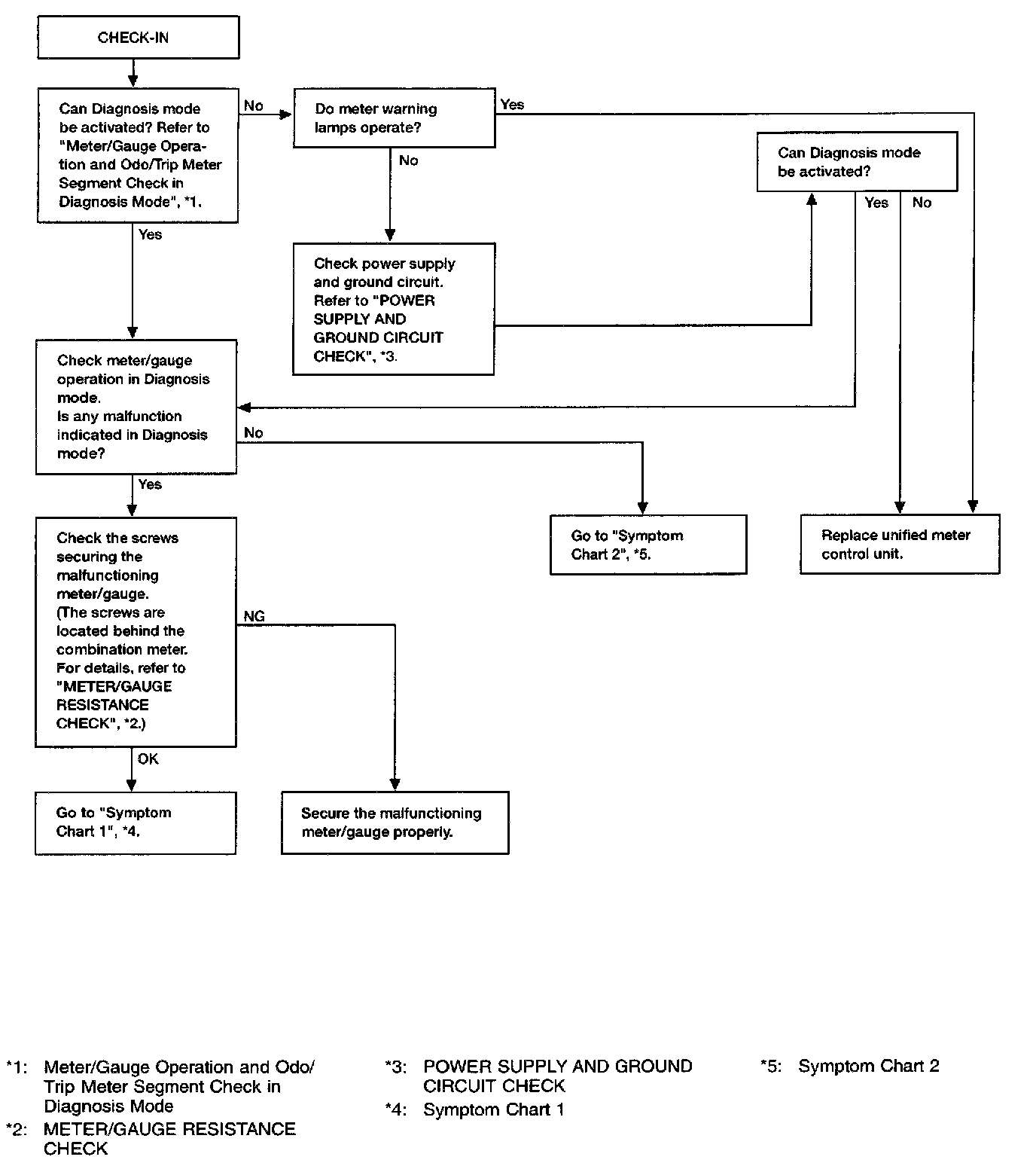

PRELIMINARY CHECK

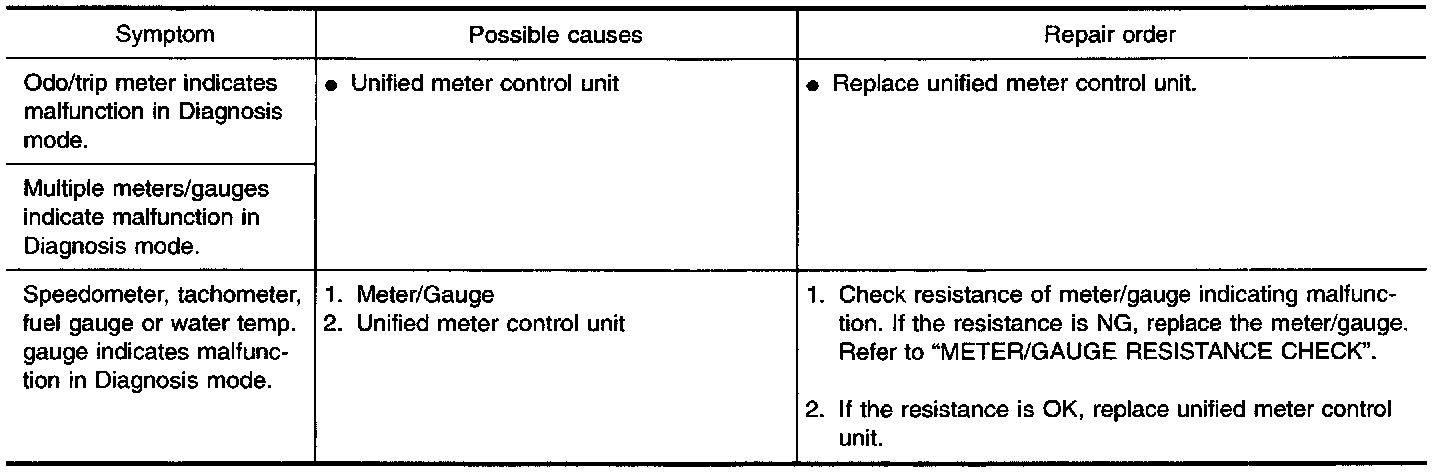

SYMPTOM CHART 1 (Malfunction is indicated in diagnosis mode)

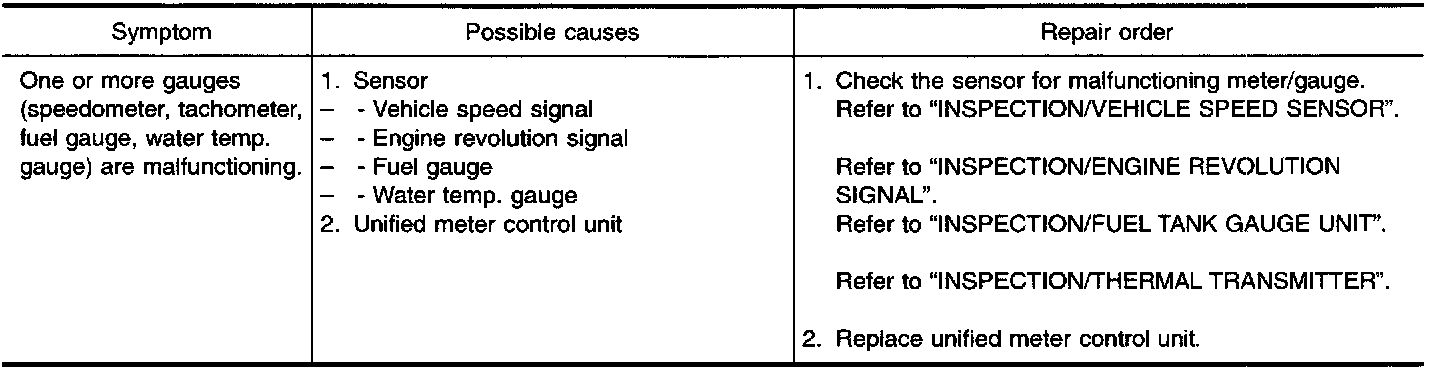

SYMPTOM CHART 2 (No Malfunction is indicated in diagnosis mode)
Before Starting trouble diagnoses, perform PRELIMINARY CHECK.

POWER SUPPLY AND GROUND CIRCUIT CHECK

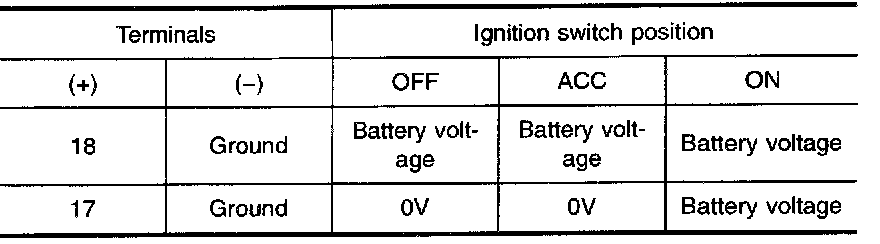

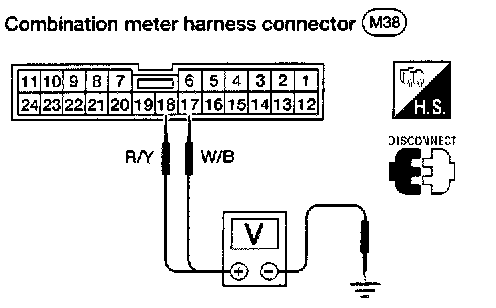

Power Supply Circuit Check
If NG, check the following.
- 7.5 A fuse [No. 28, located in fuse block (J/B)]
- 10 A fuse [No. 11, located in fuse block (J/B)]
- Harness for open or short between fuse and combination meter.

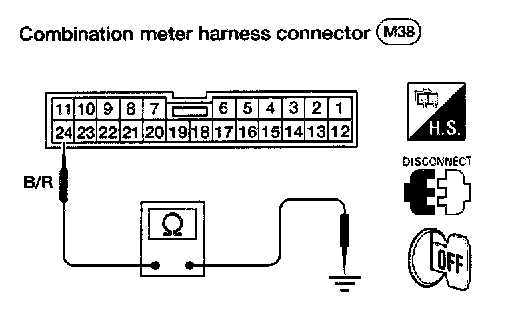

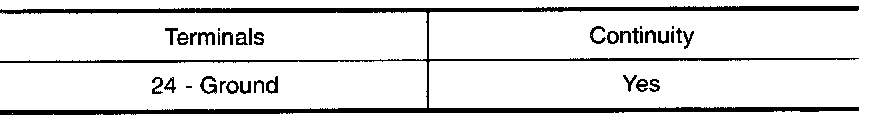

Ground Circuit Check

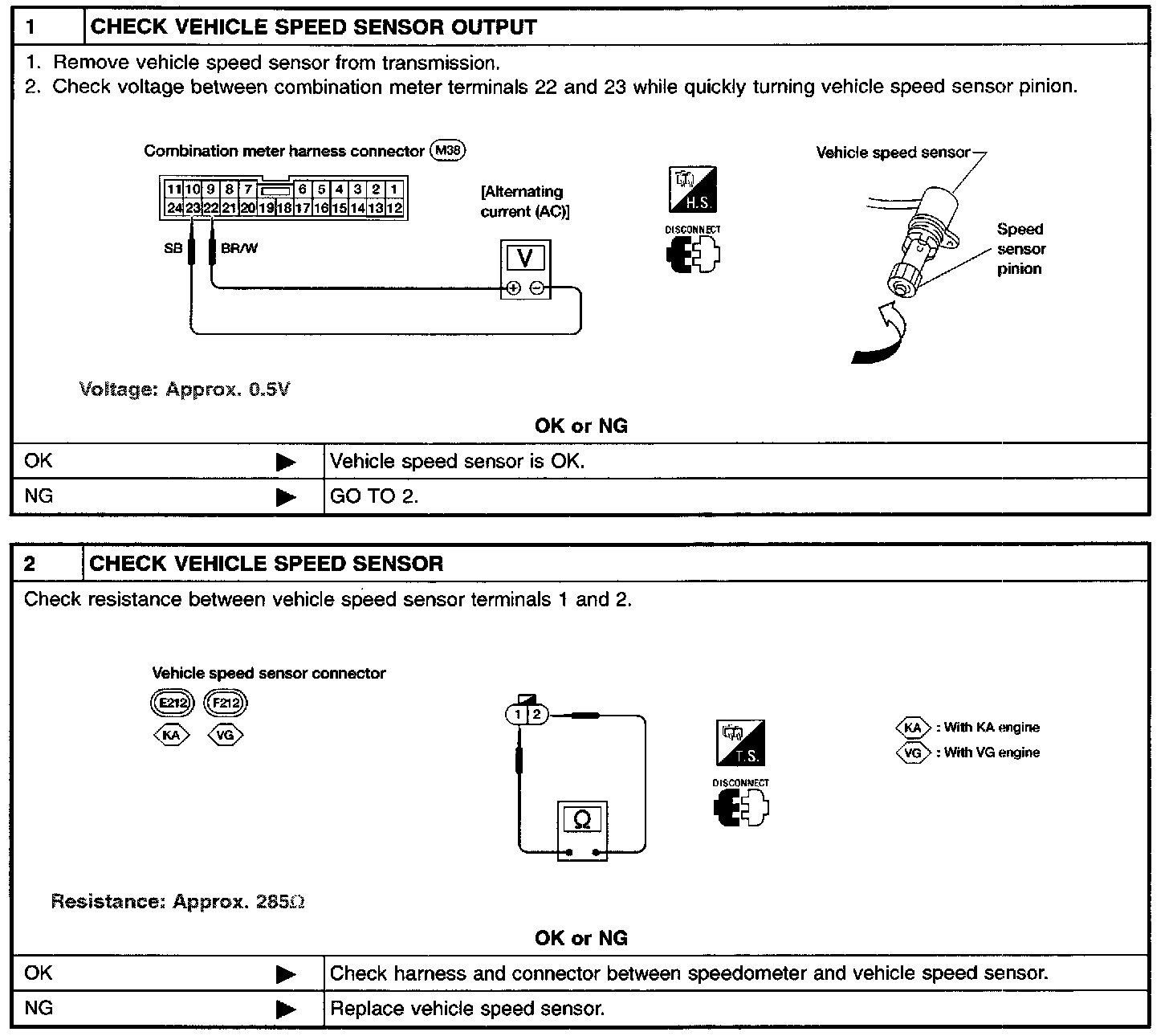

INSPECTION/VEHICLE SPEED SENSOR

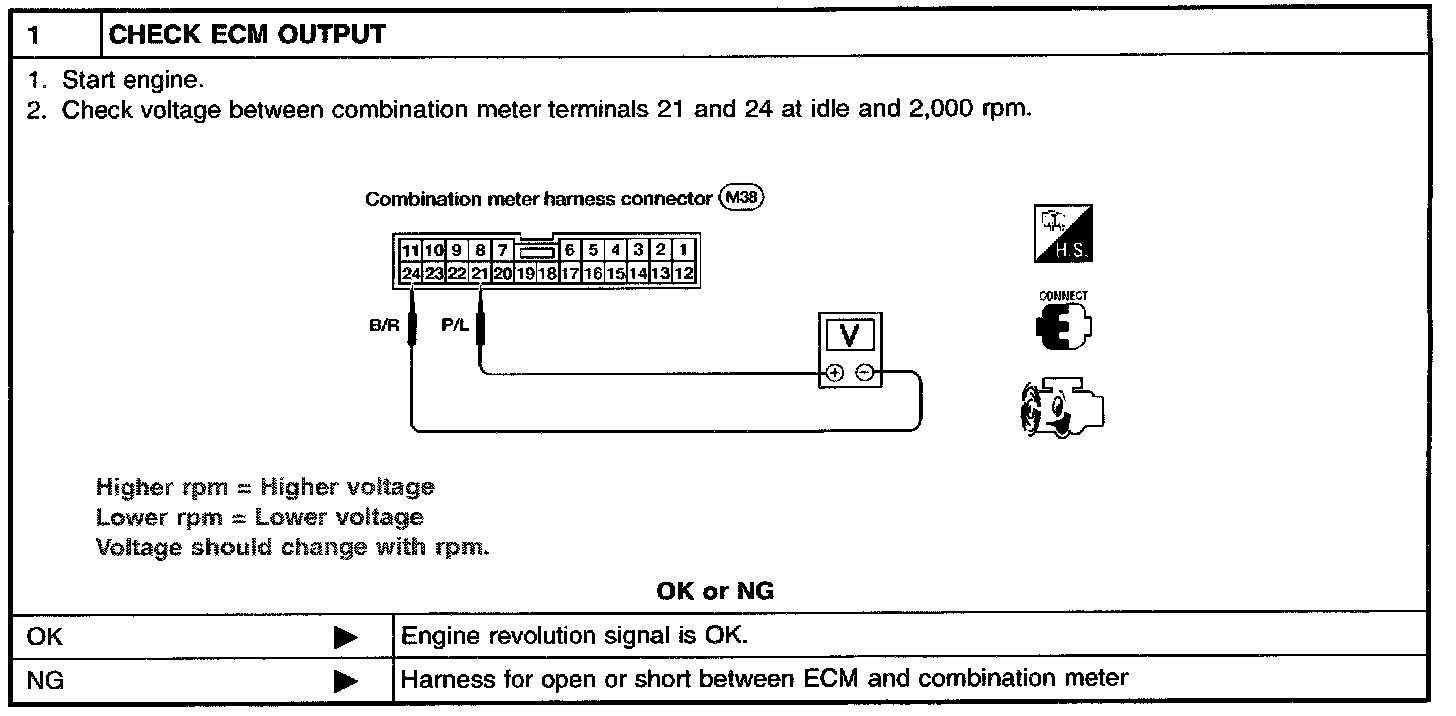

INSPECTION/ENGINE REVOLUTION SIGNAL

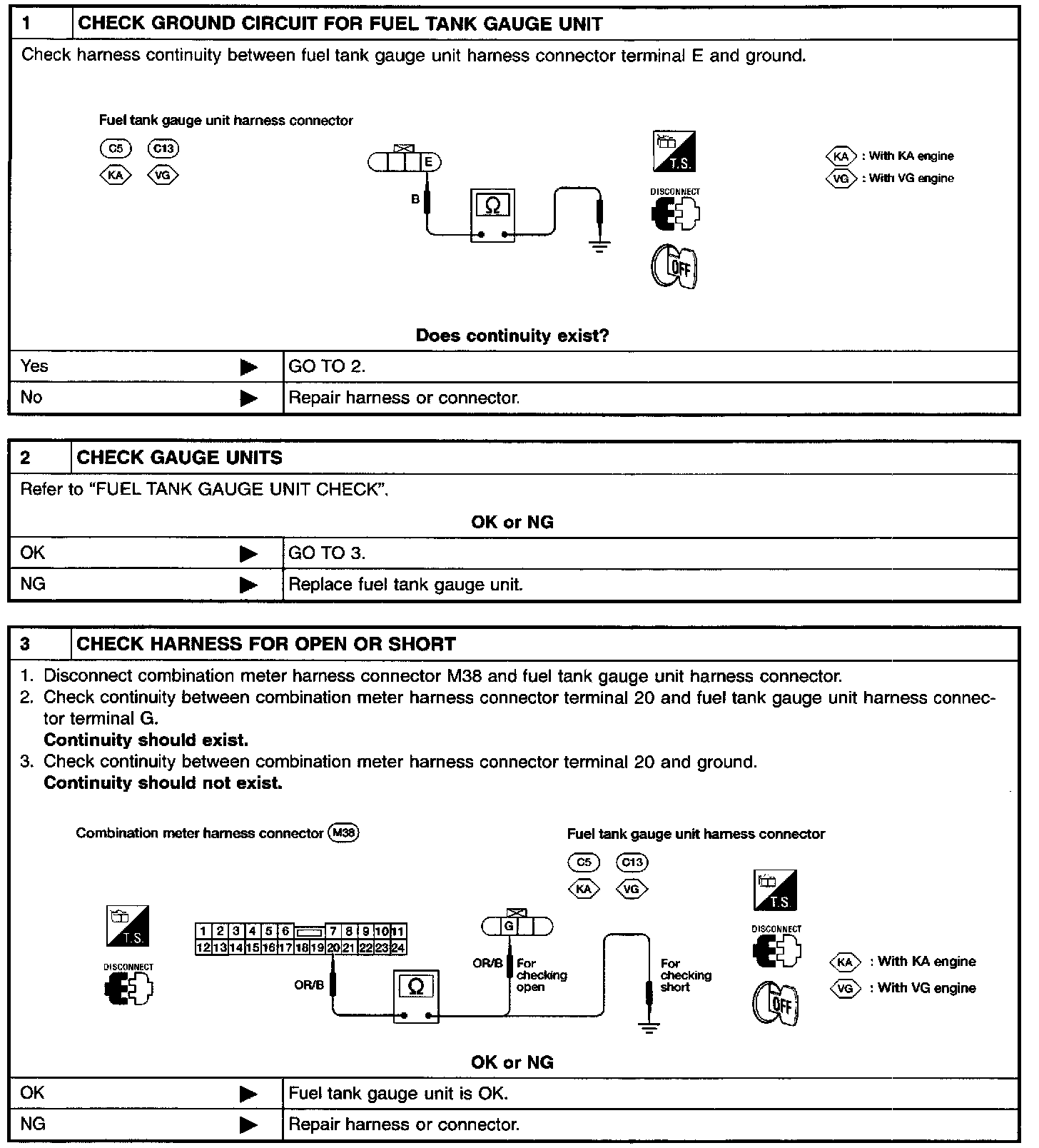

INSPECTION/FUEL TANK GAUGE UNIT

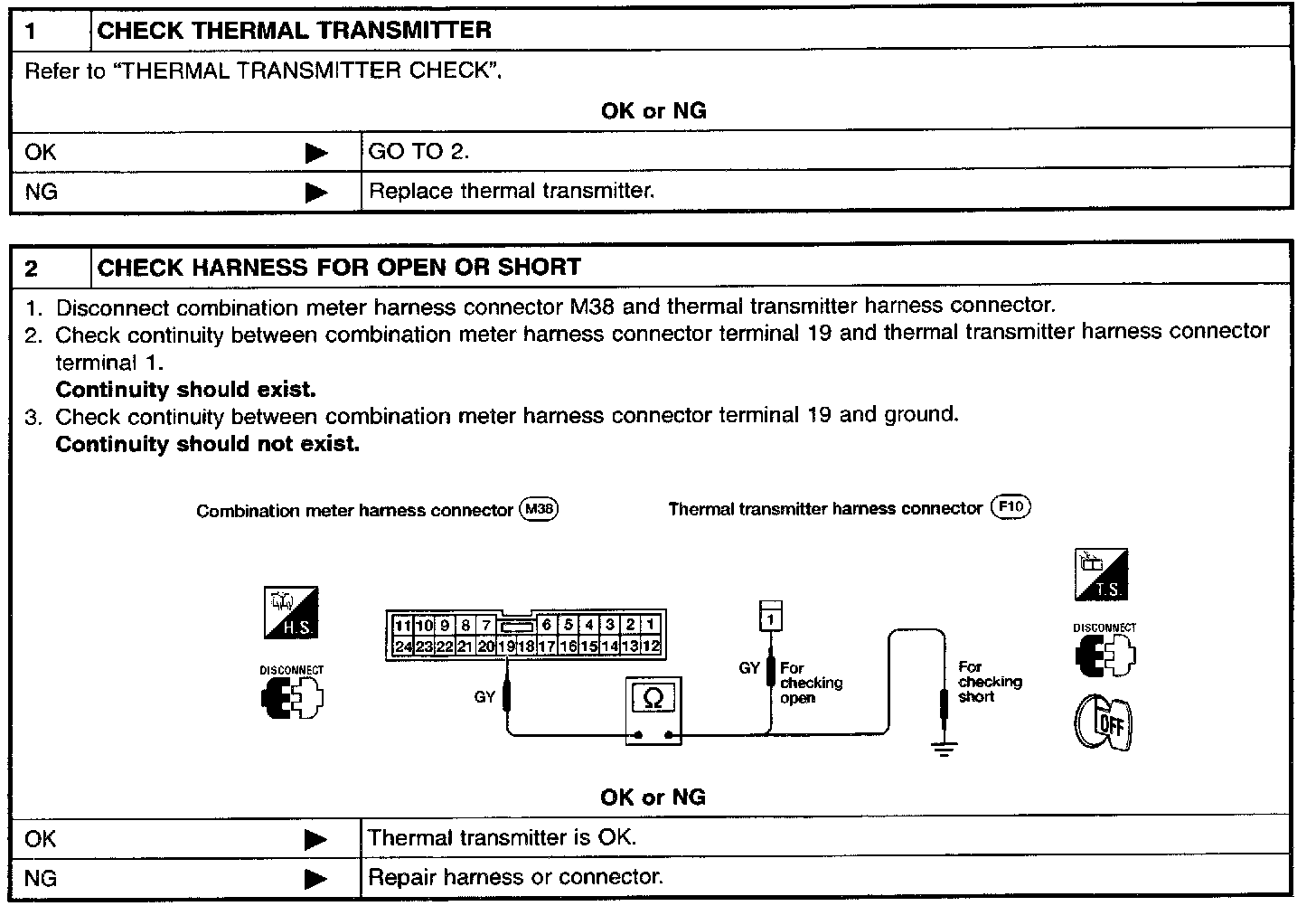

INSPECTION/THERMAL TRANSMITTER
