Models Without Power Door Locks
Symptom Chart

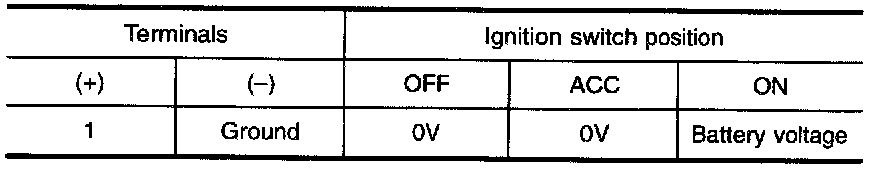

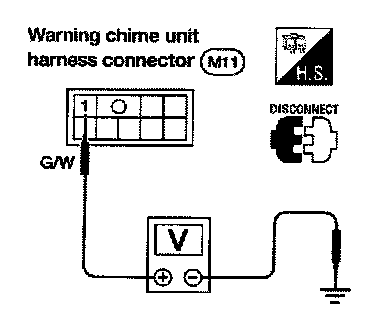

Main power supply circuit check

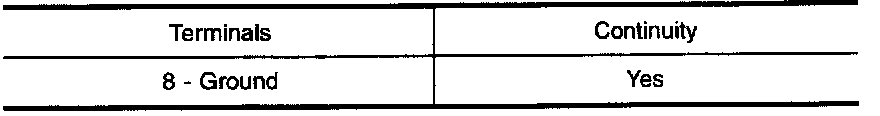

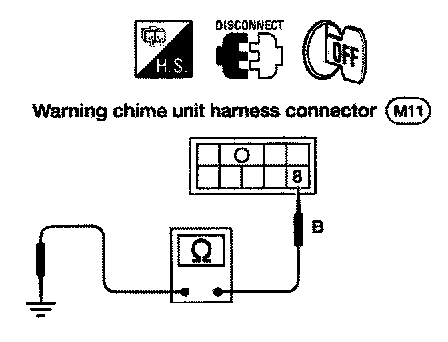

Ground Circuit Check

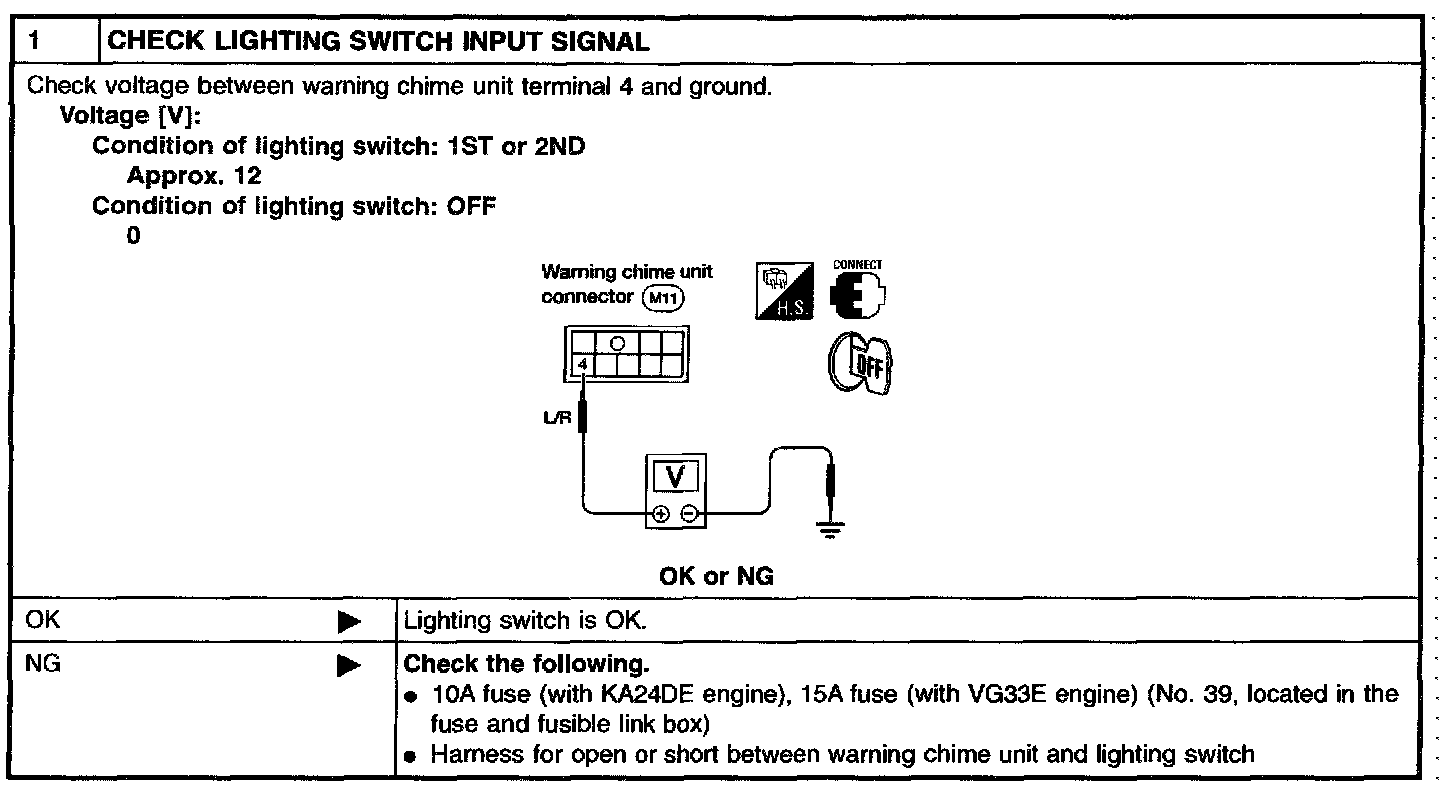

LIGHTING SWITCH INPUT SIGNAL CHECK

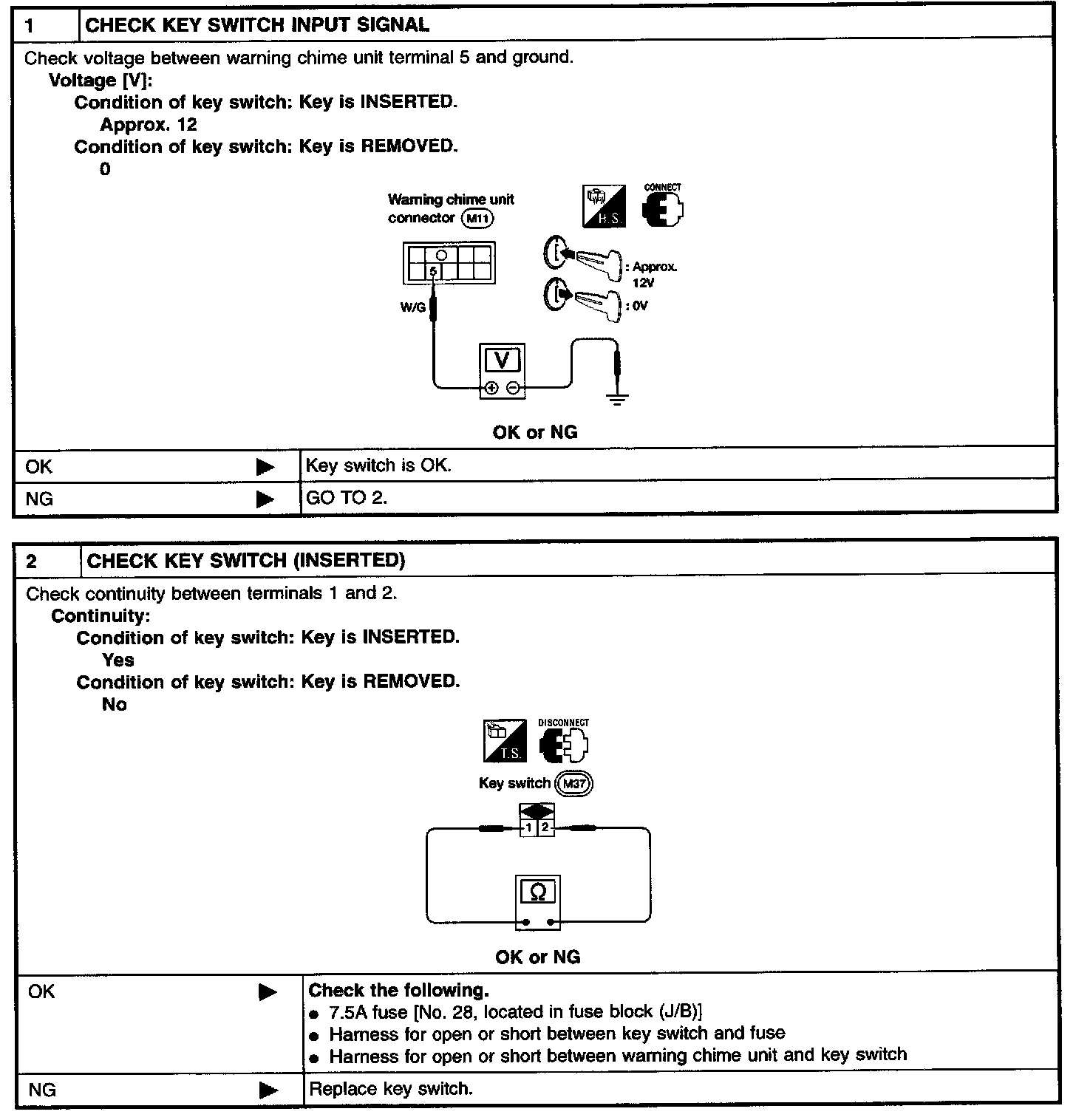

KEY SWITCH (INSERTED) CHECK

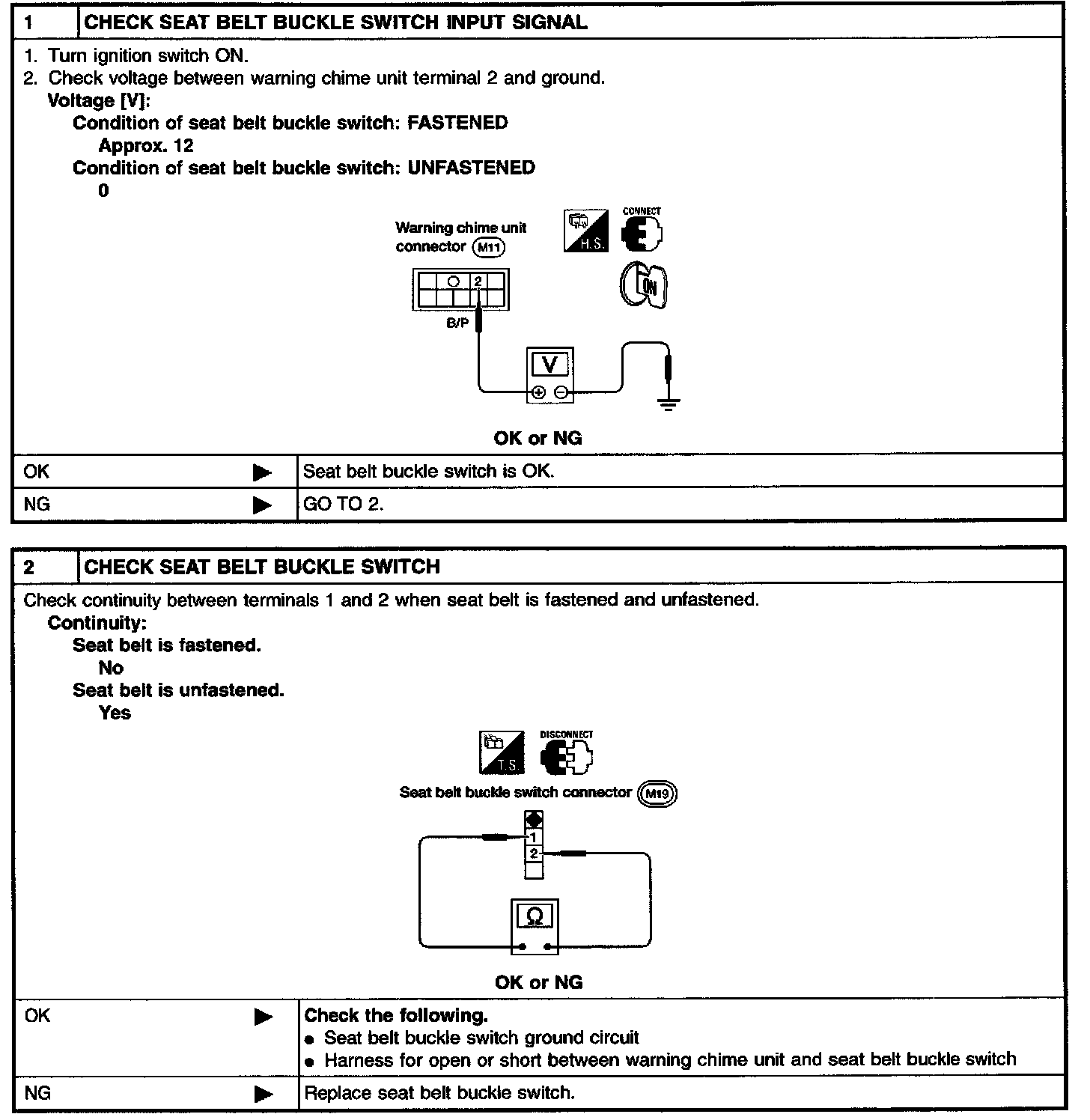

SEAT BELT BUCKLE SWITCH CHECK

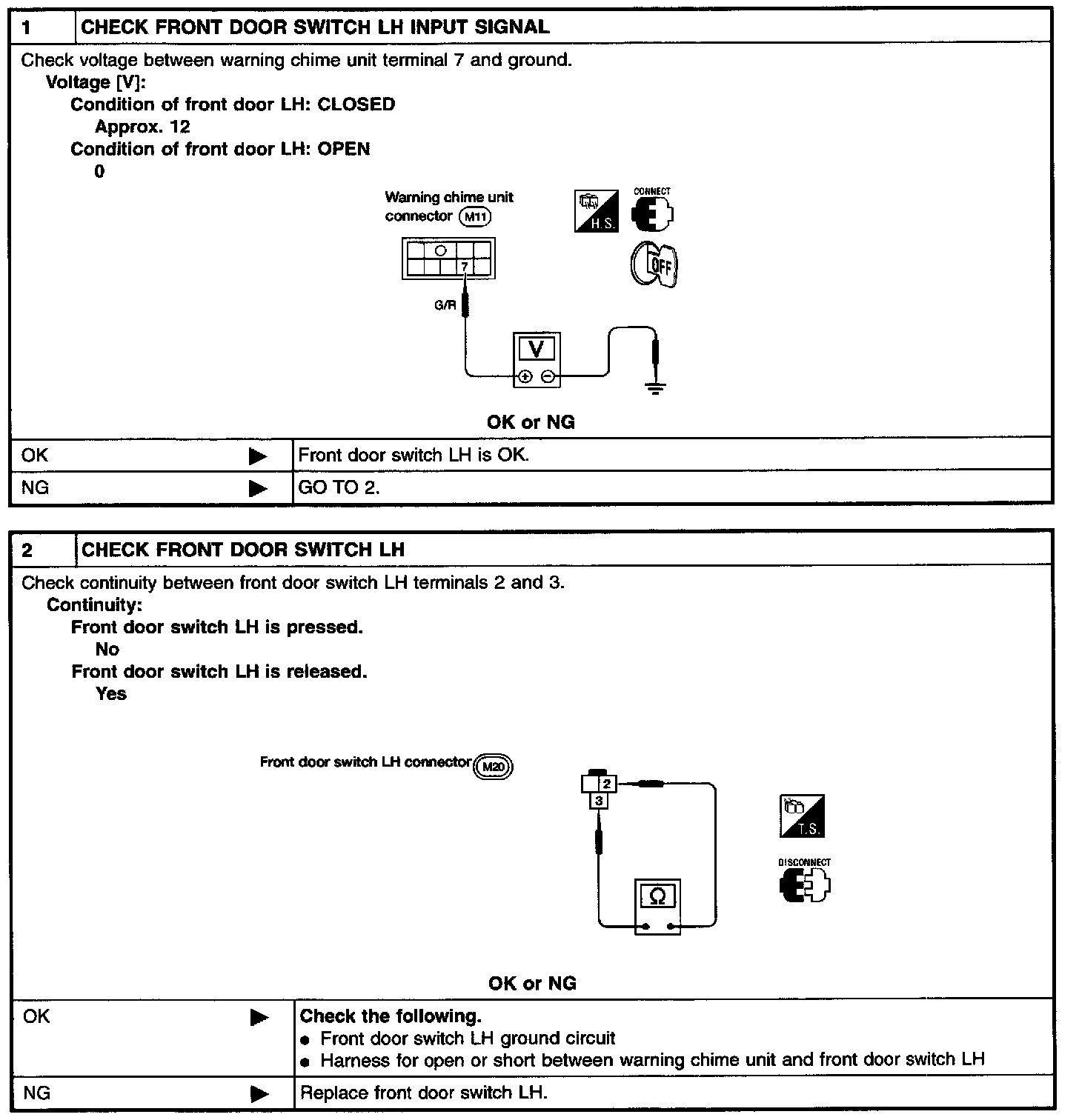

FRONT DOOR SWITCH LH CHECK
Symptom Chart
Main power supply circuit check
Ground Circuit Check
LIGHTING SWITCH INPUT SIGNAL CHECK
KEY SWITCH (INSERTED) CHECK
SEAT BELT BUCKLE SWITCH CHECK
FRONT DOOR SWITCH LH CHECK
