Before VIN 343314

INSPECTION

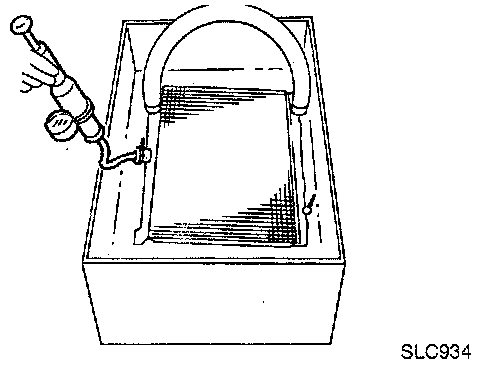

1. Apply pressure with Tool.
Specified pressure value: 157 kPa (1.6 kg/cm2, 23 psi)

WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp. Attach a hose to the oil cooler as well. (A/T model only)





2. Check for leakage.
