Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft >> Beginning With VIN #343314

Beginning With VIN #343314

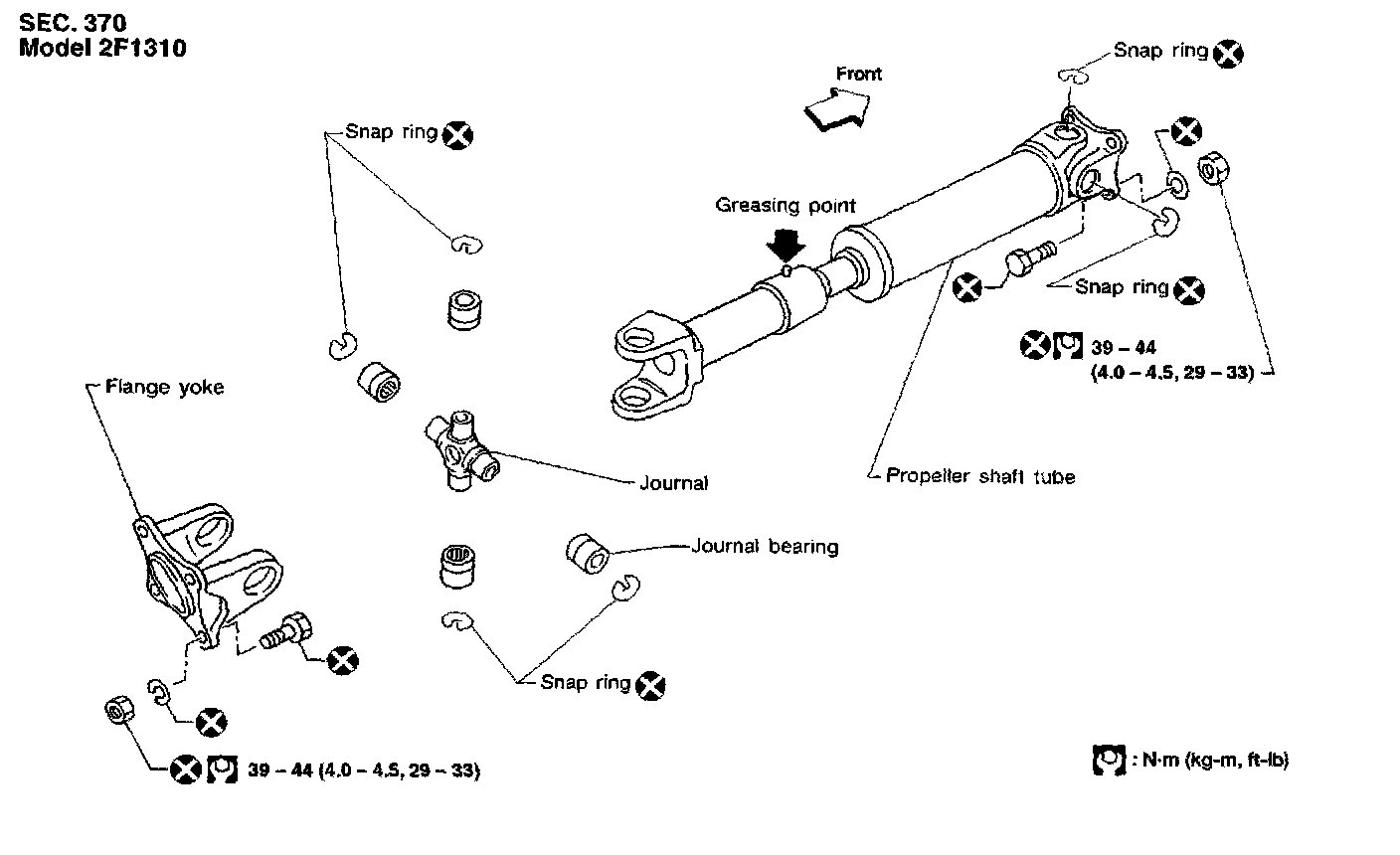

FRONT PROPELLER SHAFT

REAR PROPELLER SHAFT

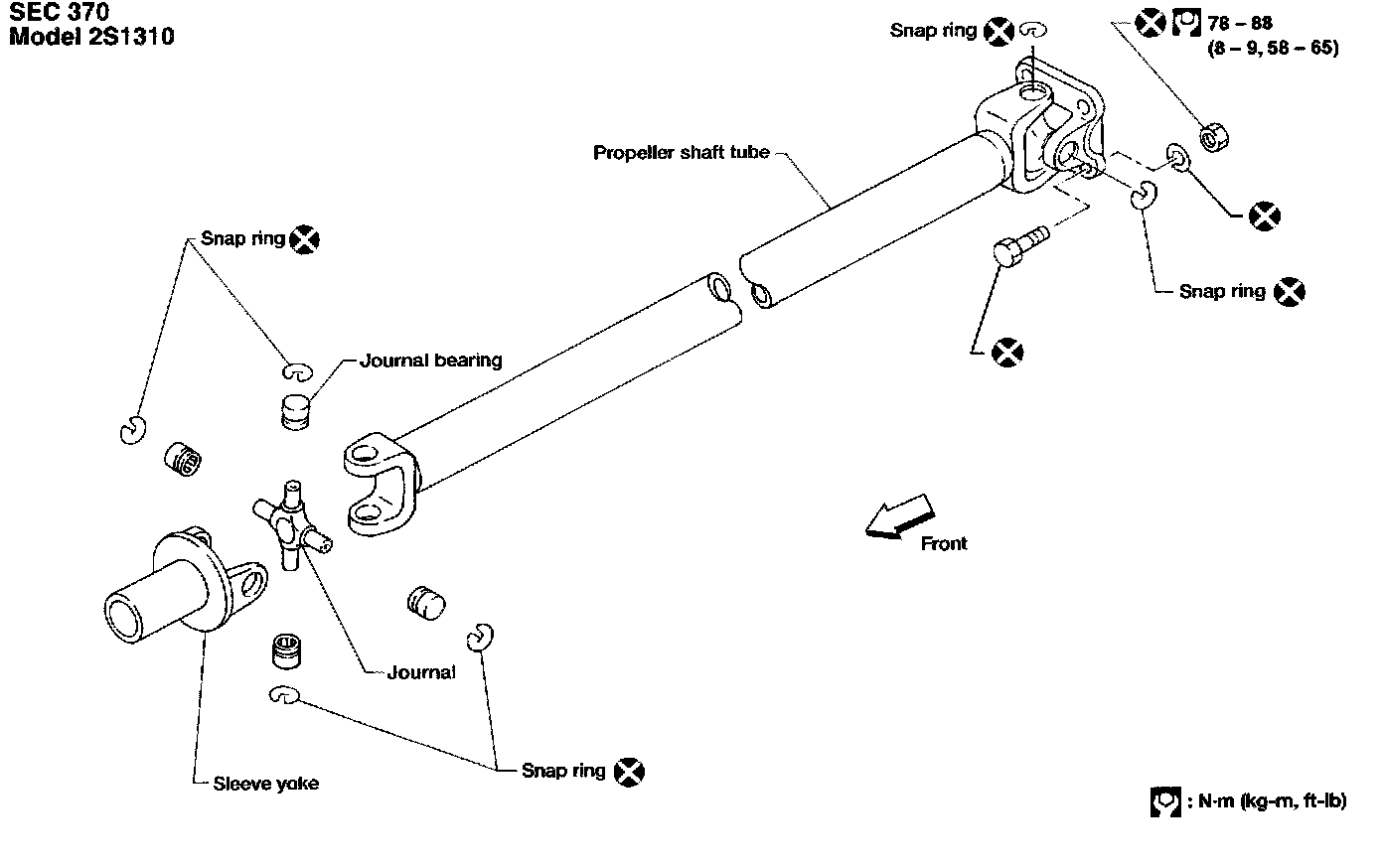

Model 2S1310

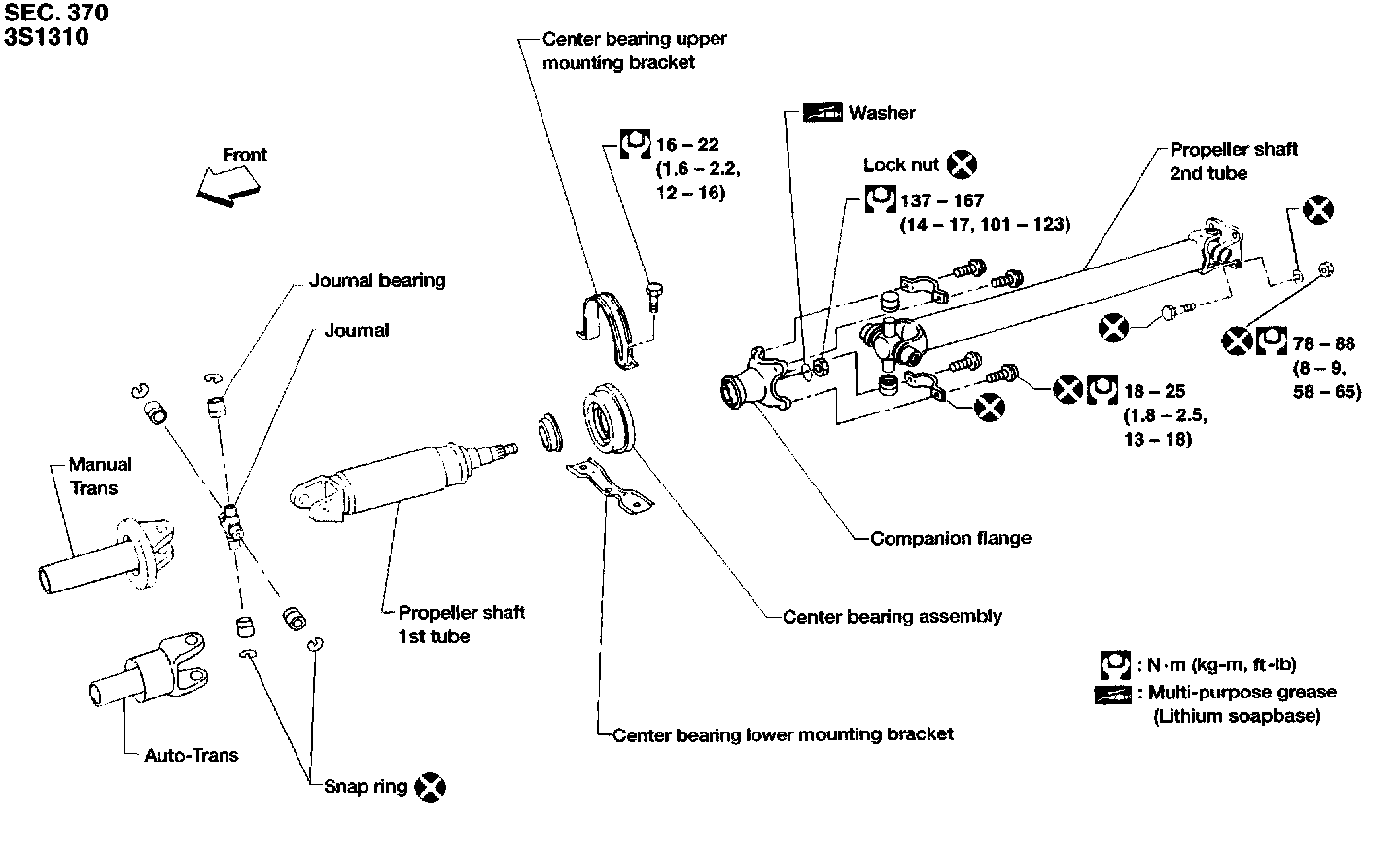

Model 3S1310
