Home >> Nissan-Datsun Truck >> 2000 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Drive/Propeller Shaft >> Before VIN #343314

Before VIN #343314

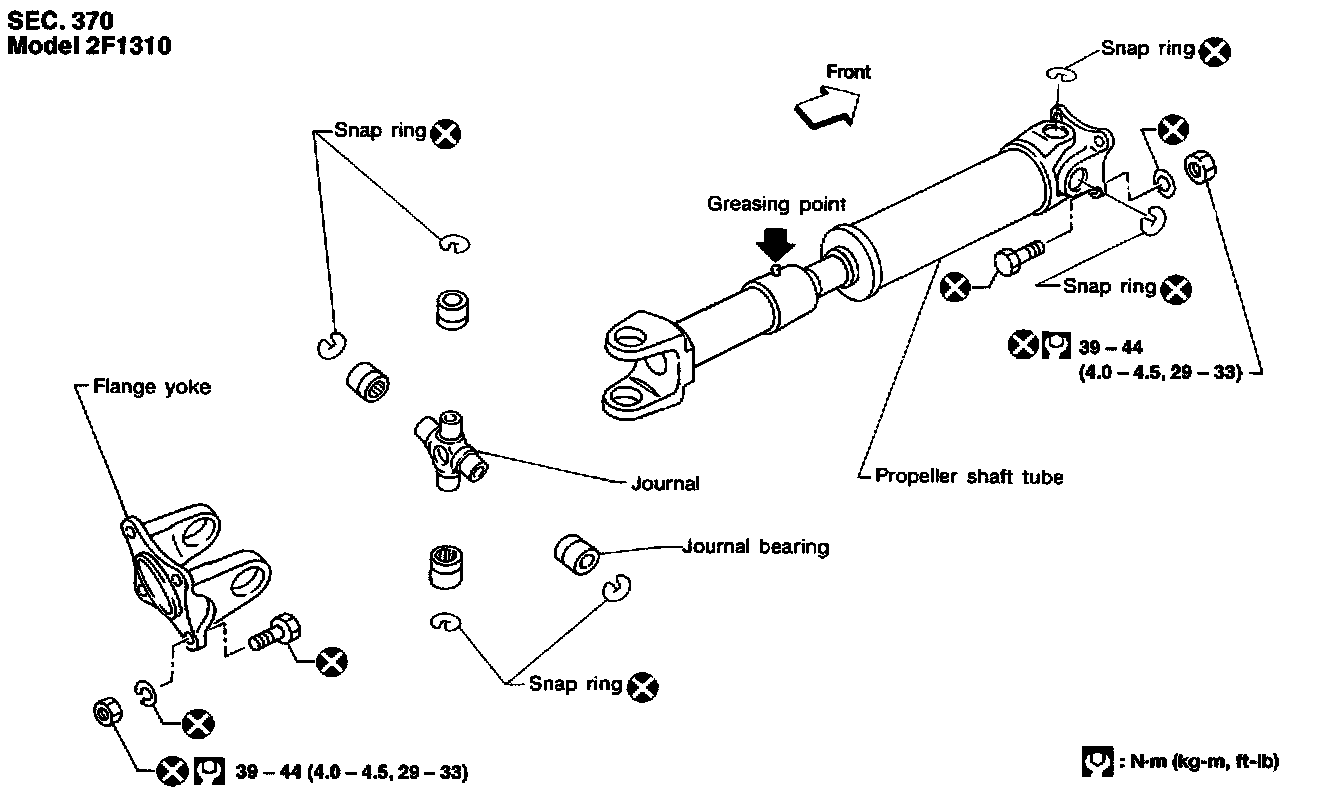

FRONT PROPELLER SHAFT

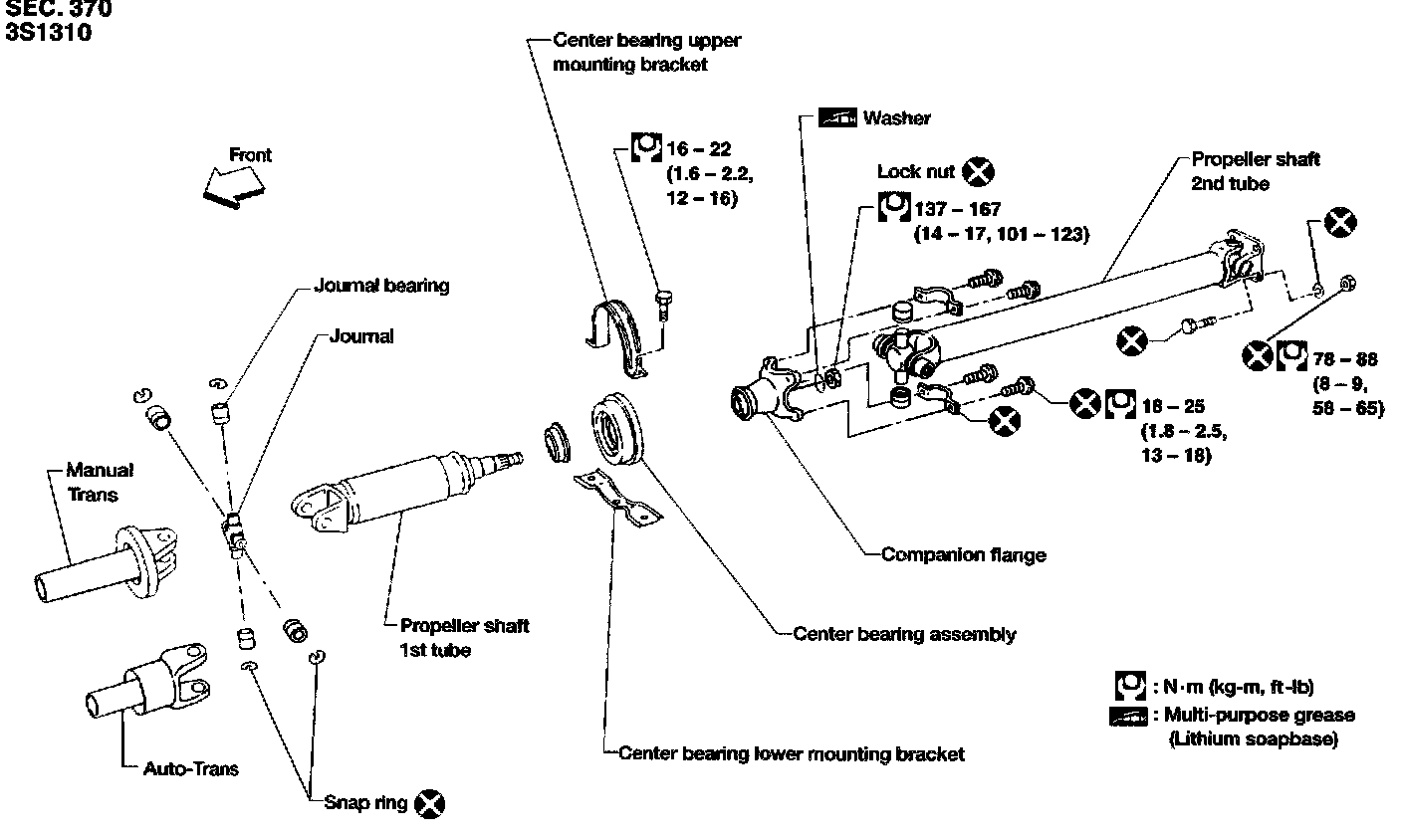

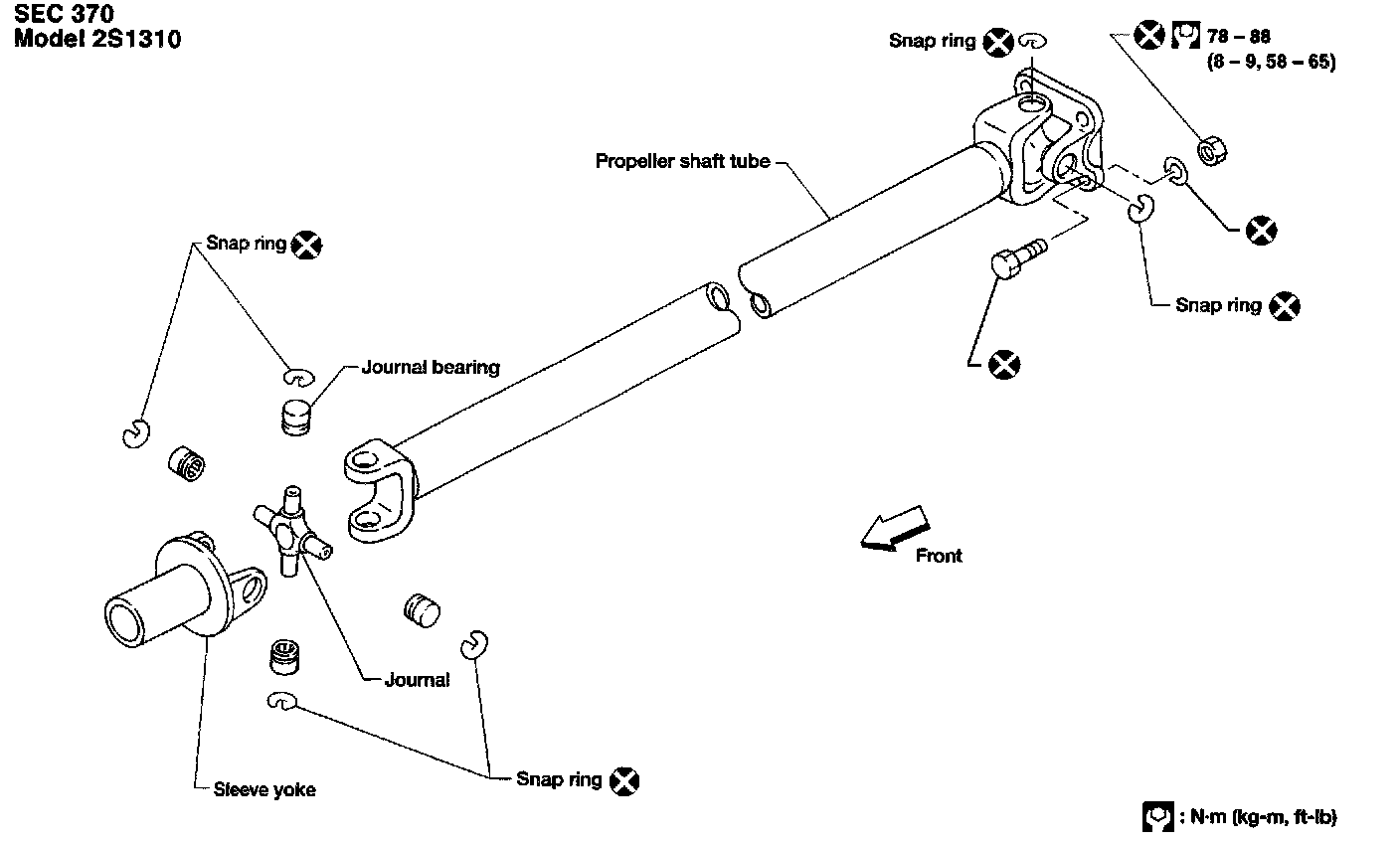

REAR PROPELLER SHAFT
